SCAG STT61V-750KA Zero Turn Lawn Mowers

STT61V-27CH, 61" Velocity Plus™ Cutter Deck, 27hp Kohler air-cooled engine. STT61V-750KA, 61" Velocity Plus™ Cutter Deck, FD750D Kawasaki liquid-cooled engine.

High-Strength Steel Frame

SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE

Heavy-duty, single-tube, steel main-frame construction delivers superior strength and ensures years of trouble-free service. The front caster-wheel weldments are replaceable.

Industrial-Grade Hydraulic System

SPEEDS UP TO 12 MPH

Dual Hydro-Gear pumps (12 cc) and Parker wheel motors (14.5 ci) deliver dependable power. Pump shock valves ensure reliability and long life. Cooling fans help maintain safe operating temperatures.

Ease of Maintenance

MORE UPTIME

Flip-up access panels, an unrestricted engine compartment, easy-to-reach grease zerks and many more features make servicing the Tiger Cat® simple, so you can be in the shop less and on the job more.

Suspension Seat

RIDE IN COMFORT

Torsion-spring suspension seat adjusts to each operator’s weight to provide superior comfort. Seat features full padding, forward/rearward adjustment, a high back, adjustable armrests and an adjustable back angle. The 4-point, rubber iso-mounting provides even more shock absorption, maximizing your comfort, hour after hour.

Tiger Eye Advanced Monitoring System

KEEP A REAL-TIME "EYE" ON IMPORTANT SYSTEM FUNCTIONS

Depending on the mower model and engine selection, the Tiger Eye™ Advanced Monitoring System monitors a wide variety of systems in real-time, giving you valuable information in just a glance, right from the operator’s seat.

• Total Fuel Capacity
• 9.5 gallons
• Drive Tires
• 24" x 9.5"-12" (48" and 52")
• 24" x 12"-12" (61")
• Caster Tires
• 13" x 6.5"-6", flat-free
• Seat
• 4-point iso-mounted mid-back mounted on operator-suspension platform
• Drive System Type
• Dual Pump and Motor
• Pumps
• Hydro-Gear 12 cc
• Motors
• Parker 14.5 ci
• Forward Ground Speed
• 12 mph
• Reverse Ground Speed
• 5 mph
• Parking Brake
• Foot-operated pedal
•
• Cutting Widths
• 48", 52" and 61"
• Type
• Velocity Plus™
• Cutting Height
• 1" to 5" in .25" increments
• Deck Lift
• Adjustable foot-operated pedal
• Construction
• Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles.
• Spindles
• Cast-iron housing with tapered roller bearings.
• Blade Engagement
• Ogura GT3.5 (250 ft lb)
• Adjustable air-gap for extended life.

Description:

2023 Scag Cheetah II 61 commercial zero turn mower! 61" Velocity Plus cutter deck. 38HP Kawasaki EFI engine. Operator suspension system. Up to 16MPH forward ground speed! Duel fuel tanks (15 gallon total capacity). Tiger Eye Advanced monitoring system. Double tube steel main frame. Heavy duty blade drive spindles. Easily adjustable cutting heights. Custom cut baffle. Flat free front caster tires. 2 year commercial warranty OR 3 year/500hr non commercial warranty.

Specification:

Category Specific

Cutting Width 61 in

Powertrain

Horsepower 38 HP

Engine

Fuel Type Gas

Description:

Scag Tractor has one of the largest inventories of Belt Drive Walkbehind Parts in the country. You will find blades, pulleys, clutches, tires, spindles, and many more parts to fit your SW36-13KA. Need help finding the right parts, try using our free Scag SW36-13KA Part Diagrams. You can count on Louisville Tractor to deliver high quality OEM and replacement parts.

General

Manufacturer SCAG

Model SW36-13KA

Serial Number 8031080

Condition Used

Category Specific

Cutting Width 36 in

Powertrain

Horsepower 13 HP

DESCRIPTION

61" Velocity Plus™ Cutter Deck, 38 HP Kohler® Command PRO® EFI - electronic fuel injection

FEATURES

• The envy of the neighborhood - 48", 52" or 61" Cutting Width: The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge on 48", 52" and 61" widths. An Advantage Cutter Deck is featured on 32" and 36" widths.
• Adjustable Operator Platform - Experience an Unmatched, Ultra-Comfortable Ride: The spacious operator platform delivers a smooth ride and reduces operator fatigue. Adjustable suspension spring can be moved forward or backward, with, or without, the spacer plate installed to meet the operator's comfort preference. Extra-large, extra-thick operator comfort cushion ensures comfortable operation, hour after hour.
• Cutter-Deck Lift System - Convenient, Spring-Assisted Lever: Cutter deck can be lifted and locked into transport position from the operator's station. Cutting heights are easily set by placing the tethered pin at the desired height.
• Ogura PTO Clutch Brake - Strong, Adjustable Clutch for Long Life: Provides excellent starting and stopping power for the cutter deck and an adjustable air gap for long life.
• High-Strength Steel Frame - Solid Design for Years of Dependable Service: Heavy-duty, single-tube, steel main-frame construction delivers superior strength and ensures years of trouble-free service. The front caster-wheel weldments are replaceable.

SPECIFICATIONS

• Description: 61" Velocity Plus™ Cutter Deck, 38 HP Kohler® Command PRO® EFI - electronic fuel injection
• Total Fuel Capacity: 5 gallons (32"); 6.75 gallons (36"); 8 gallons (48", 52", and 61")
• Drive Tires: 20" x 6.5"-10" (32"); 20" x 8"-10" (36"); 24" x 9.5"-12" (48" and 52"); 24" x 12"-12" (61")
• Caster Tires: 11" x 4"-5" (32" and 36"); 13" x 5"-6" (48" and 52"); 13" x 6.5"-6" (61")
• Seat: Extra-large comfort cushion
• Drive System Type: Dual Pump and Motor
• Pumps: Hydro-Gear 10 cc (32" and 36"); Hydro-Gear 12 cc (48", 52", and 61")
• Motors: Parker 12 ci (32" and 36"); Parker 14 ci (48", 52" and 61")
• Forward Ground Speed: 8.5 mph (32" and 36"); 10.5 mph (48", 52" and 61")
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• Cutting Widths: 32", 36", 48", 52" and 61"
• Type: Advantage (32" and 36"); Velocity Plus™ (48", 52", and 61")
• Cutting Height: 1.5" to 4.5" in .25" increments
• Deck Lift: Hand lever
• Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles.; 32" model features dual-plate.
• Spindles: Cast-iron housing with tapered roller bearings.
• Blade Engagement: Ogura GT2.5 (150 ft lb) - (32", 36", 48" and 52"); Ogura GT3.5 (250 ft lb) - (61"); Adjustable air-gap for extended life.

DIMENSIONS

• Length: 72.75"
• Tracking Width: 48"
• Width (chute down): 73.5"
• Width (chute in transport position): 62.75"
• Height: 47.25"
• Weight: 1,127-1,173 lb

ACCESSORIES

• 2-Bag V-Ride II Spindle Driven Grass Catcher
• Fabric Bag Grass Catcher
• Hurricane Plus™ Mulch System
• Hurricane Mulch System
• Mulch Plate
• OCDC - Operator-Controlled Discharge Chute
• Light Kit
• Chrome Wheel Covers
• Air Filter Monitor
• Blade Buddy
• 12-Volt Accessory Outlet

Description:

61" Velocity Plus™ Cutter Deck, 40 HP Briggs Vanguard™ BIG BLOCK™ EFI - electronic fuel injection

FEATURES

• The envy of the neighborhood - 48", 52" or 61" Cutting Width: The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge on 48", 52" and 61" widths. An Advantage Cutter Deck is featured on 32" and 36" widths.
• Adjustable Operator Platform - Experience an Unmatched, Ultra-Comfortable Ride: The spacious operator platform delivers a smooth ride and reduces operator fatigue. Adjustable suspension spring can be moved forward or backward, with, or without, the spacer plate installed to meet the operator's comfort preference. Extra-large, extra-thick operator comfort cushion ensures comfortable operation, hour after hour.
• Cutter-Deck Lift System - Convenient, Spring-Assisted Lever: Cutter deck can be lifted and locked into transport position from the operator's station. Cutting heights are easily set by placing the tethered pin at the desired height.
• Ogura PTO Clutch Brake - Strong, Adjustable Clutch for Long Life: Provides excellent starting and stopping power for the cutter deck and an adjustable air gap for long life.
• Ease of Maintenance - More Uptime: Easy-to-remove covers, an unrestricted engine compartment, easy-to-reach grease Zerks and many more features make servicing the V-Ride™ II simple, so you can be in the shop less and on the job more.

SPECIFICATIONS

• Description: 61" Velocity Plus™ Cutter Deck, 40 HP Briggs Vanguard™ BIG BLOCK™ EFI - electronic fuel injection
• Total Fuel Capacity: 5 gallons (32"); 6.75 gallons (36"); 8 gallons (48", 52", and 61")
• Drive Tires: 20" x 6.5"-10" (32"); 20" x 8"-10" (36"); 24" x 9.5"-12" (48" and 52"); 24" x 12"-12" (61")
• Caster Tires: 11" x 4"-5" (32" and 36"); 13" x 5"-6" (48" and 52"); 13" x 6.5"-6" (61")
• Seat: Extra-large comfort cushion
• Drive System Type: Dual Pump and Motor
• Pumps: Hydro-Gear 10 cc (32" and 36"); Hydro-Gear 12 cc (48", 52", and 61")
• Motors: Parker 12 ci (32" and 36"); Parker 14 ci (48", 52" and 61")
• Forward Ground Speed: 8.5 mph (32" and 36"); 10.5 mph (48", 52" and 61")
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• Cutting Widths: 32", 36", 48", 52" and 61"
• Type: Advantage (32" and 36"); Velocity Plus™ (48", 52", and 61")
• Cutting Height: 1.5" to 4.5" in .25" increments
• Deck Lift: Hand lever
• Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles.; 32" model features dual-plate.
• Spindles: Cast-iron housing with tapered roller bearings.
• Blade Engagement: Ogura GT2.5 (150 ft lb) - (32", 36", 48" and 52"); Ogura GT3.5 (250 ft lb) - (61"); Adjustable air-gap for extended life.

DIMENSIONS

• Length: 72.75"
• Tracking Width: 48"
• Width (chute down): 73.5"
• Width (chute in transport position): 62.75"
• Height: 47.25"
• Weight: 1,127-1,173 lb

ACCESSORIES

• 2-Bag V-Ride II Spindle Driven Grass Catcher
• Fabric Bag Grass Catcher
• Hurricane Mulch System
• Hurricane Plus™ Mulch System
• Mulch Plate
• OCDC - Operator-Controlled Discharge Chute
• Light Kit
• Chrome Wheel Covers
• Air Filter Monitor
• Blade Buddy
• 12-Volt Accessory Outlet

Description:

48" Hero Cutter Deck, 15 HP Kawasaki® FS600V - electric-start engine

FEATURES:

• Hero™ Cutter Deck: DEEP, FABRICATED, AND WELDED CUTTER DECKS: Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
• Ergonomic Control System: Easy Operation, Hour After Hour: Ultra-comfortable, ergonomic controls not only contour to the natural angles of your extended arms, but are placed to keep your hands out of harm's way when mowing next to trees and bushes.
• Easy-Adjust Cutter-Deck Height System: No Tools Needed: Innovative, rider-style height-of-cut adjustment is quick and convenient.
• Heavy-Duty Drive System: Speeds Up To 7 MPH: Dual ZT-2800 transaxles utilize all-metal internal gears for long life and deliver smooth, infinitely variable speed and bi-directional control. Power comes from a 10 cc variable-displacement, seven-piston pump and a 16 cc fixed-displacement, seven-piston motor in each transaxle. Cooling fans help keep operating temperatures lower.

SPECIFICATIONS

• Description: 48" Hero Cutter Deck, 15 HP Kawasaki® FS600V - electric-start engine
• Total Fuel Capacity: 5.5 gallons
• Drive Tires: 18" x 6.5"-8" (36"); 18" x 8.5"-8" (48", 52" and 61")
• Caster Tires: 9" x 6.5"-4"
• Seat: n/a
• Drive System Type: Hydro-Gear ZT2800 Transaxle
• Pumps: Internal Pump: 10 cc
• Motors: Internal Motor: 16 cc
• Forward Ground Speed: Up to 7 mph
• Reverse Ground Speed: 3 mph
• Parking Brake: Hand lever
• Cutting Widths: 36", 48", 52" and 61"
• Type: Hero Cutter Deck
• Cutting Height: 1.5" to 4.5" in .25" increments
• Deck Lift: Hand lever
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT1-BS03 (110 ft lb); Adjustable air-gap for extended life.

DIMENSIONS

• Length: 75.5"
• Height: 44"
• Tracking Width: 41.5"
• Width (chute down): 60.5"
• Width (chute in transport position): 49"
• Weight: 585 lb

ACCESSORIES

• Fabric Bag Grass Catcher
• Hurricane Mulch System
• Mulch Plate
• Chrome Wheel Covers
• Blade Buddy

General

Year

2003

Manufacturer

SCAG

Model

SW52A-18KA

Condition

Used

Stock Number

14699

Description

WALK BEHIND MOWER--52" DECK--17 HP KAWASAKI ENGINE

Description

The SCAG STT61V-791DFI Zero Turn Lawn Mower is a highly efficient and powerful machine designed for commercial lawn maintenance. Known for its durability and performance, SCAG mowers are popular among landscaping professionals and those who demand the best in lawn care equipment. Here are the key features and specifications of the SCAG STT61V-791DFI:

Key Features

1. Engine: The SCAG STT61V-791DFI is equipped with a robust engine, often a Kawasaki or Kohler model, that provides reliable power and performance. The "DFI" in the model name suggests it utilizes Digital Fuel Injection technology, which enhances engine efficiency and ensures smoother operation.
2. Cutting Deck: This mower features a 61-inch cutting width, which allows for covering large areas quickly, making it ideal for expansive properties. The deck is usually fabricated from heavy-duty steel to withstand tough conditions and prolonged usage.
3. Drive System: Equipped with a hydrostatic drive system, this zero-turn mower provides exceptional control and maneuverability, allowing for precise cutting around obstacles and in tight spaces.
4. Comfort and Ergonomics: Comfort is a priority in SCAG mowers, with adjustable seats, easy-to-reach controls, and a generally ergonomic design that reduces operator fatigue during long mowing sessions.
5. Fuel Efficiency: The DFI (Digital Fuel Injection) system not only improves performance but also enhances fuel efficiency, reducing operational costs.
6. Durability: SCAG is known for using high-quality materials and rugged construction. Features like the tubular steel frame and heavy-duty mechanical components contribute to the mower's longevity and reliability.
7. Safety Features: Safety mechanisms, including operator presence controls and other safety switches, are standard to ensure safe operation.

Specification:

General

• Year: 2012
• Manufacturer: SCAG
• Model: STT61V-791DFI
• Hours Used: 3,918
• Serial Number: H9600131
• Condition: Used
• Stock Number: 013

Category Specifics

• Cutting Width: 61 in

Powertrain

• Horsepower: 26 HP

Description:

SCAG STT61A-27KA MOWER, VIN/SN:9390658 - zero turn, Kawasaki gas engine, 61" deck, roll bar, meter reading 599 hours

Scag Turf Tiger STT-61A 27KA Zero Turn Commercial Mower 2017

with 27 H.P. Water cooled Kawasaki engine, 61 inch cut, 2,650 HRS.

new tires , battery, voltage regulator, fuel pump , solenoid

Features :

• Up to 7 MPH forward speeds and 5 MPH reverse speeds keep productivity at a maximum.
• 36", 48" or 52" fully fabricated cutter decks are tough and deliver the beautiful cut that Scag mowers are known for.

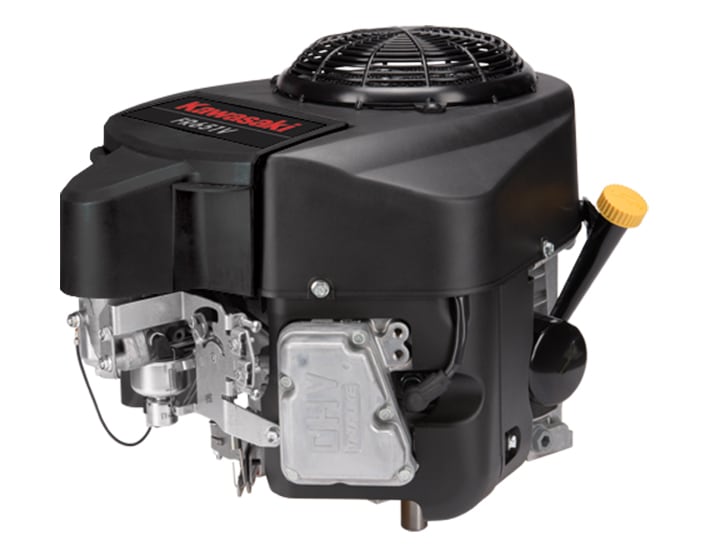

• Kohler 7000 Series PRO or Kawasaki FR Series engines are ultra-powerful with excellent torque output feature a larger oil, air and fuel filter. 4 cycle gas, forced air-cooled, OHV, twin cylinder, vertical shaft engine with fully pressurized oil system.
• Heavy-duty hydraulic drive system includes dual Hydro-gear 2800 transaxles for reliable, Zero Turn maneuverability. Cooling fans on the transaxles add to long-life. All metal gears and charge pumps for reliability and increased performance.
• 5.5 gallon fuel capacity (single tank) lets you cut longer between fill-ups. (3.5 gallon fuel capacity on 36" models)
• Heavy-duty, aluminum, sealed ball bearing blade drive spindles provide reliable performance season after season.
• Tubular steel main frame delivers unmatched strength and longevity.
• Open, easily accessible engine compartment makes maintenance easy and provides ample cooling for the V-twin engine. Engine oil drain and air filter are within easy reach.
• Large 20" drive tires and 11" caster tires deliver a nice ride and excellent traction.
• Full-featured instrument panel features ignition switch, throttle control. choke control, PTO deck engagement switch and a digital hourmeter with built-in maintenance reminders. Hour meter only activates when the engine is running to accurately record engine time.
• The Ogura PTO Clutch Brake delivers big starting and stopping torque to the cutter deck. Adjustable airgap ensures long component life
• Interlocked parking brake system prevents the mower from being driven with the brake on, avoiding premature wear.
• Large diameter, padded steering levers make driving the Liberty Z a breeze. Total control, at your fingertips.
• Marbain steel cutter blades stay sharp longer for a better looking cut and reduced maintenance.
• Easily adjust cutting heights from the seat with the convenient, easy to lift, foot pedal. Wide range of adjustment from 1-1/2" to 4-1/2 " in 1/4" increments.
• Cupholder keeps beverage within easy reach and is standard equipment.
• Deck leveling adjustment brackets allow for easy deck leveling adjustment.
• Highly flexible discharge chute will not dent and is easy on the landscape.
• No plastic pulleys - Some [other brands] actually use plastic pulleys on their mowers. Not Scag. All Scag pulleys are made from metal. Plastic is for toys.
• High-quality bearings and bearing debris guard on idler pulleys ensure long, reliable service.
• Spring loaded idler arms effortlessly keep belts in constant adjustment for maximum life and minimum maintenance.
• Excellent stability due to an exceptionally low center-of-gravity and extra wide stance.
• The Scag "Simply the Best" warranty stands behind you and your mower for years of service. 5-years or 750 hours (whichever comes first)
• High quality electrical components such as switches, wiring and harness looms are used throughout the Scag mower line for trouble-free service.
• There are many, time saving, accessories for the Liberty Z like the Tiger Striper lawn striping kit, 2 bag grass catchers, halogen light kits and more.
• Actual ground speed may vary. Specifications subject to change without notice or obligation.

Specification:

Scag Liberty Z - Product Dimensions48" Liberty ZLength73"Width (chute down)60.5"Width (chute in transport position)49"Weight610 lbs.

DESCRIPTION

48" Hero Cutter Deck, 22 HP Kohler® 7000 Series™ PRO - 725 cc displacement

FEATURES

• Proven Transaxles - Speeds Up To 7 MPH: The ZT drive systems' dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels (36", 42", 52" and 61" models). The 48" model features proven Tuff Torq transaxles.
• Command perfection - DEEP, FABRICATED, AND WELDED CUTTER DECKS: Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
• Ogura PTO Clutch Brake - Strong, Adjustable Clutch for Long Life: The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.
• Easy Foot-Pedal Deck Lift - Easy Up, Easy Down: Foot-pedal cutter-deck lift is spring-assisted and makes raising the cutter deck smooth and easy.
• Contoured, Bolstered, High-Back Seat - Ride in Comfort: This ultra-comfortable and adjustable (with tools) and contoured for improved comfort, and features armrests.
• Low-Maintenance Mower Design - More Uptime: Fewer grease points increase operator convenience and ease-of-ownership.
• High-Strength Steel Frame - Solid Design for Years of Dependable Service: Tubular-steel main frame delivers unmatched strength and longevity.
• Powerful and Efficient Engine Options - Reliable Power, Up To 24 HP: Choose from a Kawasaki® FR or Kohler® 7000 Series engine.

SPECIFICATIONS

• Description: 48" Hero Cutter Deck, 22 HP Kohler® 7000 Series™ PRO - 725 cc displacement
• Total Fuel Capacity: 3.5 gallons (36" and 42"); 5.5 gallons (48", 52" and 61")
• Drive Tires: 20" x 8"-10" (36"); 20" x 10"-8" (42", 48" and 52"); 20" x 10"-10" (61")
• Caster Tires: 11" x 4"-5" (36" and 42"); 11" x 6"-5" (48", 52" and 61")
• Seat: Padded with arm rests, adjustment forward and back (tools required); (no armrests on 36" and 42" models)
• Drive System Type: Hydro-Gear ZT2800 Transaxle (36", 42" and 52"); Tuff Torq TZ450 Transaxle (48"); Hydro-Gear ZT3100 Transaxle (61")
• Pumps: Internal Pump: 10 cc
• Motors: Internal Motor: 10cc (Tuff Torq), 16 cc (Hydro-Gear)
• Forward Ground Speed: 7 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• Cutting Widths: 36", 42", 48", 52" and 61"
• Type: Heavy-Duty Hero Cutter Deck
• Cutting Height: 1.5" to 4.5" in .25" increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT1 (74 ft lb) - (36", 42", 48" and 52"); Ogura GT2 (108 ft lb) - (61"); Adjustable air-gap for extended life.

DIMENSIONS

• Length: 67.5"
• Width (chute down): 60.5"
• Width (chute in transport position): 49"
• Height: 41"
• Weight: 612 lb

ACCESSORIES

• 2-Bag Grass Catcher
• Fabric Bag Grass Catcher
• Hurricane Mulch System
• Mulch Plate
• Tiger Stripe Kit
• Light Kit
• Trailer Hitch
• Chrome Wheel Covers
• Blade Buddy
• Cutter Deck Transport Latch

General

Manufacturer

SCAG

Model

SW32-13KA

Serial Number

61001112

Condition

Used

Description

Walk Behind, 32" Cut, 13 Horsepower Kawasaki Gas Engine. DS10909

Description:

The Scag STT61V-26DFI is renowned for its robust construction, advanced features, and exceptional cutting performance. Designed to tackle demanding mowing tasks with ease, this mower offers precision, efficiency, and durability to meet the needs of even the most demanding users.

Specifications:

1. Engine: Powered by a reliable 26 horsepower (HP) Kohler DFI (Digital Fuel Injection) engine. The DFI technology optimizes fuel delivery for improved efficiency, reduced emissions, and enhanced performance, ensuring reliable operation in various conditions.
2. Cutting Deck: Equipped with a heavy-duty 61-inch cutting deck constructed from high-grade steel. The cutting deck is designed for maximum airflow and grass dispersion, resulting in a clean, uniform cut even in thick or wet grass.
3. Transmission: Features a hydrostatic transmission system for smooth and precise control of speed and direction. The zero-turn capability allows for tight turns and maneuverability, increasing productivity and efficiency.
4. Cutting Height: Adjustable cutting height with multiple settings to suit different grass types and mowing preferences. The easy-to-use adjustment mechanism ensures precise cutting height selection for a professional-quality finish.
5. Blades: Utilizes high-performance cutting blades engineered for durability and superior cutting performance. The blades are designed to withstand tough conditions and maintain sharpness for extended periods, reducing the need for frequent replacements.
6. Operator Comfort: Designed with operator comfort in mind, featuring ergonomic controls, a cushioned seat with armrests, and vibration-reducing components. These features help reduce operator fatigue during long hours of operation, enhancing productivity and comfort.
7. Safety Features: Equipped with safety features such as an operator presence control system and safety shields to prevent accidents and injuries. The mower also includes a parking brake for secure operation when not in use.
8. Tires: Fitted with heavy-duty tires with deep treads for excellent traction and stability on various terrains. The tires provide reliable performance even on uneven or sloped surfaces, ensuring maximum maneuverability and control.
9. Fuel Capacity: Generous fuel tank capacity for extended mowing sessions without frequent refueling stops. This allows users to cover large areas efficiently without interruptions.

Description:

COME HOME TO THE BEST

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.

Features may include:

STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE

The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.

DEEP, FABRICATED, AND WELDED CUTTER DECKS

Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.

SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE

Tubular-steel main frame delivers unmatched strength and longevity.

• Condition New
• Year 2022
• Make SCAG Power Equipment
• Model Liberty Z SZL-61H-27SR
• Engine Scag SR Series
• Horsepower 27
• Fuel Type Gas
• Status Available
• Width Chute Down: 73.5" | Chute in transport position: 62"
• Height 41" | Cutting: 1.5" to 4.5" in .25" increments
• Deck Size 61
• Engine Brand Scag

Description:

61" Velocity Plus™ Cutter Deck, 22 HP Kawasaki® 651FSE

FEATURES

• Heavy-Duty Drive System: Speeds Up To 7.4 MPH: Hydraulic drive system includes dual 10 cc Hydro-Gear pumps and 12 ci Parker hydraulic motors.
• Adjust-A-Trac: Straight Ahead: Adjust-A-Trac tool is conveniently mounted on the engine deck for quick and easy neutral and tracking adjustments in the field.
• Proven "Pistol" Grips: EZ-Grip Design: Spring-assisted EZ-Grip design reduces hand force required to operate drive controls for maximum operator comfort and simple machine operation.
• Adjustable Handlebars: 3 Positions to Accommodate All Operators: Handlebars adjust to three (3) different positions to enhance operator comfort.
• Heavy-Duty Construction: Solid Design for Years of Dependable Service: Full commercial-grade construction ensures years of productive use.
• Ogura PTO Clutch Brake: Strong, Adjustable Clutch for Long Life: Provides excellent starting and stopping power for the cutter deck and an adjustable air gap for long life.
• Velocity Plus Cutter Decks: 36", 48", 52" or 61" Cutting Width: The envy of the industry, Velocity Plus™ decks (48", 52" and 61" widths) deliver an amazing quality-of-cut and a wide, even discharge. A 36" Advantage Cutter Deck option is also available.
• Ease of Maintenance: More Uptime: Easy-access mower design, an unrestricted engine area and easy-to-reach grease Zerks make servicing the SWZ simple, so you can be in the shop less and on the job more.
• Powerful and Efficient Engine Options: Reliable Power, Up To 22 HP: Proven and dependable Kawasaki® FS V-twin engine delivers efficient power.

SPECIFICATIONS

• Description: 61" Velocity Plus™ Cutter Deck, 22 HP Kawasaki® 651FSE
• Total Fuel Capacity: 5.5 gallons
• Drive Tires: 16" x 6.5"-8"
• Caster Tires: 9" x 3.5"
• Seat: n/a
• Drive System Type: Dual Pump and Motor
• Pumps: Hydro-Gear: 10 cc
• Motors: Parker 11 ci
• Forward Ground Speed: 7.4 mph
• Reverse Ground Speed: 3 mph
• Parking Brake: Hand lever
• Cutting Widths: 36", 48", 52" and 61"
• Type: Advantage (36"); Velocity Plus™ (48", 52", and 61")
• Cutting Height: 1.75" to 4.5" in .25" increments
• Deck Lift: Adjustable via spacers
• Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles.
• Spindles: Cast-iron housing with tapered roller bearings.
• Blade Engagement: Ogura GT-EXM3X (110 ft lb); Adjustable air-gap for extended life.

DIMENSIONS

• Length: 78"
• Width (chute down): 73.5"
• Width (chute in transport position): 62"
• Weight: 717 lb

ACCESSORIES

• Fabric Bag Grass Catcher
• Hurricane Plus™ Mulch System
• Mulch Plate
• Chrome Wheel Covers
• Blade Buddy
• Turbo Baffle

DESCRIPTION

52" Hero Cutter Deck, 27 HP Scag® SR Series - V-Twin

FEATURES

• Command perfection - DEEP, FABRICATED, AND WELDED CUTTER DECKS: Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
• Ogura PTO Clutch Brake - Strong, Adjustable Clutch for Long Life: The Ogura GT2 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 108 ft. lb. of holding strength, and an adjustable air gap for long life.
• Foot-Pedal Parking Brake - Stay in Control: Foot-operated parking brake activates a disc-brake system, allowing the parking brake to be engaged without taking your hands off of the steering controls. Ausco disc brakes provide reliable performance.
• Iso-Mounted Footplate - Crank Up the Comfort: Pierced, extruded-steel footplate is rubber iso-mounted for enhanced comfort.
• Low-Maintenance Mower Design - More Uptime: Fewer grease points increase operator convenience and ease-of-ownership.
• Hydro-Gear ZT-3100 / ZT-3400 Transaxles - Speeds Up To 10 MPH (SPZ61) / 8.5 MPH (SPZ52): The ZT drive systems' dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels. Large cooling fans keep temperatures low and extend component life.
• Suspension Seat - Ride in Comfort: The torsion-spring suspension seat adjusts to each operator's weight, is contoured and features armrests, all to provide superior comfort.
• High-Strength Steel Frame - Solid Design for Years of Dependable Service: Tubular-steel main frame delivers unmatched strength and longevity.
• Powerful and Efficient Engine Options - Reliable Power, Up To 26 HP: Choose from a Briggs Vanguard™, Kawasaki® FX or a Kohler® Command PRO® air-cooled, V-twin engine.

SPECIFICATIONS

• Description: 52" Hero Cutter Deck, 27 HP Scag® SR Series - V-Twin
• Total Fuel Capacity: 6.5 gallons
• Drive Tires: 22" x 10.5"-12" (52"); 24" x 12"-12" (61")
• Caster Tires: 13" x 6.5"-6"
• Seat: Torsion-spring suspension seat
• Drive System Type: Hydro-Gear ZT3100 Transaxle (52"); Hydro-Gear ZT3400 Transaxle (61")
• Pumps: ZT3100 Internal Pump: 10 cc (52"); ZT3400 Internal Pump: 12 cc (61")
• Motors: Internal Motor: 16 cc
• Forward Ground Speed: 8.5 mph (52"); 10 mph (61")
• Reverse Ground Speed: 5 mph
• Parking Brake: Foot-operated pedal
• Cutting Widths: 52" and 61"
• Type: Hero Cutter Deck
• Cutting Height: 1.5" to 5" in .25" increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT2 (108 ft lb); Adjustable air-gap for extended life.

DIMENSIONS

• Length: 73"
• Width (chute down): 64.5"
• Width (chute in transport position): 53"
• Height (ROPS folded): 46.5"
• Height (ROPS up): 61"
• Weight: 907-911 lb

ACCESSORIES

• 2-Bag Spindle Driven Grass Catcher
• 2-Bag Grass Catcher
• Fabric Bag Grass Catcher
• Hurricane Mulch System
• Mulch Plate
• Tiger Stripe Kit
• Light Kit
• Trailer Hitch
• Chrome Wheel Covers
• Flat-Free Caster Tire
• Blade Buddy

Description:

The all-new 61" Cheetah with a 27 HP Kawasaki engine stands heads and tails above the crowd in power, durability and performance. This industry benchmark has been re-engineered to be as easy on the operator as it is efficient on tough jobs in the field. No matter how challenging the terrain and cutting conditions, the Turf Tiger II makes mowing a snap.

From the heavy-duty,Tri-Plate Velocity Plus™ cutter decks to its extra strength double-tube steel frame to the dual 16cc hydraulic pumps and high-torque wheel motors, this cat is ready for action. The Turf Tiger II features the exclusive Command-Comfort Operator Station with adjustable 4-point iso-mounted suspension seat and Quick-Fit adjustable steering control levers to make your time spent in the driver’s seat more comfortable and more productive.

 Features:

• Operator Suspension System isolates the operator foot and seat platform via a coil-over shock and rubber iso-mounts. The operator platform (seat and foot plate) are suspended to deliver a smooth ride, with only three moving parts (front pivot, rear pivot and shock...that's it!). In addition to the platform, Quick-Fit control levers and 3-position deck lift foot pedal combine to provide unprecedented levels of adjustability and ergonomics.
• Up to 16 MPH ground speeds keep productivity at a maximum. Two-speed, ZT-5400 transaxles = Low Range (up to 12MPH) and High Range (up to 16MPH). High Range is perfect for traveling from job site to job site in an industrial park or subdivision or for transport back to the trailer. High Range can be used for cutting in less demanding conditions, like late season cutting, laying patterns or cutting dry grass. Most general cutting is best performed in Low Range.

Specifications:

• Cheetah - Product Dimensions 61" Cheetah
• Length 85.5"
• Width (chute down) 73.5"
• Width (chute in transport position) 62.75"
• Weight 1350 - 1365 lbs.
• Height (ROPS up) 67"
• Height (ROPS folded) 49.5"

Description:

The all-new 72" Turf Tiger II with a 25 HP Kubota Diesel engine stands heads and tails above the crowd in power, durability and performance. This industry benchmark has been re-engineered to be as easy on the operator as it is efficient on tough jobs in the field. No matter how challenging the terrain and cutting conditions, the Turf Tiger II makes mowing a snap.

From the heavy-duty,Tri-Plate Velocity Plus™ cutter decks to its extra strength double-tube steel frame to the dual 16cc hydraulic pumps and high-torque wheel motors, this cat is ready for action. The Turf Tiger II features the exclusive Command-Comfort Operator Station with adjustable 4-point iso-mounted suspension seat and Quick-Fit adjustable steering control levers to make your time spent in the driver’s seat more comfortable and more productive.

Specifications

• Turf Tiger II - Product Dimensions 72" Turf Tiger II Diesel
• Length 92"
• Width (chute down) 83"
• Width (chute in transport position) 73.75"
• Height (ROPS down) 46.5"
• Height (ROPS up) 68"
• Weight 1739 lbs.

Description:

Welded and fabricated using military-grade steel for years of dependable performance, the SFC-30 Finish Cut Walk-Behind Mower is no pushover. Packing big productivity and versatility into a compact form, this commercial-grade machine delivers a beautiful, professional quality-of-cut, helping you put the finishing touches on the job or at home.

Description:

Achieve command perfection with the 61" Hero Cutter Deck powered by a 22 HP Kawasaki® FS651V electric-start engine. This mower combines heavy-duty construction with innovative features to deliver exceptional performance and durability.

Features:

Deep, Fabricated, and Welded Cutter Decks: The heavy-duty Hero Cutter Deck design ensures an excellent quality-of-cut and can handle large volumes of grass at higher speeds, supported by aluminum sealed ball bearing blade-drive spindles.

Ergonomic Control System: Ultra-comfortable controls are ergonomically designed to fit the natural angles of your arms, ensuring easy operation hour after hour while keeping your hands safe when mowing around obstacles.

Easy-Adjust Cutter-Deck Height System: Innovative height-of-cut adjustment allows for quick and convenient changes without the need for tools.

Heavy-Duty Drive System: Dual ZT-2800 transaxles provide smooth, infinitely variable speed control with speeds up to 7 MPH, supported by all-metal internal gears and cooling fans for lower operating temperatures.

Heavy-Duty Construction: Full commercial-grade construction ensures long-lasting durability and dependable service, making it suitable for demanding applications.

Ogura PTO Clutch Brake: Provides strong and adjustable starting and stopping power for the cutter deck, ensuring reliable performance and extended life.

Ease of Maintenance: Easy-access mower design and conveniently located grease Zerks simplify maintenance, reducing downtime and maximizing productivity.

Powerful and Efficient Engine Options: Choose from reliable Kawasaki® FS V-twin engines delivering efficient power up to 22 HP.

Specifications:

Total Fuel Capacity: 5.5 gallons

Drive Tires: 18" x 6.5"-8" (36"); 18" x 8.5"-8" (48", 52", and 61")

Caster Tires: 9" x 6.5"-4"

Drive System Type: Hydro-Gear ZT2800 Transaxle

Pumps: Internal Pump: 10 cc; Motors: Internal Motor: 16 cc

Forward Ground Speed: Up to 7 mph; Reverse Ground Speed: 3 mph

Parking Brake: Hand lever

Cutting Widths: 36", 48", 52", and 61"

Cutting Height: 1.5" to 4.5" in .25" increments

Deck Lift: Hand lever

Construction: Dual-plate cutter deck constructed of 2 steel plates with reinforcement plate at cutter deck spindles

Spindles: Aluminum housing with sealed ball bearings

Blade Engagement: Ogura GT1-BS03 (110 ft lb); Adjustable air-gap for extended life

Dimensions:

Length: 80"

Height: 44"

Tracking Width: 41.75"

Width (chute down): 73.5"

Width (chute in transport position): 62"

Weight: 700 lb

Accessories:

Fabric Bag Grass Catcher

Hurricane Mulch System

Mulch Plate

Chrome Wheel Covers

Blade Buddy

Description:

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.

Features:

Ogura PTO Clutch Brake

Other manufacturers opt for less expensive, smaller-capacity, nonadjustable, “disposable” clutches. Not Scag®. Scag PTO clutch brakes are manufactured by Ogura, the world’s best manufacturer of electromagnetic clutches, providing smooth blade engagements and fast blade stops.

All Ogura clutches feature an adjustable air gap. What does that mean to you? It means that when most clutches are worn out and must be replaced at a significant cost to YOU, the Ogura clutch can be easily adjusted to bring it back into specification (your Scag dealer can perform this adjustment).

These clutches also feature industry-leading torque values (the holding power that links the engine to the cutter-deck drive system) to ensure solid drive to the cutter deck and no slipping in heavy conditions.

Hero™ Cutter Deck

Command perfection:

Scag® cutter decks have always given our competition a serious case of deck envy. Many try to duplicate the performance, but none can match it. The Hero™ cutter deck is an outstanding performer and delivers beautiful results.

The Hero™ Cutter Deck provides the top line power, precision and performance professionals and homeowners demand. This extra-strong, fully fabricated and welded deck features “maintenance-free” aluminum spindles for years of worry-free performance

Strength — Scag’s tough cutter-blade spindles and Dual-Plate construction ensure solid performance and long life.

Productivity — An extra-large discharge opening enhances discharge for even clipping dispersal.

Engines

Kawasaki FR Series Engines

Residential-Grade Power:

Kawasaki® FR Series engines are compact, 90-degree, V-Twin engines that provide an ideal amount of torque and power. Operation is smooth and quiet for years of dependable homeowner operation. Other features include:

• Two-channel forced-air cooling.
• Pressurized lubrication system.
• High-energy, electronic spark ignition.
• Easy-access oil fill.
• 90-degree V-Twin design with overhead V-valve.
• Cast-iron liners.
• Automatic compression release.

Specifications:

• Model: Liberty Z 42
• Length: 68.5″
• Width (chute down): 54.5″
• Width (chute in transport position): 43″
• Height: 41″
• Weight: 595 lb
• Total Fuel Capacity: 3.5 gallons
• Drive Tires: 20″ x 10″-8″
• Caster Tires: 11″ x 4″-5″
• Seat: Optional armrest kit available
• Drive System Type: Hydro-Gear ZT-2800 Transaxle
• Internal Pump: 10 cc
• Internal Motor: 10 cc (Tuff Torq) / 16 cc (Hydro-Gear)
• Forward Ground Speed: 7 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• Cutting Widths: 42″
• Type: Heavy-Duty Hero Cutter Deck
• Cutting Height: 1.5″ to 4.5″ in .25″ increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck of 2 steel plates
• Spindles: Aluminum housing with sealed ball bearings
• Blade Engagement: Ogura GT1 (74 ft lb)
• Adjustable Air-Gap: For extended life

Description:

The Scag Cheetah II SCZII-61V-38CV-EFI is a zero-turn mower built for those who demand both exceptional performance and unmatched comfort. Here's a breakdown of its key features:

• Powerful Engine: Choose between a 38 HP Kawasaki® or 37 HP Briggs & Stratton™ air-cooled, electronic fuel injection (EFI) engine for tackling even the toughest mowing jobs.
• Unmatched Cut Quality: The Velocity Plus™ deck with a nearly half-inch thick Tri-Plate top ensures a clean, professional-looking cut, even at high speeds.
• Smooth Ride: Hydro-Gear ZT-5400 transaxles provide speeds up to 16 mph and a comfortable ride, while the anti-scalp rollers prevent damage to your turf.
• Effortless Maneuvering: The zero-turn design allows for sharp turns and easy navigation around obstacles.
• Operator Comfort: The operator suspension system with adjustable settings provides a smooth ride, even on uneven terrain.

Additional Highlights:

• Durable Construction: The heavy-duty, double-tube steel main frame ensures long-lasting performance.
• Easy Maintenance: Features like flip-up components and easy-to-reach grease zerks simplify maintenance.

In essence, the Scag Cheetah II SCZII-61V-38CV-EFI is a premium zero-turn mower that delivers outstanding cutting power, superior maneuverability, and a comfortable operator experience. It's ideal for homeowners with large lawns or those who value professional-grade results.

DESCRIPTION

52" Hero Cutter Deck, 27 HP Scag SR Series - 803 cc displacement

FEATURES

• Command perfection - Deep, Fabricated, and Welded Cutter Decks: Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
• Ogura PTO Clutch Brake - Strong, Adjustable Clutch for Long Life: The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.
• Easy Foot-Pedal Deck Lift - Easy Up, Easy Down: Foot-pedal cutter-deck lift is spring-assisted and makes raising the cutter deck smooth and easy.
• Contoured, Bolstered, High-Back Seat - Ride in Comfort: This ultra-comfortable and adjustable (with tools) and contoured for improved comfort, and features armrests.
• Hydro-Gear ZT-2800 Transaxles - Speeds Up To 8 MPH: The ZT drive system's dual hydro transaxles with all-metal gears and spin-on oil filters to deliver smooth, solid power to the drive wheels. Large cooling fans keep temperatures low and extend component life.
• Low-Maintenance Mower Design - More Uptime: Fewer grease points increase operator convenience and ease-of-ownership.
• High-Strength Steel Frame - Solid Design for Years of Dependable Service: Tubular-steel main frame delivers unmatched strength and longevity.
• Powerful and Efficient Engine Options - Reliable Power, Up To 24 HP: The 22 hp and 24 hp Kohler® 7000 Series engines with PRO Performance filtration provide smooth, reliable power.

SPECIFICATIONS

• Description: 52" Hero Cutter Deck, 27 HP Scag SR Series - 803 cc displacement
• Total Fuel Capacity: 6.5 gallons
• Drive Tires: 20" x 10"-10"
• Caster Tires: 11" x 6"-5"
• Seat: Padded with arm rests, adjustment forward and back (tools required)
• Drive System Type: Hydro-Gear ZT2800 Transaxle
• Pumps: Internal Pump: 10 cc
• Motors: Internal Motor: 16 cc
• Forward Ground Speed: 8 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand-activated lever
• Cutting Widths: 48" and 52"
• Type: Hero Cutter Deck
• Cutting Height: 1.5" to 4.5" in .25" increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT1 (74 ft lb); Adjustable air-gap for extended life.

DIMENSIONS

• Length: 73"
• Width (chute down): 64.5"
• Width (chute in transport position): 53"
• Height: 60"
• Weight: 765 lb

ACCESSORIES

• 2-Bag Grass Catcher
• Fabric Bag Grass Catcher
• Hurricane Mulch System
• Mulch Plate
• Tiger Stripe Kit
• Light Kit
• Trailer Hitch
• Chrome Wheel Covers
• Blade Buddy

DESCRIPTION

36" Hero Cutter Deck, 14.5 HP Kawasaki® FS481V - recoil-start engine

FEATURES

• Command perfection - DEEP, FABRICATED, AND WELDED CUTTER DECKS: Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
• Ergonomic Control System - Easy Operation, Hour After Hour: Ultra-comfortable, ergonomic controls not only contour to the natural angles of your extended arms, but are placed to keep your hands out of harm's way when mowing next to trees and bushes.
• Easy-Adjust Cutter-Deck Height System - No Tools Needed: Innovative, rider-style height-of-cut adjustment is quick and convenient.
• Heavy-Duty Drive System - Speeds Up To 7 MPH: Dual ZT-2800 transaxles utilize all-metal internal gears for long life and deliver smooth, infinitely variable speed and bi-directional control. Power comes from a 10 cc variable-displacement, seven-piston pump and a 16 cc fixed-displacement, seven-piston motor in each transaxle. Cooling fans help keep operating temperatures lower.
• Heavy-Duty Construction - Solid Design for Years of Dependable Service: Full commercial-grade construction ensures years of productive use.
• Ogura PTO Clutch Brake - Strong, Adjustable Clutch for Long Life: Provides excellent starting and stopping power for the cutter deck and an adjustable air gap for long life.
• Ease of Maintenance - More Uptime: Easy-access mower design, an unrestricted engine area and easy-to-reach grease Zerks make servicing the SWZT simple, so you can be in the shop less and on the job more.
• Powerful and Efficient Engine Options - Reliable Power, Up To 22 HP: Proven and dependable Kawasaki® FS V-twin engine delivers efficient power.

SPECIFICATIONS

• Description: 36" Hero Cutter Deck, 14.5 HP Kawasaki® FS481V - recoil-start engine
• Total Fuel Capacity: 5.5 gallons
• Drive Tires: 18" x 6.5"-8" (36"); 18" x 8.5"-8" (48", 52" and 61")
• Caster Tires: 9" x 6.5"-4"
• Seat: n/a
• Drive System Type: Hydro-Gear ZT2800 Transaxle
• Pumps: Internal Pump: 10 cc
• Motors: Internal Motor: 16 cc
• Forward Ground Speed: Up to 7 mph
• Reverse Ground Speed: 3 mph
• Parking Brake: Hand lever
• Cutting Widths: 36", 48", 52" and 61"
• Type: Hero Cutter Deck
• Cutting Height: 1.5" to 4.5" in .25" increments
• Deck Lift: Hand lever
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT1-BS03 (110 ft lb); Adjustable air-gap for extended life.

DIMENSIONS

• Length: 75.5"
• Height: 44"
• Tracking Width: 36.25"
• Width (chute down): 48.5"
• Width (chute in transport position): 37"
• Weight: 550 lb

ACCESSORIES

• Fabric Bag Grass Catcher
• Hurricane Mulch System
• Mulch Plate
• Chrome Wheel Covers
• Blade Buddy

PRODUCT SPECS

ENGINE

Engine ManufacturerKawasaki®Horse Power14.5 hpEngine TypeFS481V - recoil-start

GENERAL

TransmissionHydro-Gear ZT2800 TransaxleWheel Size18 in. x 6.5 in.-8 in.Fuel Capacity5.5 gal.

DECK

Deck Size36 in
