HONDA EB6500X1AN — Portable Generator (Rated 6500 Watts)

Reliable, rugged, and built for demanding jobs, the HONDA EB6500X1AN portable generator provides consistent, high-performance power where you need it. Equipped with a durable Honda engine, smart features, and commercial-grade construction, it’s ideal for job sites, emergency backup, events, and more.

Key Features

• Powerful Honda OHV engine rated for strong performance and longevity
• Rated output of 6,500 watts / 8,125 peak watts ensures capacity for heavy loads
• Full-power on demand feature lets you run full rated load for up to 30 minutes
• Electric start plus recoil backup gives easy startup options
• Large, user-friendly control panel with multiple outlets and voltmeter
• Heavy-duty frame with audio-quiet design helps reduce noise under load
• Low-oil shutdown protection safeguards engine from damage
• Fuel tank with large capacity and gauge supports long runtime
• Mobility-ready design with built-in handles and wheel kit options

Specifications

• Model: EB6500X1AN
• Rated Power: 6,500 watts
• Peak (Surge) Power: 8,125 watts
• Engine Type: Honda overhead valve (OHV) 4-stroke
• Start System: Electric start (12V) with recoil backup
• Voltage: 120/240V single-phase
• Frequency: 60 Hz
• Phase: Single-phase
• Fuel Tank Capacity: ~11.9 gallons (depends on variant)
• Run Time @ 50% Load: ~7–9 hours
• Output Receptacles: Multiple (e.g., 120V GFCI, 240V twist-lock)
• Noise Level: ~74 dB at 7 m (nominal)
• Weight: ~295–320 lb (wet weight)
• Dimensions: ~38 x 27 x 27 in (L x W x H)
• Primary Uses: Construction sites, backup power supply, events, remote job power

Why It’s a Smart Pick

• The HONDA EB6500X1AN offers strong power output in a rugged, jobsite-ready format. With electric start, full-power boost, and Honda’s legendary engine reliability, it’s built to withstand real-world demands. Whether you’re powering tools on-site or keeping critical systems online during outages, this generator delivers long-lasting, stable power.

Description:

The Honda EB10000 gas powered generator is an industrial strength 120/240V generator with 10,000-watt maximum output. Voltage Selector Switch – 120/240V operation, Powerful Honda GX V-Twin Commercial engine protected by Oil Alert, Digital Auto Voltage Regulator (DAVR) technology for increased performance, Full GFCI protection across all outlets, Operates 6.5 hours per tankful and has a 3 year warranty. Meets OSHA, LA-ETL, CARB, EPA Phase III regulations and is USDA Compliant. 2 wheel kit & lift hook standard.

Specification:

• 10,000 watts, 120/240V
• 2 wheel kit & lift hook
• Best fuel efficiency and lowest noise rating in its class
• Full GFCI protection
• Honda Commercial GX engine & heavy duty frame
• Dimensions: 55.9″ x 26.7″ x 35.1″
• Dry Weight: 403 lbs
• Engine Displacement: 688cc
• Engine: Honda GX630
• Fuel Capacity: 8.1 gals.
• Starting System: Electric
• AC Output: 120/240V 10000W max. (83.8/41.6A) 9000W rated (75/37.5A)
• Noise Level: 76 dB @ rated load
• Run Time on One Tankful: 5.4 hrs @ rated load, 7.9 hrs @1/2 load
• Transmission Receptacles: 20A 125V Duplex (2), 30A 125V Locking Plug, 30A 125/250V
• Locking Plug, 50A 125/250V Locking Plug

Description:

Features:

• Honda EB5000 Portable Industrial Generator
• Ideal for power on the job site
• iAVR (Intelligent Automatic Voltage Regulator)
• Ensures a consistent flow of power regardless of load
• Protection for sensitive equipment and reliable power for you
• iVAR Bump - 7,000 Watts For Up To 10 Seconds
• Provides the ability to start high amp draw tools and motors
• CO-Minder™ Advanced Carbon Monoxide Detection System
• Continuously measures CO levels & shuts down at high levels
• 389cc Honda iGX360 OHV 4-Cycle Engine
• Digital CDI ignition system provides improved ignition timing
• Integrated ECU with a self-tuning regulator/governor system
• Oil Alert® Warning System
• Shuts the engine down if oil reaches an unsafe operating level
• Prevent engine damage from overheating due to lack of oil
• 6.2-Gallon Fuel Tank w/ Fuel Gauge
• Provides up to 11.2 hours of run time @ 50% load
• Auto Throttle® System
• Reduces engine speed when no load is present
• Voltage Selector Switch - 120/240V Operation
• Gives you more usable power and added flexibility
• Full Panel GFCI Protection - OSHA Compliant
• Must use GFI type manual transfer switch for panel connection
• Not for use with interlock kit
• USDA-Qualified Spark Arrestor/Muffler
• Provides quieter and safer operation
• One-Piece Welded Steel Frame
• Keeps the generator safe no matter where it is
• Wheel Kit, Folding Handle & Lifting Eye
• Makes this generator easy to transport

Specifications:

• Assembly Required: Yes
• Weight: 214 Pounds
• CARB Compliant: Yes
• Certification: CARB
• Made in USA: No
• Consumer Warranty: 3 Years
• Commercial Warranty: 3 Years

Product Dimensions:

• Length: 41.9 Inches
• Width: 27.2 Inches
• Height: 29.2 Inches
• UPC: 786102007368
• Additional Model Numbers: EB5000, EB5000X3AG
• Product Style: Portable Generator

Power:

• Voltage: 120/240 Single-Phase
• Frequency: 60 Hertz
• Auto Voltage Regulation: Yes
• Rated Watts: 4500 Watts
• Surge Watts: 5000 Watts
• Rated Amps: 19 Amps

Fuel:

• Fuel Type: Gasoline
• Tank Size: 6.2 Gallons
• Run Time @ 50% Load: 11.2 Hours
• Fuel Tank Material: Metal
• Fuel Gauge: Yes

Noise Level:

• Decibel Rating @ 7m: 72 dbA
• Idle Control: Yes

Description:

Honda EM5000X3AN 5000 Watt Generator features:

• 5000 watts, 120/240V
• Provides 7,000 watts for 10 sec to start larger equipment
• Powers fridge, furnace, well pump, and much more
• Long run time - up to 11.2 hrs
• Powerful Honda iGX commercial engine
• Electric start (battery included) with recoil back-up

Specification:

• Engine Honda iGX390
• Displacement 389cc
• AC Output 120/240V 5000W max. (41.2/20.8A) / 4500W rated (37.5/18.6A)
• iAVR Output 7000W (58.3/29.2A) for 10 sec.
• Receptacles 20A 125V GFCI Duplex (2),
• 30A 125V Locking Plug,
• 30A 125/250V Locking Plug DC Output 12V,
• 100W (8.3A)
• Starting System Electric Recoil
• Fuel Tank Capacity 6.2 Gallons
• Run Time per Tankful 8.1 hrs.@ rated load, 11.2 hrs. @ 1/2 load
• Dimensions (L x W x H) 41.1" x 27.8" x 28.3"
• Noise Level 66 dB(A) @ rated load; 63 db(A) @ 50% load
• Dry Weight 232 lbs.
• Residential Warranty 3 Years Commercial Warranty 3 Years
• WARNING: California Prop 65 Information</a>

Description:

Features:

• Provides 7,000 watts for 10 sec to start larger equipment
• Powers fridge, freezer, furnace, well pump, and much more
• Long run time - up to 9.8 hrs
• Electric start
• Honda My Generator app + Bluetooth® capability
• CO-MINDER: advanced carbon monoxide detection system

Specifications:

• Full Model Name: EM6500SXK2AN
• Engine: Honda iGX390
• Engine Displacement: 389 cc
• Fuel Tank Capacity: 6.2 Gallons
• Starting System: Electric & Recoil
• Dry Weight: 231.7 lb
• POWER OUTPUT:
• AC Output:
• 120/240V 6500W max. (54.2/27.1A)
• 5500W rated (45.8/22.9A)
• iAVR Output: 7000W (58.3/29.2A) for 10 seconds
• DC Output: 12V, 100W (8.3A)
• RECEPTACLES:
• 20A 125V GFCI Duplex (2)
• 30A 125V Locking Plug
• 30A 125/250V Locking Plug
• RUN TIME:
• Run Time per Tankful:
• 6.4 hrs @ rated load
• 9.8 hrs @ 1/2 load
• DIMENSIONS:
• Dimensions (L x W x H): 41.4" x 27.8" x 28.3"
• Noise Level: 66 dB(A) @ rated load; 64 dB(A) @ 50% load
• WARRANTY:
• Residential Warranty: 3 Years
• Commercial Warranty: 12 Months

Description:

2200 watt 120V inverter generator with CO-MINDER™

Features:

• Built in 30A outlet for easy parallel & RV applications
• Super quiet & lightweight
• Inverter - stable power
• Honda My Generator app + Bluetooth® capability
• CO-MINDER: advanced carbon monoxide detection system

Specification:

• Full Model Name: EU2200ITAN1
• Engine: Honda GXR120
• Displacement: 121cc
• AC Output:
• 120V, 2200W max (18.3A)
• 1800W rated (15A)
• Receptacles:
• 30A 125V Locking Plug
• 20A 125V Receptacle
• DC Output: N/A
• Starting System: Recoil
• Fuel Tank Capacity: 0.95 gal
• Run Time per Tankful:
• 3.2 hrs @ rated load
• 8.1 hrs @ 1/4 load
• Dimensions (L x W x H): 20.0" x 11.4" x 16.7"
• Noise Level:
• 57 dB(A) @ rated load
• 48 dB(A) @ 1/4 load
• Dry Weight: 47.4 lb
• Residential Warranty: 3 Years
• Commercial Warranty: 12 Months
• CA Compliant: Not for sale in California

Description:

Features:

• Ideal for TV, DVD, satellite, fridge, coffee pot, & more
• Super quiet & lightweight
• Inverter - stable power
• Honda My Generator app + Bluetooth® capability
• CO-MINDER: advanced carbon monoxide detection system

Specifications:

• Engine: Honda GXR120
• Displacement: 121cc
• AC Output:
• 120V, 2200W max (18.3A)
• 1800W rated (15A)
• Receptacles: 20A 125V Duplex
• DC Output: N/A
• Starting System: Recoil
• Fuel Tank Capacity: 0.95 gal
• Run Time per Tankful:
• 3.2 hrs at rated load
• 8.1 hrs at 1/4 load
• Dimensions (L x W x H): 20.0" x 11.4" x 16.7"
• Noise Level:
• 57 dB(A) at rated load
• 48 dB(A) at 1/4 load
• Dry Weight: 47.4 lb
• Residential Warranty: 3 years
• Commercial Warranty: 3 years

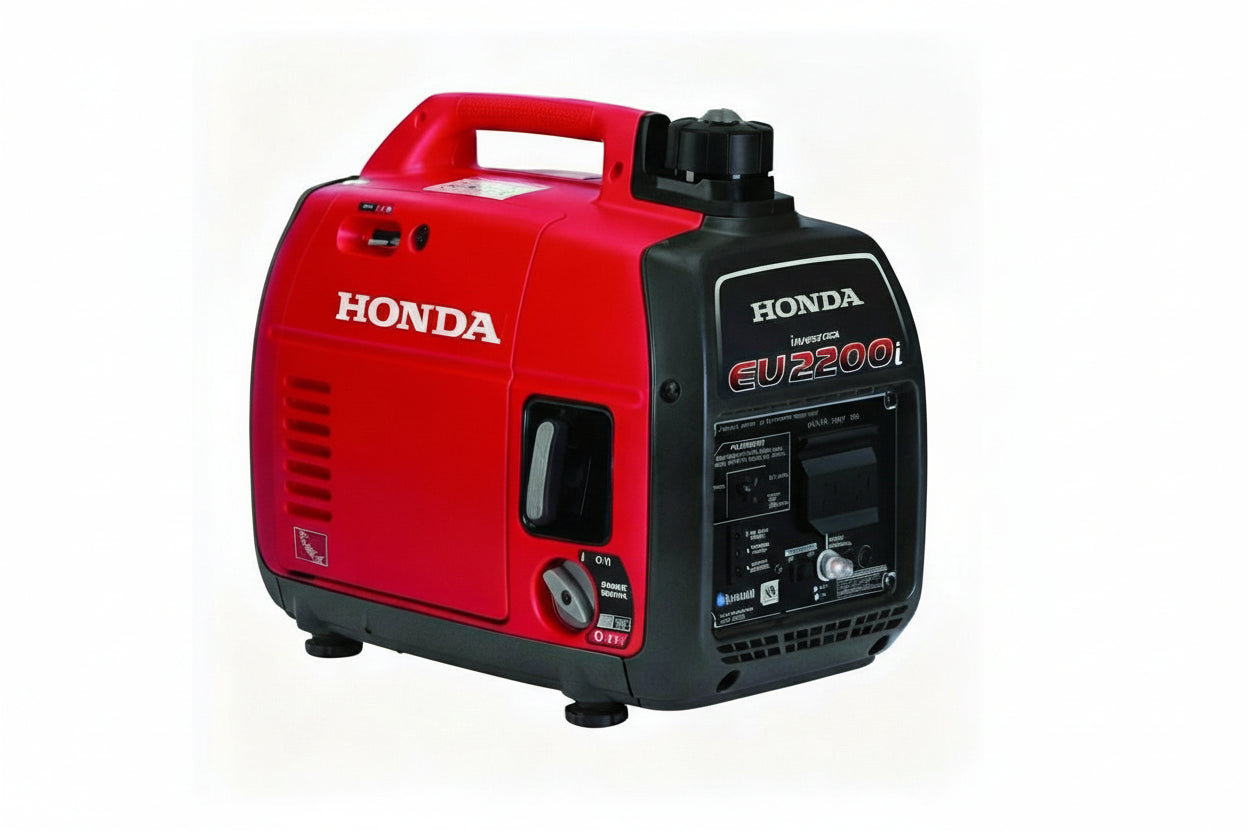

Description:

2200 watt 120V inverter generator with CO-MINDER™

Key Features:

• Ideal for TV, DVD, satellite, fridge, coffee pot, & more
• Super quiet & lightweight
• Inverter - stable power
• Honda My Generator app + Bluetooth® capability
• CO-MINDER: advanced carbon monoxide detection system

Features:

• More power. Same legendary quality: The EU2200i delivers 10% more power than the previous EU2000i - enabling you to power more of what you need, in the same lightweight, compact package. Whether it's an extra refrigerator at home, a larger saw on your construction site, a larger TV at your tailgate party, the EU2200i gives you the power to get more done.
• Power for microwave, refrigerators, hair dryer, small AC units, and much more: The EU2200i can operate a wide variety of appliances, making it perfect for portable use at home, camping, on the jobsite, or much more. Take a look at the applications tab for more examples.
• Honda My Generator app + Bluetooth® capability: Honda's exclusive My Generator smartphone app offers remote generator operation and monitoring with impressive performance and unmatched convenience. The app includes wireless stop, operation monitoring, and service reminders, utilizing Bluetooth® connectivity.*
• CO-MINDER: Advanced Carbon Monoxide Detection System: CO-MINDER™ continuously monitors carbon monoxide (CO) levels. It automatically shuts down the generator before detected CO levels near the generator become dangerously high.

Specifications:

• Full model name: EU2200ITAN
• Engine: Honda GXR120
• Displacement: 121cc
• AC Output: 120V 2200W max. (18.3A), 1800W rated (15A)
• Receptacles: 20A 125V Duplex
• DC Output: NA
• Starting System: Recoil
• Fuel Tank Capacity: .95 gal
• Run Time per Tankful: 3.2hr @ rated load 8.1 hrs @ 1/4 load
• Dimensions (L x W x H): 20.0 in. x 11.4 in. x 16.7 in.
• Noise Level: 57 dB(A) @ rated load 48 dB(A) @ 1/4 load
• Dry Weight: 47.4 lb.
• Residential Warranty: 3 Years
• Commercial Warranty: 3 Years
• CA Compliant: Not for sale in California

Description:

Features a powerful Honda GX Engine. Designed to be very lightweight and fuel efficient allowing for 18 hours of extended use with only 5.1 gallons of gas. Ideal for powering your furnace, fridge, microwave, and more. Inverter provides stable power source for operating computers and more. Good for household backup power. Fuel injected for better fuel efficiency, cleaner operation and lower maintenance. Features convenient electrical start.

Specifications:

• Engine: Honda GX390 EFI
• Displacement: 389cc
• Starting System: Recoil and Electric
• Fuel Tank Capacity: 5.1 gallons
• Noise Level: 60 dB @ rated load
• Output: 120/240V 7000W max

Description:

Features:

• 9" tilling width
• Lightweight - less than 29 lbs
• Compact yet powerful
• Patented Honda hybrid tines with limited lifetime warranty
• 4 optional attachments for more flexibility

Specifications:

• Tiller Type: Mini
• Tilling Width: 9"
• Tine Diameter: 8"
• Engine: Honda GX25
• Displacement: 25cc
• Air Filter: Semi-dry
• Fuel Capacity: 0.60 qt.
• Transmission Speeds: 1 - forward
• Tine Speed @ Max Engine Speed: 294 rpm
• Transmission Type: Worm gear
• Dimensions (LxWxH): 40.8" x 14.4" x 39.4"
• Dry Weight: 24.9 lbs. with drag bar (26.8 lbs. with wheels)
• Residential Warranty: 24 months
• Commercial/Rental Warranty: 12 months

Description:

FRC800K1AN (49 State), FRC800K1A1 (California)Rear tine tiller

• 20" tilling width
• Convenient "loop handle" design allows operation from either side
• Self propelled - 3 forward speeds, 1 reverse
• Commercial grade construction

Specification:

• Official Model Name:
• FRC800K1AN (49 States)
• FRC800K1A1 (California)
• Tiller Type: Rear Tine
• Tilling Width: 20 inches
• Tine Diameter: 12 inches
• Engine Make: Honda
• Engine Model: GX240
• Engine Displacement: 270 cc
• Air Filter: Dual element with cyclone filter
• Fuel Capacity: 4.6 qt
• Transmission Speeds: 3 forward, 1 reverse
• Tine Speed @ Max Engine Speed: 225 rpm
• Transmission Type: Chain and gear drive
• Dimensions (L x W x H): 65.4 inches x 24.0 inches x 49.0 inches
• Dry Weight: 265 lbs
• Residential Warranty: 24 months
• Commercial Warranty: 12 months

Description:

• 2200 watt 120V industrial generator with CO-MINDER™Super quiet, lightweight & fuel efficient
• OSHA worksite compliant
• Inverter: stable power for sensitive equipment & electronics
• CO-MINDER: advanced carbon monoxide detection system

Features

• More Power, Same Legendary Quality:
• The EB2200i delivers 10% more power than its predecessor, the EB2000, while maintaining Honda's renowned quality and reliability in a lightweight and compact design.
• Portable Power for Your Job Site:
• Ideal for powering a wide variety of industrial tools, making it perfect for portable use on job sites.
• CO-MINDER™ Advanced Carbon Monoxide Detection System:
• Continuously monitors carbon monoxide levels and automatically shuts down the generator if levels become dangerously high near the generator.
• Honda GXR120 Engine - Commercial Grade Reliability:
• Features the Honda GXR120 engine known for quiet, smooth, fuel-efficient performance, along with exceptional durability and reliability.
• GFCI Protection:
• Fully GFCI protected and OSHA compliant, making it safe for jobsite applications.
• Advanced Inverter Technology - Reliable Power for Sensitive Equipment:
• Provides stable, clean power suitable for sensitive equipment and electronics, similar to the power you get from household outlets.
• Super Quiet Operation:
• Operates at 48 to 57 dBA, quieter than a normal conversation, making it suitable for quiet environments.
• Lightweight and Compact Design:
• Weighs just over 47 pounds, making it highly portable and easy to transport.
• Fuel Efficient:
• Runs up to 8.1 hours on less than a gallon of fuel, thanks to Honda's Eco Throttle System which adjusts engine speed to match the load.
• Easier Oil Changes:
• Features a larger oil filler opening, longer spout, and larger oil drain gutter for cleaner and simpler oil changes.
• Fuel Shutoff ("Fuel Off" Position):
• Allows the generator to run until the majority of fuel in the carburetor is consumed, preventing stale fuel issues during storage.
• Better Overall Durability:
• Includes features like a stamped metal recoil rope insert to reduce damage, increased ventilation for improved cooling, and high-quality stator/rotor configuration for enhanced durability.
• Protected by Oil Alert®:
• Automatically shuts off the engine when low oil is detected, protecting the generator from damage.
• USDA-Qualified Spark Arrestor/Muffler:
• Meets USDA standards for areas where spark arrestors are required for safe operation.
• Warranty:
• Covered by a 3-year residential warranty and a 12-month commercial warranty, providing peace of mind for both home and professional use.

Specifications:

• Full Model Name: EB2200ITAN
• Engine: Honda GXR120
• Displacement: 121cc
• AC Output: 120V 2200W max. (18.3A), 1800W rated (15A)
• Receptacles: 20A 125V Duplex
• DC Output: N/A
• Starting System: Recoil
• Fuel Tank Capacity: 0.95 gallons
• Run Time per Tankful: 3.2 hours @ rated load, 8.1 hours @ 1/4 load
• Dimensions (L x W x H): 20.0" x 11.4" x 16.7"
• Noise Level: 57 dB(A) @ rated load, 48 dB(A) @ 1/4 load
• Dry Weight: 47.4 lb.
• Residential Warranty: 3 Years
• Commercial Warranty: 12 months
• CA Compliant: Not for sale in California

Description:

Features a powerful Honda GX Engine. Designed to be very lightweight and fuel efficient allowing for 20 hours of extended use with only 3.4 gallons of gas.

Ideal for powering your furnace, fridge, microwave, and more. Inverter provides stable power source for operating computers and more. Good for RV and camping use.

This generator is legal in 49 states - this particular model is not allowed to be used in California.

Features:

• Excellent source of power for RVs, including 13,500 BTU AC units, and basic home backup power
• This popular model can operate a wide variety of appliances, including a furnace, fridge, microwave, most 13,500 BTU RV AC units, and much more. Take a look at the applications tab for more examples.
• Super quiet - less noise than normal conversation
• So quiet, your neighbors will thank you. The EU3000iS operates at 50 to 57 dB(A), which is less noise than a normal conversation. This makes it ideal for camping, RV power and any other activity that requires quiet operation.
• CO-MINDER: Advanced Carbon Monoxide Detection System
• CO-MINDER^™ continuously monitors carbon monoxide (CO) levels. It automatically shuts down the generator before detected CO levels near the generator become dangerously high.
• Convenient electric starting
• Easy recoil starting is also available as a back up.
• Fuel efficient - Runs nearly 20 hours on 3.4 gal of fuel
• Thanks to our exclusive Eco Throttle System, the EU3000iS offers great fuel efficiency. Runs from 6.9 to 19.6 hours on a single tank, depending on the load. This makes it great for overnight power.
• Advanced inverter technology - reliable power for computers and other sensitive equipment
• Honda's inverter technology means stable, clean power in a smaller, lighter package. The precision of Honda's inverter technology ensures our inverter generators produce power that is as reliable as the power you get from your outlets at home.
• Add more power with parallel capability
• Need more power? Add a second EU3000iS for additional power. Two identical models can be paralleled with an optional cable.
• 3 year residential warranty
• You can rest easy, knowing your generator is covered from top to bottom for 3 full years.
• Protected by Oil Alert^®
• Protects the generator by shutting the engine off when low oil is detected.
• USDA-qualified spark arrestor/muffler
• Circuit protected
• Protects the generator from being overloaded.

Specification:

• Engine: Honda GX200
• Displacement: 196cc
• Starting System: Recoil and Electric
• Fuel Tank Capacity: 3.4 gallons
• Noise Level: 58 dB @ rated load
• Output: 120V 3000W max

Description:

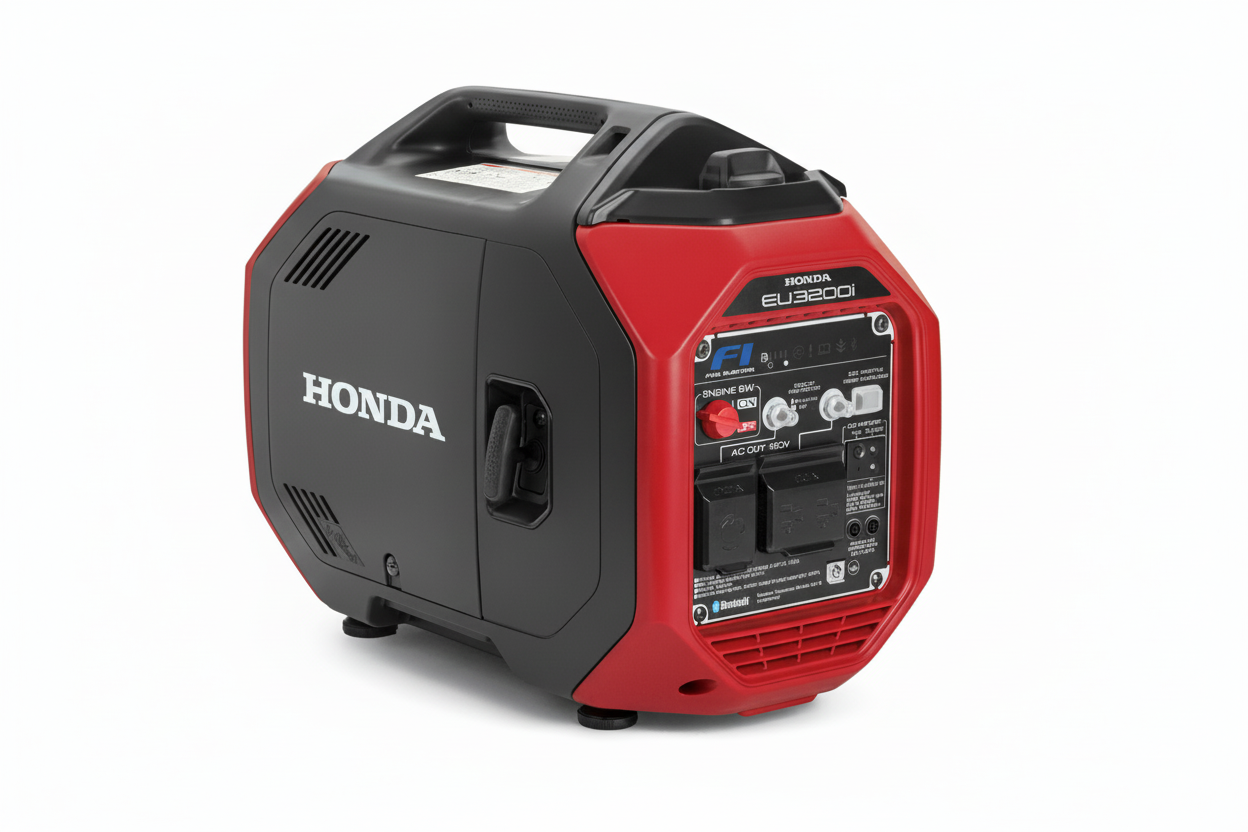

3200 watt 120V inverter generator with CO-MINDER™

• Power for furnace, fridge, 13,500 BTU RV AC units, & more
• Super quiet, lightweight & fuel efficient
• Clean, stable inverter power for electronics
• Honda My Generator app + Bluetooth® capability
• CO-MINDER: advanced carbon monoxide detection system

Specifications

• Engine: Honda GX130
• AC Output: 120V, 3200W max., 2600W rated
• Receptacles: 30A 125V locking plug, 20A 125V duplex
• Starting System: Recoil
• Fuel Tank Capacity: 1.2 gal.
• Run Time per Tankful: 3.3 hrs @ rated load, 8.6 hrs @ 1/4 load
• Dimensions: 22.5" L x 12.0" W x 17.8" H
• Noise Level: 58 dB(A) @ rated load, 54 dB(A) @ 1/4 load
• Dry Weight: 59.1 lbs
• Warranty: 3 years residential, 12 months commercial (CA compliant version available)

Description:

Inverter generators manage power flow via a rectifying alternator that creates clean, stable energy to run computers, televisions, and other sensitive electronic equipment. They idle down as power demands decrease to save fuel and reduce noise. Inverters typically have a longer life than conventional generators and are lighter and more compact to ease transport. Two inverter generators can be hooked up in parallel via a parallel cable kit to increase power capacity.

Specification:

• Brand: Honda
• Engine Brand: Honda
• Manufacturer Part Number: EU1000T1AG
• Air Cleaner Type: Foam
• CARB Compliant: Yes
• Carbon Monoxide (CO) Shutdown: Yes
• Circuit Breakers Included: Yes
• Engine Alternator: Inverter
• Engine Displacement: 49.4 cc
• Engine Oil Capacity: 0.25 qt
• Engine Type: OHV
• Fuel Tank Capacity: 0.55 gal
• Fuel Type: Gasoline
• Generator Technology: Inverter
• Includes:
• Carburetor Assembly
• Safety Heading
• Safety Label
• Safety Messages
• Includes GFCI Outlets: Yes
• Manufacturer Warranty: 3 years
• Noise Level: 50 dBA
• Outlets Included: 5-20R GFCI Duplex
• Overall Dimensions:
• Height: 14-7/8 in
• Length: 17-13/16 in
• Width: 9-1/2 in
• Parallel Configuration Capable: Yes
• Amp Rating @ 120V AC - Gasoline/Diesel: 7.5 A
• Rated Frequency: 60 Hz
• Rated Voltage: 120V AC
• Run Time @ 1/4 Load - Gasoline/Diesel: 6.8 hr
• Run Time @ Full Load - Gasoline/Diesel: 3 hr
• Running Wattage - Gasoline/Diesel: 900 W
• Safety Features: Low Oil Shutdown
• Standards: USDA
• Starter Type: Recoil
• Starting Wattage - Gasoline/Diesel: 1,000 W
• Weight: 28.7 lb
• UNSPSC: 26111604
• Country of Origin: Thailand (subject to change)

Description:

Features:

• 19" extension for hedging and pruning attachments
• VersAttach® System - multitool flexibility
• Pairs with both the UMC425 and UMC435 Powerheads

Specifications:

• Weight: 1.4 lbs (0.63 kg)
• Shaft Length: 19.6 in (497.8 mm)

Warranty

• Residential Warranty: 24 months
• Commercial Warranty: 12 months

Description:

On sale now! Please call/text for availability.

3" general purpose water pump

On Sale Now!

• General purpose, centrifugal 3" pump
• Easy starting Honda OHV commercial engine
• 290 gal./min. capacity
• Silicon carbide mechanical seal
• Cast iron volute and impeller

Features:

• Easy starting Honda OHV commercial engine, part of the durable Honda GX series
• Durable silicon carbide mechanical seal for extended wear
• 4 vane high efficiency impeller designed by Honda for improved performance
• Cast iron volute for rigid-mount and reduced case wear
• Heavy duty full frame protection with convenient tie-down locations
• Isolation mounted engine and pump to minimize vibration and increase durability
• Protected by Honda Oil Alert® to shut off the engine when low oil is detected
• Large strainer allows up to 8 mm (5/16 in.) solids to pass through, reducing clogging

Specifications:

• Engine: GX160, 163cc displacement, 2.7" x 1.8" bore and stroke, compression ratio 9.0:1
• Oil Alert: Standard
• Pump Type: Centrifugal, Self-priming
• Volute: Rigid Mounted Cast Iron
• Impeller: 4 Vane Cast Iron
• Mechanical Seal (Pump case / impeller): Silicon Carbide/Silicon Carbide
• Priming Time: 150 sec @ 16.4 ft.
• Drive System: Direct
• Discharge Capacity: 290 gal/min
• Suction Port Diameter: 3" NPT
• Discharge Port Diameter: 3" NPT
• Total Head Lift: 85 ft.
• Suction Head Lift: 25 ft.
• Maximum Pressure: 37 psi
• Dimensions (LxWxH): 20.1" x 15.2" x 17.9"
• Dry Weight: 57 lb.
• Fuel Capacity: 0.82 gal
• Run Time @ Max Discharge: 1.9 hr
• Strainer Part #: 78325-YG4-000
• Residential Warranty: 24 months
• Commercial Warranty: 12 months

Description:

On sale now! Please call/text for availability.

2" high pressure water pump

• 119 gal./min capacity
• 64 psi max.
• Cast iron volute and impeller

Features:

• High Pressure Capability:
• Designed for applications requiring high pressure, with a maximum pressure of 64 psi. Ideal for sprinkler systems or use with nozzles.
• Easy Starting Honda OHV Commercial Engine:
• Features the durable Honda GX series commercial-grade engine known for reliable starting and providing ample power in tough conditions.
• 119 Gallons per Minute Capacity:
• Capable of delivering up to 119 gallons of water per minute, suitable for various high-pressure pumping tasks.
• Cast Iron Volute and Impeller:
• Utilizes a rigid-mount cast iron volute and impeller to reduce case wear, thereby extending the life of the pump.
• Heavy-Duty Full Frame Protection:
• Provides robust protection for the pump and includes tie-down locations for secure transport.
• Lightweight Aluminum Case:
• The pump features a lightweight aluminum case, enhancing portability without compromising durability.

Specifications:

• Engine: Honda GX160
• Displacement: 163cc
• Bore and Stroke: 2.7" x 1.8"
• Compression Ratio: 9.0:1
• Oil Alert: Not Applicable
• Pump Type: High Pressure, Centrifugal, Self-priming
• Volute: Rigid Mounted Cast Iron
• Impeller: Cast Iron
• Mechanical Seal (Pump Case / Impeller): Carbon / Ceramic
• Priming Time: 80 seconds at 16.4 feet
• Drive System: Direct
• Discharge Capacity: 119 gallons per minute
• Suction Port Diameter: 2" NPT
• Discharge Port Diameter: 2" NPT
• Total Head Lift: 148 feet
• Suction Head Lift: 26 feet
• Maximum Pressure: 64 psi
• Solids Handling: Not Applicable
• Dimensions (LxWxH): 20.5" x 15.7" x 18.1"
• Dry Weight: 60 lb
• Fuel Capacity: 0.82 gallons
• Run Time @ Max Discharge: 1.5 hours
• Strainer Part #: 78325-YB7-702
• Residential Warranty: 24 months
• Commercial Warranty: 12 months

Description:

3" trash pump

• 317 gal./min capacity
• Solid handling capability up to 1 1/16"
• Cast iron volute and impeller
• Quick clean out port

Features:

Heavy-Duty 3" Construction Trash Pump:

• Specifically designed for job sites and applications requiring high-volume trash water capacity.

Easy Starting Honda OHV Commercial Engine:

• Features the durable Honda GX series commercial-grade engine known for reliable starting and ample power in tough conditions.

317 Gallons per Minute Capacity:

• Capable of moving up to 317 gallons of water per minute, making it suitable for demanding pumping tasks.

Solid Handling Capability up to 1 1/16":

• The specially designed impeller allows solids up to 1 1/16 inches to pass through easily without clogging.

Heavy-Duty Full Frame Protection:

• Provides robust protection for the pump and includes tie-down locations for secure transport.

Easy Quick Clean Out Port:

• Designed for quick and straightforward service with an accessible clean-out port for easy maintenance.

Replaceable Stainless Steel Wear Plate:

• Equipped with a replaceable stainless steel wear plate in the volute, enhancing durability and reducing maintenance costs.

Standard Service Tool:

• Includes a multi-tool for easy pump case removal, priming plug adjustment, drain plug maintenance, and hose coupling adjustments.

Durable Silicon Carbide Mechanical Seal:

• Features abrasion-resistant silicon carbide seals that extend wear life and reliability.

Cast Iron Volute and Impeller:

• Utilizes a rigid-mount cast iron volute and impeller to minimize wear and increase pump longevity.

Isolation Mounted Engine and Pump:

• High-performance mounts reduce vibration, preventing the pump from moving or sinking in soft soil conditions and extending component life.

Unique Conical Shaped Impeller:

• Enhances priming efficiency and increases discharge capacity with wide vanes designed for durability and wear resistance.

Protected by Honda Oil Alert®:

• Includes a feature that automatically shuts off the engine when low oil is detected, safeguarding the pump from damage.

Large Heavy Duty Metal Strainer:

• Allows large volumes of water and solids up to 1 1/16 inches to pass through, reducing the risk of clogging. Made from durable steel for rugged conditions.

Specifications:

• Engine: Honda GX270
• Displacement: 270 cc
• Compression Ratio: 8.5:1
• Oil Alert: Standard
• Pump Type: Trash Centrifugal Self-priming
• Volute: Rigid Mounted Cast Iron with Stainless Wear Plate
• Impeller: Conical Cast Iron
• Mechanical Seal (Pump Case / Impeller): Silicon Carbide / Silicon Carbide
• Priming Time: 90 seconds @ 16.4 feet
• Drive System: Direct
• Discharge Capacity: 317 gallons per minute
• Suction Port Diameter: 3 inches
• Discharge Port Diameter: 3 inches
• Total Head Lift: 82 feet
• Suction Head Lift: 26 feet
• Maximum Pressure: 36 psi
• Solids Handling: 1 1/16 inches
• Dimensions (LxWxH): 26.0" x 19.5" x 20.3"
• Dry Weight: 134 lb
• Fuel Capacity: 1.4 gallons
• Run Time @ Max Discharge: 1.5 hours
• Strainer Part #: 78325-YG1-003
• Residential Warranty: 24 months
• Commercial Warranty: 12 months

Description:

2" general purpose water pump

• 164 gal./min. capacity
• Durable silicon carbide mechanical seal
• Cast iron volute and impeller

Features:

• Engine: Easy starting Honda OHV commercial GX120 engine
• Mechanical Seal: Durable silicon carbide seals for extended wear
• Impeller: Honda-designed 4 vane high efficiency impeller
• Volute: Rigid-mount cast iron volute for reduced case wear
• Frame: Heavy duty full frame protection with tie-down capability
• Mounting: Isolation mounted engine and pump to minimize vibration
• Oil Alert: Protected by Honda Oil Alert® system
• Strainer: Large strainer allows up to 8 mm (5/16 in.) solids to pass through

Specification:

• Engine GX120
• Displacement 118cc
• Bore and stroke 2.4" x 1.7"
• Compression Ratio 8.5:1
• Oil Alert Std
• Pump Type Centrifugal, Self-priming
• Volute Rigid Mounted Cast Iron
• Impeller 4 Vane Cast Iron
• Mechanical Seal (Pump case / impeller) Silicon Carbide/Silicon Carbide
• Priming time 110 sec @ 16.4 ft.
• Drive system Direct
• Discharge capacity 164 gal/min
• Suction port diameter 2" NPT
• Discharge port diameter 2" NPT
• Total head lift 105 ft.
• Suction head lift 25 ft.
• Maximum pressure 45 psi
• Solids handling N/A
• Dimensions (LxWxH) 19.3" x 14.4" x 16.5"
• Dry weight 44 lb.
• Fuel Capacity 0.53 gal
• Run Time @ Max Discharge 1.7 hr
• Strainer Part # 78325-YG3-000
• Residential Warranty 24 months
• Commercial Warranty 12 months

Description:

Honda WT20X Trash Pump WT20XK4AC

FEATURES:

• Heavy-duty 2 construction trash pump.
• Easy starting Honda OHV commercial engine.
• 185 gal./min capacity.
• Solid handling capability up to 13/16".
• Cast iron volute and impeller.
• Quick clean out port.

Engine Specifications:

• Engine Model: GX160
• Displacement: 163 cc
• Bore and Stroke: 2.7" x 1.8"
• Compression Ratio: 9.0:1
• Oil Alert: Standard

Pump Specifications:

• Pump Type: Trash Centrifugal Self-priming
• Volute: Rigid Mounted Cast Iron with Stainless Wear Plate
• Impeller: Conical Cast Iron
• Mechanical Seal (Pump case / impeller): Silicon Carbide / Silicon Carbide
• Priming Time: 60 seconds @ 16.4 ft.
• Drive System: Direct
• Discharge Capacity: 185 gallons per minute
• Suction Port Diameter: 2 inches
• Discharge Port Diameter: 2 inches
• Total Head Lift: 85 feet
• Suction Head Lift: 26 feet
• Maximum Pressure: 37 psi
• Solids Handling: 13/16 inches

Dimensions and Weight:

• Dimensions (LxWxH): 24.4" x 18.1" x 18.3"
• Dry Weight: 104 lbs.

Fuel and Operation:

• Fuel Capacity: 0.82 gallons
• Run Time at Maximum Discharge: 1.5 hours

Warranty:

• Residential Warranty: 3 years
• Commercial Warranty: 3 years

Description:

1" general purpose pump

• 32 gal./min capacity
• Weighs only 13 lbs.
• Garden hose adaptor, suction hose, clamps, and strainer included

Specifications:

• Engine: GX25, 25cc displacement, 1.4" x 1.0" bore and stroke, compression ratio 8.0:1
• Pump Type: General purpose Centrifugal Self-priming
• Volute: Aluminum
• Impeller: Aluminum
• Mechanical Seal (Pump case / impeller): Carbon/Ceramic
• Priming Time: 80 sec. at 16.4 ft.
• Drive System: Direct
• Discharge Capacity: 32 gal./min.
• Suction Port Diameter: 1.0" NPT
• Discharge Port Diameter: 1.0" NPT
• Total Head Lift: 121 ft.
• Suction Head Lift: 26 ft.
• Maximum Pressure: 52 psi
• Dimensions (LxWxH): 13.4" x 8.7" x 11.6"
• Dry Weight: 13 lbs.
• Fuel Capacity: 0.56 qt
• Run Time @ Max Discharge: 0.9 hr
• Strainer Part #: 78325-YB0-711
• Residential Warranty: 2 years
• Commercial Warranty: 1 year

Description:

Features:

• Easy Starting 49cc Honda GXH50 Mini 4-Cycle Engine
• Uses regular gasoline - no need to mix oil & gas
• OHV Design
• Provides excellent torque & fuel efficiency
• Incredibly quiet & virtually smoke-free
• Honda Oil Alert® Protection
• Alerts you or shuts engine down if oil reaches an unsafe level
• Aluminum Volute & Impeller
• Provides durability and reduces overall weight
• Carbon Ceramic Mechanical Seal
• Increased abrasion resistance and lower maintenance
• Lightweight Design
• Weighs only 20 lbs.
• Standard Transport Handle
• Makes this pump easy to move around
• Includes:
• Strainer
• Hose Clamps
• EPA & CARB Compliant
• 2-Year Residential Warranty & 1-Year Commercial Warranty

Specification:

Water Pump Specifications:

• Pump
• Gallons Per Minute: 74 GPM
• Inlet Diameter: 1-1/2 Inch
• Outlet Diameter: 1-1/2 Inch
• Self Priming: Yes
• Pump Head Material: Aluminum
• Pump Housing Drain: Yes
• Quick Clean Out: No
• Mechanical Seal Material: Ceramic Carbon
• Impeller Material: Aluminum
• Handles Solids: No
• Suction Head: 26 Feet
• Maximum PSI: 52
• Total Head Lift: 121 Feet
• Submersible: No
• Engine
• Engine Brand: Honda
• Starting System: Recoil Start
• Low Oil Shutdown: Yes
• Engine Cycles: 4-Cycle
• CC: 49 cc
• Fuel Tank Size: 0.2 Gallons
• Consumer Engine Warranty: 2 Years
• Commercial Engine Warranty: 1 Year

Product Overview:

• Weight: 20 Pounds
• Made in USA: No
• Consumer Warranty: 2 Years
• Commercial Warranty: 1 Year
• Product Dimensions:
• Length: 12.8 Inches
• Width: 10.8 Inches
• Height: 14.8 Inches
• UPC: 786102006620
• Additional Model Numbers: WX15, WX15TA

Accessories:

• Tool Kit: No
• Strainer: Yes
• Float Switch: No
• Hose Couplings: No
• Hose: Sold Separately
• Hose Bands: Yes
• Transport Handle: Yes
• Wheel Kit: No
