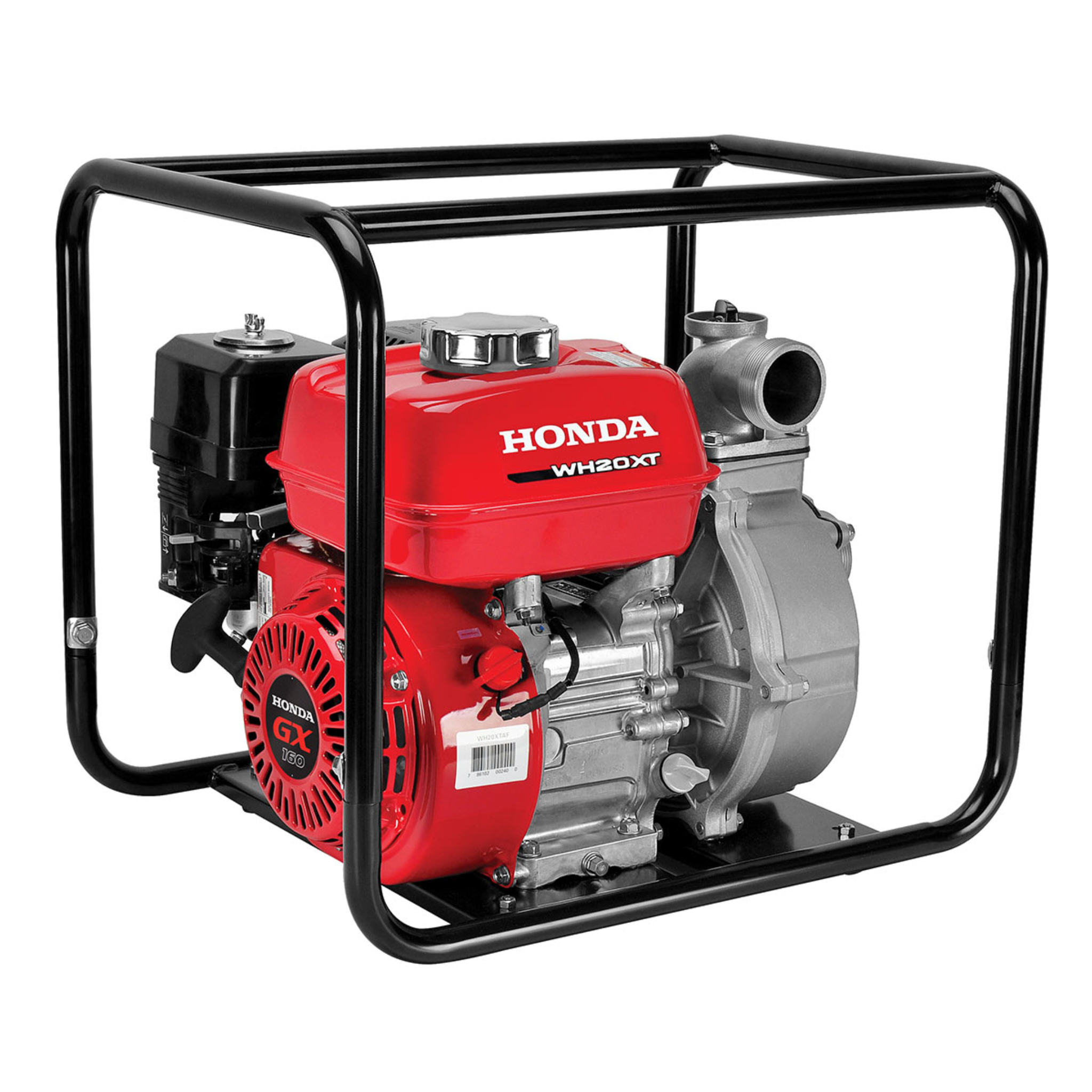

Honda Water Pump WH20XTAF

Honda Water Pump WH20XTAF

SKU: Honda Water Pump WH20XTAF-WH20XTAF
Categories : Honda
In Stock
Regular price$799.99
Categories : Honda, Products

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

Description:


2" high pressure water pump

  • 119 gal./min capacity
  • 64 psi max.
  • Cast iron volute and impeller


Features:

  • High Pressure Capability:
  • Designed for applications requiring high pressure, with a maximum pressure of 64 psi. Ideal for sprinkler systems or use with nozzles.
  • Easy Starting Honda OHV Commercial Engine:
  • Features the durable Honda GX series commercial-grade engine known for reliable starting and providing ample power in tough conditions.
  • 119 Gallons per Minute Capacity:
  • Capable of delivering up to 119 gallons of water per minute, suitable for various high-pressure pumping tasks.
  • Cast Iron Volute and Impeller:
  • Utilizes a rigid-mount cast iron volute and impeller to reduce case wear, thereby extending the life of the pump.
  • Heavy-Duty Full Frame Protection:
  • Provides robust protection for the pump and includes tie-down locations for secure transport.
  • Lightweight Aluminum Case:
  • The pump features a lightweight aluminum case, enhancing portability without compromising durability.


Specifications:

  • Engine: Honda GX160
  • Displacement: 163cc
  • Bore and Stroke: 2.7" x 1.8"
  • Compression Ratio: 9.0:1
  • Oil Alert: Not Applicable
  • Pump Type: High Pressure, Centrifugal, Self-priming
  • Volute: Rigid Mounted Cast Iron
  • Impeller: Cast Iron
  • Mechanical Seal (Pump Case / Impeller): Carbon / Ceramic
  • Priming Time: 80 seconds at 16.4 feet
  • Drive System: Direct
  • Discharge Capacity: 119 gallons per minute
  • Suction Port Diameter: 2" NPT
  • Discharge Port Diameter: 2" NPT
  • Total Head Lift: 148 feet
  • Suction Head Lift: 26 feet
  • Maximum Pressure: 64 psi
  • Solids Handling: Not Applicable
  • Dimensions (LxWxH): 20.5" x 15.7" x 18.1"
  • Dry Weight: 60 lb
  • Fuel Capacity: 0.82 gallons
  • Run Time @ Max Discharge: 1.5 hours
  • Strainer Part #: 78325-YB7-702
  • Residential Warranty: 24 months
  • Commercial Warranty: 12 months

Width Weight Height Length
15.7 Inch 60 Pounds 18.1 Inch 20.5 Inch
