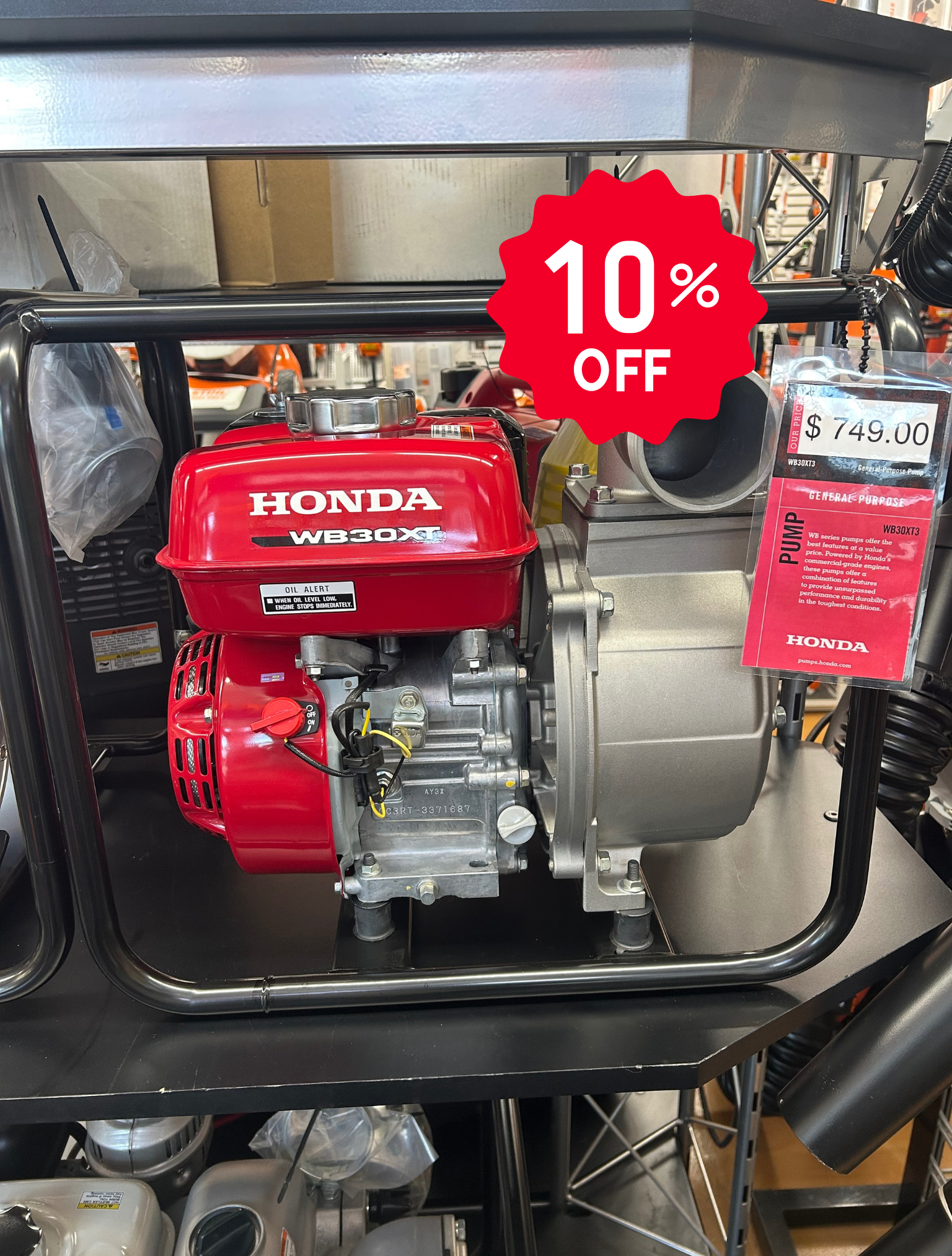

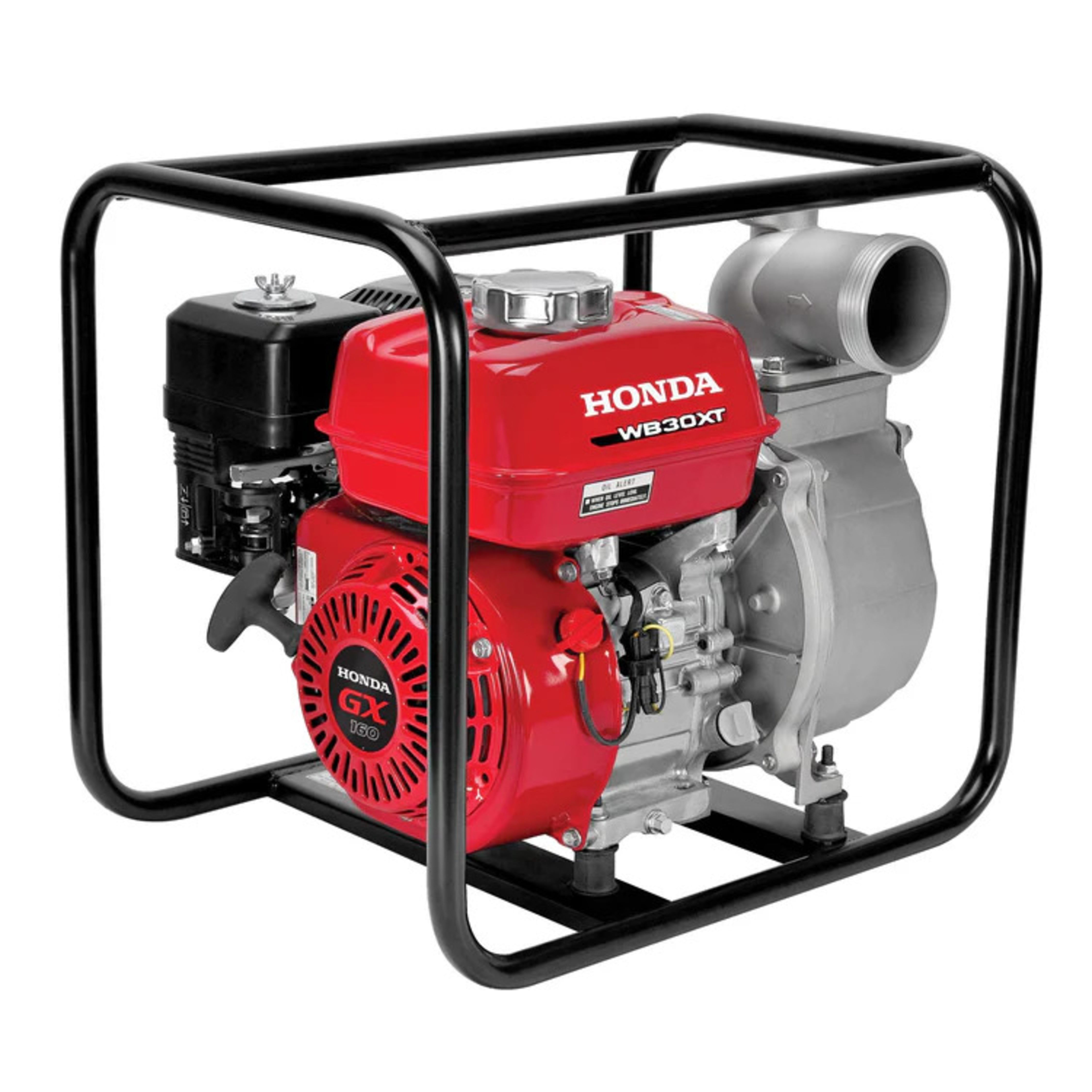

Honda WATER PUMP WB30XT3A
$749.99
Title
Description:

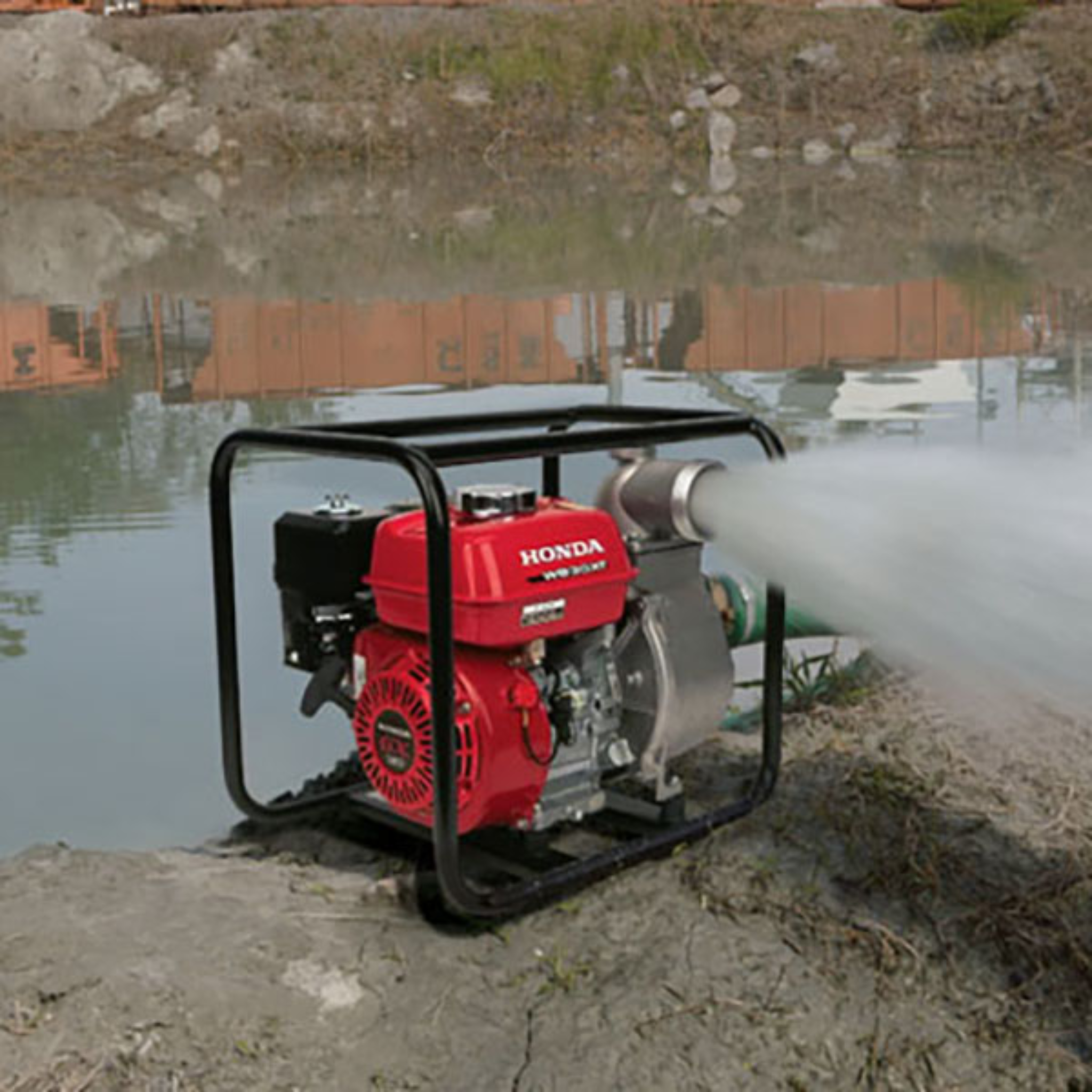

3" general purpose water pump
- General purpose, centrifugal 3" pump
- Easy starting Honda OHV commercial engine
- 290 gal./min. capacity
- Silicon carbide mechanical seal
- Cast iron volute and impeller
Features:
- Easy starting Honda OHV commercial engine, part of the durable Honda GX series
- Durable silicon carbide mechanical seal for extended wear
- 4 vane high efficiency impeller designed by Honda for improved performance
- Cast iron volute for rigid-mount and reduced case wear
- Heavy duty full frame protection with convenient tie-down locations
- Isolation mounted engine and pump to minimize vibration and increase durability
- Protected by Honda Oil Alert® to shut off the engine when low oil is detected
- Large strainer allows up to 8 mm (5/16 in.) solids to pass through, reducing clogging
Specifications:
- Engine: GX160, 163cc displacement, 2.7" x 1.8" bore and stroke, compression ratio 9.0:1
- Oil Alert: Standard
- Pump Type: Centrifugal, Self-priming
- Volute: Rigid Mounted Cast Iron
- Impeller: 4 Vane Cast Iron
- Mechanical Seal (Pump case / impeller): Silicon Carbide/Silicon Carbide
- Priming Time: 150 sec @ 16.4 ft.
- Drive System: Direct
- Discharge Capacity: 290 gal/min
- Suction Port Diameter: 3" NPT
- Discharge Port Diameter: 3" NPT
- Total Head Lift: 85 ft.
- Suction Head Lift: 25 ft.
- Maximum Pressure: 37 psi
- Dimensions (LxWxH): 20.1" x 15.2" x 17.9"
- Dry Weight: 57 lb.
- Fuel Capacity: 0.82 gal
- Run Time @ Max Discharge: 1.9 hr
- Strainer Part #: 78325-YG4-000
- Residential Warranty: 24 months
- Commercial Warranty: 12 months
Width | Weight | Height | Length |
---|---|---|---|
15.2 Inch | 57 Pounds | 17.9 Inch | 20.1 Inch |
