Description:

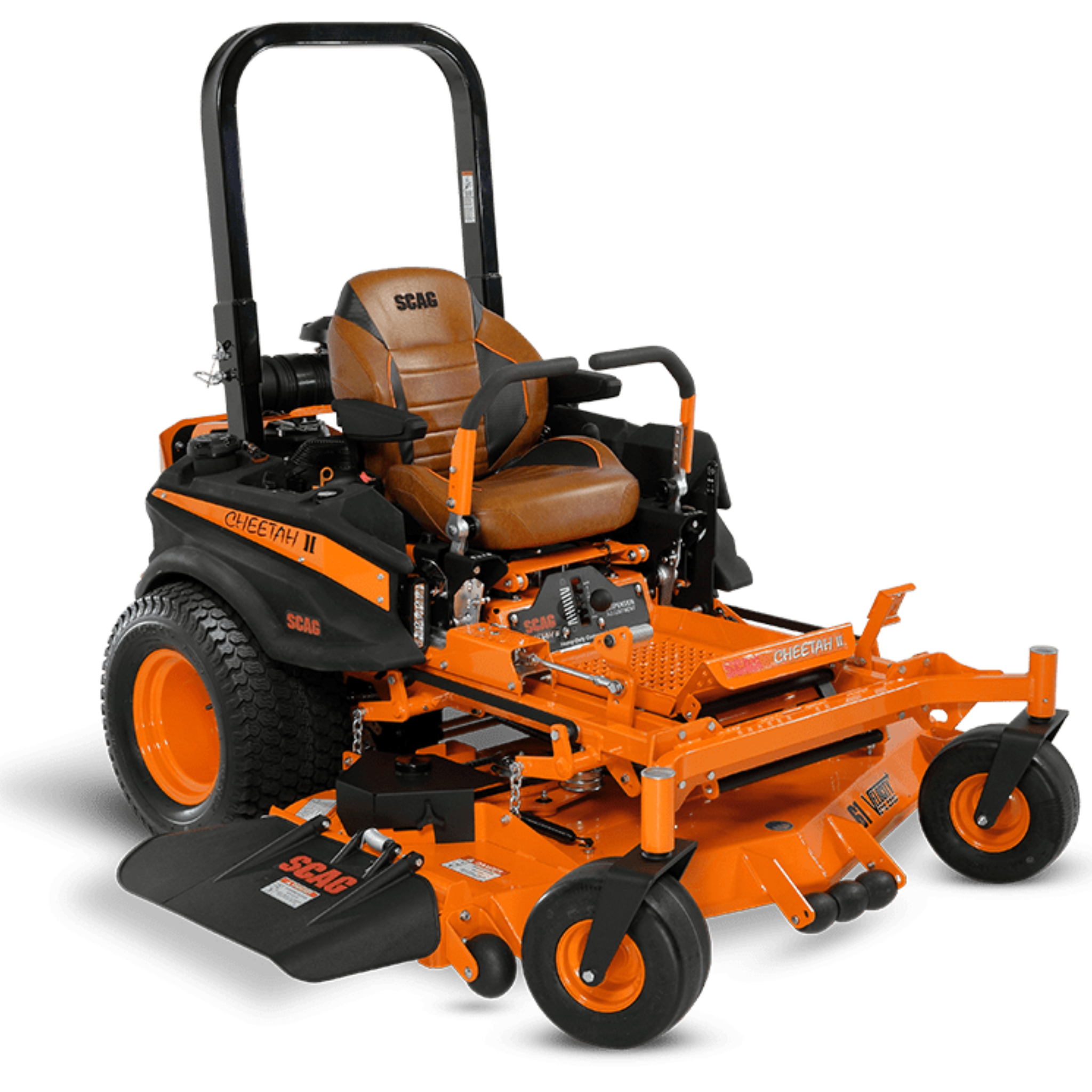

In your world, it pays to become more swift, agile and powerful. Make it a reality with the quick and precise Cheetah II™, a machine that devours jobs at a pace you’ve only dreamed of while delivering an unmatched quality-of-cut and incredibly smooth ride. With the Cheetah II, you’ll never be caught from behind.

Features:

Cutting Width Options: 61" or 72"

Velocity Plus™ Decks: Experience unparalleled cutting quality and efficient discharge with Scag’s Velocity Plus™ decks. These feature ultra-tough cast-iron spindles with tapered roller bearings and a top-mounted grease fitting equipped with a relief valve to prevent over-greasing.

Ogura PTO Clutch Brake: The Ogura GT5 PTO Clutch Brake offers exceptional starting and stopping power for the cutter deck, boasting 350 ft. lb. of holding strength and an adjustable air gap for extended durability.

Heavy-Duty, Double-Tube Steel Main Frame: Built for longevity and strength, the Cheetah™ features a solid double-tube steel main frame. Its wide mower stance and extra-low center of gravity ensure ultimate stability, along with a replaceable front caster-wheel weldment.

Hydro-Gear ZT-5400 Transaxles: Enjoy speeds of up to 16 mph with the two-speed ZT-5400 transaxle. Choose Low Range for speeds up to 12 mph or High Range for up to 16 mph. The transaxle’s design minimizes hoses and potential leak points, enhancing reliability.

Ease of Maintenance: Designed for minimal downtime, the Cheetah™ features flip-up components and easy-to-access grease Zerks, simplifying maintenance tasks and maximizing productivity.

Cheetah II Operator Suspension System: Experience unparalleled comfort with the Cheetah II Operator Suspension System, offering five settings from soft to firm. This system isolates the operator from rough terrain, ensuring comfort without compromising cutting quality. A coil-over shock provides targeted suspension action, complemented by a seat with 4-point rubber iso-mounting for additional shock absorption.

Tiger Eye™ Advanced Monitoring System: Keep track of critical system functions in real-time with the Tiger Eye™ Advanced Monitoring System. This intuitive dashboard provides operators with essential information at a glance, directly from the seat.

12-Volt Outlet: Stay connected and charged with the convenient 12-volt outlet, perfect for powering small accessories or keeping mobile devices ready for use.

Powerful Engine Options: Choose from a range of robust V-twin engine options, delivering up to 40 HP to tackle even the toughest jobs with ease.

Specification:

General Specifications:

• Total Fuel Capacity: 13 gallons
• Drive Tires: 24" x 12"-12"
• Caster Tires: 13" x 6.5"-6"
• Seat: 4-point iso-mounted mid-back mounted on operator-suspension platform

Drive System:

• Drive System Type: Hydro-Gear ZT5400 Transaxle, Two-Speed
• Pumps: Internal Pump - 16 cc
• Motors: Internal Motor - 21 cc
• Forward Ground Speed:
• High-Speed: 16 mph
• Low-Speed: 12 mph
• Reverse Ground Speed:
• High-Speed: 8 mph
• Low-Speed: 5 mph
• Parking Brake: Foot-operated pedal

Deck Specifications:

• Cutting Widths: 61" and 72"
• Type: Velocity Plus™
• Cutting Height: 1.25" to 5" in 0.25" increments
• Deck Lift: Adjustable foot-operated pedal
• Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles.
• Spindles: Cast-iron housing with tapered roller bearings.
• Blade Engagement: Ogura GT5 (350 ft lb)

Dimensions:

• 61" Cheetah:
• Length: 87"-91.25"
• Width (chute down): 73.5"
• Width (chute in transport position): 62.75"
• Height (ROPS folded): 49.5"
• Height (ROPS up): 67"
• Weight: 1,364-1,392 lb

Engine:

• 38 HP Kawasaki® FX Series EFI (Electronic Fuel Injection)
