Description:

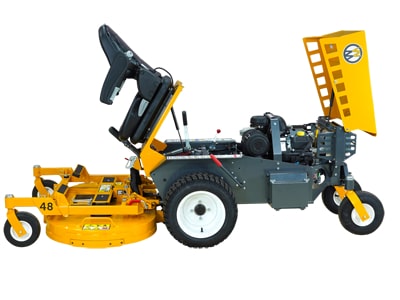

This higher horsepower, new generation version of the Model B adds a Kohler 26.5 HP, EFI engine and includes a redesigned unitized chassis and front body. The new clamshell body makes drivetrain component access easier, and the Ogura electric clutch with Soft Start adds convenience and durability for the operator.

An oversized Donaldson 5 inch air filter is fitted with a turbine style pre-cleaner and restriction gauge to reduce maintenance intervals while providing a robust filtration system. A new rear axle design improves rough condition handling, coupled with Walker’s Comfort Seat and optional 20” drive tires, make the B27i a comfortable machine that is powerful, efficient, and ready for larger decks and difficult conditions.

With numerous deck sizes and styles, optional LED Lights, Suspension Seat, Big Tire Kit, and Utility Dump Bed, the Model B is customizable to meet the needs of the most demanding customers. Contact your local dealer to request a demo today.

Specifications:

• Manufacturer: Kohler
• Model: ECH749
• Fuel System: EFI (Electronic Fuel Injection)
• Cooling System: Air
• Displacement: 747 cc (45.6 cu. in.)
• Max Power: 26.5 HP @ 3600 RPM
• Max Torque: 40 ft-lbs
• Fuel Capacity: 4.7 gal (17.8 liters)

Comfort & Features:

• Seat: Comfort Seat
• Tires: 18 x 8.5-10 (Pneumatic 4-Ply Low-Profile)

Weight:

• Weight (Tractor Only): 606 lbs (275 kg)
• Weight (Tractor with M48 Deck): 812 lbs (385 kg)

Dimensions:

• Height: 39.5 in (100 cm)
• Width: 49 in (125 cm)
• Length: 90.75 in (230 cm)
