Description:

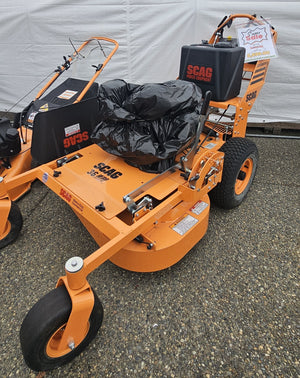

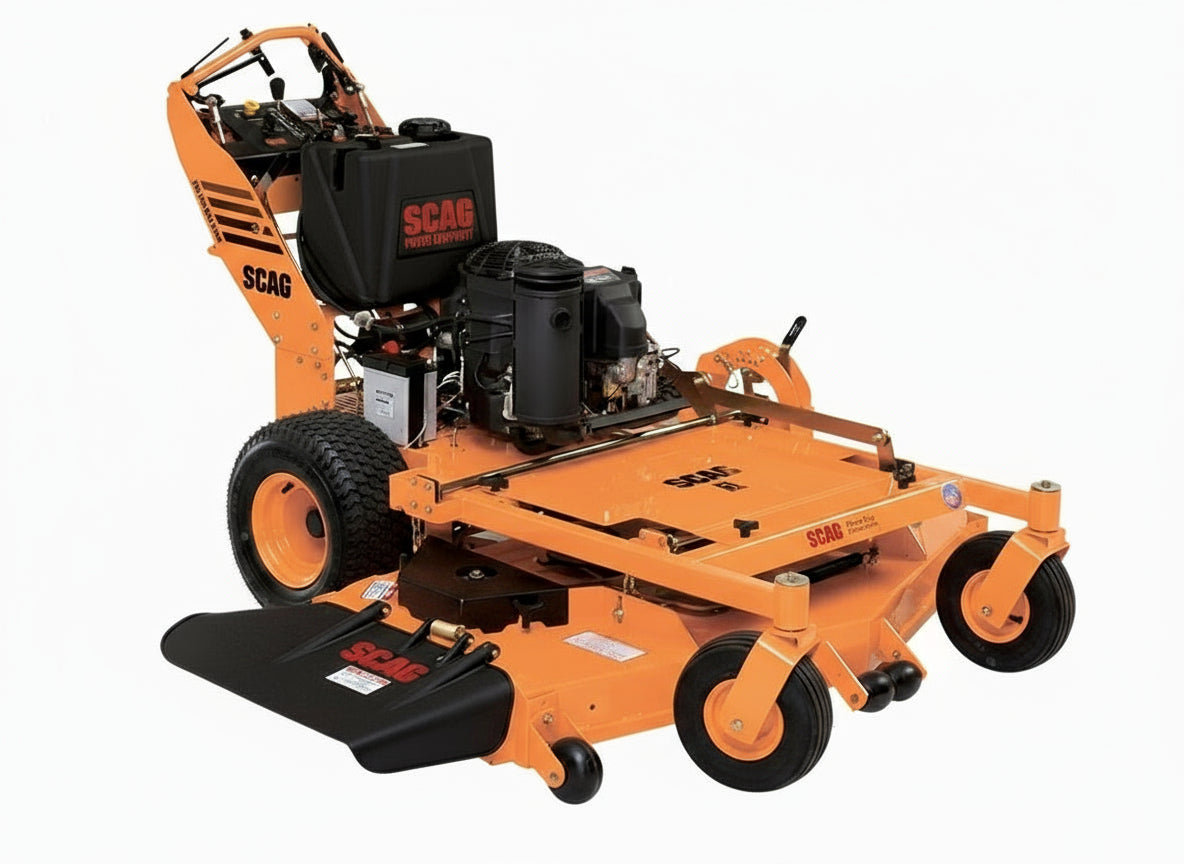

Get more jobs done from dawn to dusk in more comfort than ever before with the SWZT, featuring ultra-comfortable, ergonomic controls that contour to your hands. Equipped with our legendary toughness and durability, it is packed with features that deliver incredible power, smooth operation, and a long lifespan.

Features:

Ogura PTO Clutch Brake

Other manufacturers opt for less expensive, smaller-capacity, nonadjustable, “disposable” clutches. Not Scag®. Scag PTO clutch brakes are manufactured by Ogura, the world’s best manufacturer of electromagnetic clutches, providing smooth blade engagements and fast blade stops.

All Ogura clutches feature an adjustable air gap. What does that mean to you? It means that when most clutches are worn out and must be replaced at a significant cost to YOU, the Ogura clutch can be easily adjusted to bring it back into specification (your Scag dealer can perform this adjustment).

These clutches also feature industry-leading torque values (the holding power that links the engine to the cutter-deck drive system) to ensure solid drive to the cutter deck and no slipping in heavy conditions.

Specifications:

Dimensions

• Length: 75.5″
• Height: 44″
• Tracking Width: 36.25″
• Width (Chute Down): 48.5″
• Width (Chute in Transport Position): 37″
• Weight: 550 lbs

General

• Total Fuel Capacity: 5.5 gallons
• Drive Tires: 18″ x 6.5″-8″
• Caster Tires: 9″ x 6.5″-4″
• Seat: N/A

Drive System

• Drive System Type: Hydro-Gear ZT2800 Transaxle
• Pumps: Internal Pump: 10 cc
• Motors: Internal Motor: 16 cc
• Forward Ground Speed: Up to 7 mph
• Reverse Ground Speed: 3 mph
• Parking Brake: Hand lever

Deck

• Cutting Width: 36″
• Type: Hero Cutter Deck
• Cutting Height: 1.5″ to 4.5″ in 0.25″ increments
• Deck Lift: Hand lever
• Construction: Dual-plate cutter deck with reinforcement at cutter deck spindles
• Spindles: Aluminum housing with sealed ball bearings
• Blade Engagement: Ogura GT1-BS03 (110 ft-lb), with adjustable air-gap for extended life
