Description:

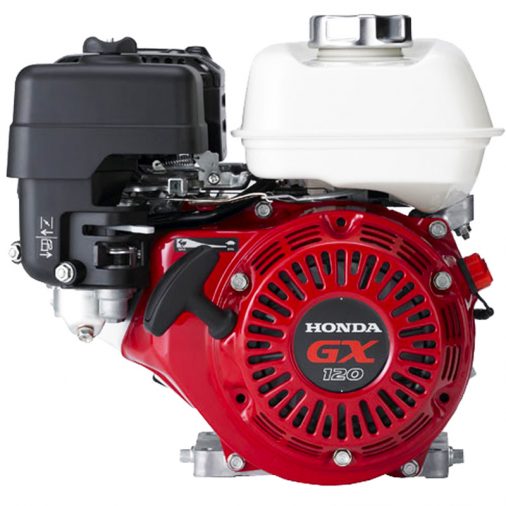

Genuine Honda GX120 HX2, UT3 Engine 3/4" Horizontal Shaft with Oil Alert 6:1 Gear Reduction Gear Box Honda GX120 UT3 HX2 for Quarter Midget Racing. These engines are sold individually, but if you would like to purchase per pallet, please give us a call or send us an email (Qty. 12 per pallet). Factory Honda Boxes are opened by HPD to add additional packing foam. FOR RACING USE ONLY Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: the GX120 lives up to the legend. Lower noise levels, lower vibration, and lower emissions – without sacrificing power output or performance.

COMMON APPLICATIONS

Commercial lawn and garden equipment Tillers / cultivators Generators Construction / industrial equipment Agricultural equipment Water pumps Specifications Engine Type Air-cooled 4-stroke OHV Bore x Stroke 60 X 42 mm Displacement 118 cm3 Net Power Output* 3.5 HP (2.6 kW) @ 3,600 rpm Net Torque 5.4 lb-ft (7.3 Nm) @ 2,500 rpm PTO Shaft Rotation Counterclockwise (from PTO shaft side) Compression Ratio 8.5:1 Lamp/Charge coil options 25W, 50W Carburetor Butterfly Ignition System Transistorized magneto Starting System Recoil Lubrication System Splash Governor System Mechanical Air cleaner Dual Element Oil Capacity 0.59 US qt. (0.56 L) Fuel Tank Capacity 2.1 U.S. qts (2.0 liters) Fuel Unleaded 86 octane or higher Dry Weight 29 lbs. (13.0 kg) PTO SHAFT OPTIONS L type Reduction type PTO Q type Straight shaft S type Straight shaft (metric) T type Straight shaft AR type Rammer

DIMENSIONS

Length (min) 11.7” (297 mm) Width (min) 13.6” (346 mm) Height (min) 13.0” (329 mm) Fuel Efficient, High Output Operation Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency OHV design for increased efficiency and optimal power transfer High compression ratio for better fuel efficiency Smooth Performance Precision engineered components result in lower vibration Ball bearing supported crankshaft for greater stability Exceptionally Quiet Even quieter than previous model! Large capacity, multi-chamber exhaust system Reduced mechanical noise due to light weight, noise-reducing materials Forged steel crankshaft and rigid crankcase Helical cut gears Sophisticated air intake system Proven Reliability Oil Alert New carburetor chamber coating and carburetor filter help to protect against fuel impurities Cast iron cylinder sleeve High quality materials, fit, and finish Dual element air cleaner Fuel Valve 3-Year Limited Warranty Easy To Use and Maintain Simple throttle control Large fuel tanks Large automotive type fuel cap Dual oil drains and fill Easy, convenient, heavy duty control box Easily accessible spark plug Easy Starting Heavy duty recoil starter Ergonomic, easy to grip recoil rope design Automatic mechanical de-compression system Emissions Compliant Lower emissions, same power output! CARB and EPA certified No catalyst necessary Common Applications Pressure washers Commercial lawn and garden equipment Tillers / cultivators Generators Construction / industrial equipment Agricultural equipment Small vehicles Water pumps Common Applications Commercial lawn and garden equipment Tillers / cultivators Generators Construction / industrial equipment Agricultural equipment Water pumps
