Description:

The all-new 72" Turf Tiger II with a 25 HP Kubota Diesel engine stands heads and tails above the crowd in power, durability and performance. This industry benchmark has been re-engineered to be as easy on the operator as it is efficient on tough jobs in the field. No matter how challenging the terrain and cutting conditions, the Turf Tiger II makes mowing a snap.

From the heavy-duty,Tri-Plate Velocity Plus™ cutter decks to its extra strength double-tube steel frame to the dual 16cc hydraulic pumps and high-torque wheel motors, this cat is ready for action. The Turf Tiger II features the exclusive Command-Comfort Operator Station with adjustable 4-point iso-mounted suspension seat and Quick-Fit adjustable steering control levers to make your time spent in the driver’s seat more comfortable and more productive.

Specifications

• Turf Tiger II - Product Dimensions 72" Turf Tiger II Diesel
• Length 92"
• Width (chute down) 83"
• Width (chute in transport position) 73.75"
• Height (ROPS down) 46.5"
• Height (ROPS up) 68"
• Weight 1739 lbs.

Description:

Welded and fabricated using military-grade steel for years of dependable performance, the SFC-30 Finish Cut Walk-Behind Mower is no pushover. Packing big productivity and versatility into a compact form, this commercial-grade machine delivers a beautiful, professional quality-of-cut, helping you put the finishing touches on the job or at home.

Description:

Achieve command perfection with the 61" Hero Cutter Deck powered by a 22 HP Kawasaki® FS651V electric-start engine. This mower combines heavy-duty construction with innovative features to deliver exceptional performance and durability.

Features:

Deep, Fabricated, and Welded Cutter Decks: The heavy-duty Hero Cutter Deck design ensures an excellent quality-of-cut and can handle large volumes of grass at higher speeds, supported by aluminum sealed ball bearing blade-drive spindles.

Ergonomic Control System: Ultra-comfortable controls are ergonomically designed to fit the natural angles of your arms, ensuring easy operation hour after hour while keeping your hands safe when mowing around obstacles.

Easy-Adjust Cutter-Deck Height System: Innovative height-of-cut adjustment allows for quick and convenient changes without the need for tools.

Heavy-Duty Drive System: Dual ZT-2800 transaxles provide smooth, infinitely variable speed control with speeds up to 7 MPH, supported by all-metal internal gears and cooling fans for lower operating temperatures.

Heavy-Duty Construction: Full commercial-grade construction ensures long-lasting durability and dependable service, making it suitable for demanding applications.

Ogura PTO Clutch Brake: Provides strong and adjustable starting and stopping power for the cutter deck, ensuring reliable performance and extended life.

Ease of Maintenance: Easy-access mower design and conveniently located grease Zerks simplify maintenance, reducing downtime and maximizing productivity.

Powerful and Efficient Engine Options: Choose from reliable Kawasaki® FS V-twin engines delivering efficient power up to 22 HP.

Specifications:

Total Fuel Capacity: 5.5 gallons

Drive Tires: 18" x 6.5"-8" (36"); 18" x 8.5"-8" (48", 52", and 61")

Caster Tires: 9" x 6.5"-4"

Drive System Type: Hydro-Gear ZT2800 Transaxle

Pumps: Internal Pump: 10 cc; Motors: Internal Motor: 16 cc

Forward Ground Speed: Up to 7 mph; Reverse Ground Speed: 3 mph

Parking Brake: Hand lever

Cutting Widths: 36", 48", 52", and 61"

Cutting Height: 1.5" to 4.5" in .25" increments

Deck Lift: Hand lever

Construction: Dual-plate cutter deck constructed of 2 steel plates with reinforcement plate at cutter deck spindles

Spindles: Aluminum housing with sealed ball bearings

Blade Engagement: Ogura GT1-BS03 (110 ft lb); Adjustable air-gap for extended life

Dimensions:

Length: 80"

Height: 44"

Tracking Width: 41.75"

Width (chute down): 73.5"

Width (chute in transport position): 62"

Weight: 700 lb

Accessories:

Fabric Bag Grass Catcher

Hurricane Mulch System

Mulch Plate

Chrome Wheel Covers

Blade Buddy

Description:

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.

Features:

Ogura PTO Clutch Brake

Other manufacturers opt for less expensive, smaller-capacity, nonadjustable, “disposable” clutches. Not Scag®. Scag PTO clutch brakes are manufactured by Ogura, the world’s best manufacturer of electromagnetic clutches, providing smooth blade engagements and fast blade stops.

All Ogura clutches feature an adjustable air gap. What does that mean to you? It means that when most clutches are worn out and must be replaced at a significant cost to YOU, the Ogura clutch can be easily adjusted to bring it back into specification (your Scag dealer can perform this adjustment).

These clutches also feature industry-leading torque values (the holding power that links the engine to the cutter-deck drive system) to ensure solid drive to the cutter deck and no slipping in heavy conditions.

Hero™ Cutter Deck

Command perfection:

Scag® cutter decks have always given our competition a serious case of deck envy. Many try to duplicate the performance, but none can match it. The Hero™ cutter deck is an outstanding performer and delivers beautiful results.

The Hero™ Cutter Deck provides the top line power, precision and performance professionals and homeowners demand. This extra-strong, fully fabricated and welded deck features “maintenance-free” aluminum spindles for years of worry-free performance

Strength — Scag’s tough cutter-blade spindles and Dual-Plate construction ensure solid performance and long life.

Productivity — An extra-large discharge opening enhances discharge for even clipping dispersal.

Engines

Kawasaki FR Series Engines

Residential-Grade Power:

Kawasaki® FR Series engines are compact, 90-degree, V-Twin engines that provide an ideal amount of torque and power. Operation is smooth and quiet for years of dependable homeowner operation. Other features include:

• Two-channel forced-air cooling.
• Pressurized lubrication system.
• High-energy, electronic spark ignition.
• Easy-access oil fill.
• 90-degree V-Twin design with overhead V-valve.
• Cast-iron liners.
• Automatic compression release.

Specifications:

• Model: Liberty Z 42
• Length: 68.5″
• Width (chute down): 54.5″
• Width (chute in transport position): 43″
• Height: 41″
• Weight: 595 lb
• Total Fuel Capacity: 3.5 gallons
• Drive Tires: 20″ x 10″-8″
• Caster Tires: 11″ x 4″-5″
• Seat: Optional armrest kit available
• Drive System Type: Hydro-Gear ZT-2800 Transaxle
• Internal Pump: 10 cc
• Internal Motor: 10 cc (Tuff Torq) / 16 cc (Hydro-Gear)
• Forward Ground Speed: 7 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• Cutting Widths: 42″
• Type: Heavy-Duty Hero Cutter Deck
• Cutting Height: 1.5″ to 4.5″ in .25″ increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck of 2 steel plates
• Spindles: Aluminum housing with sealed ball bearings
• Blade Engagement: Ogura GT1 (74 ft lb)
• Adjustable Air-Gap: For extended life

Description:

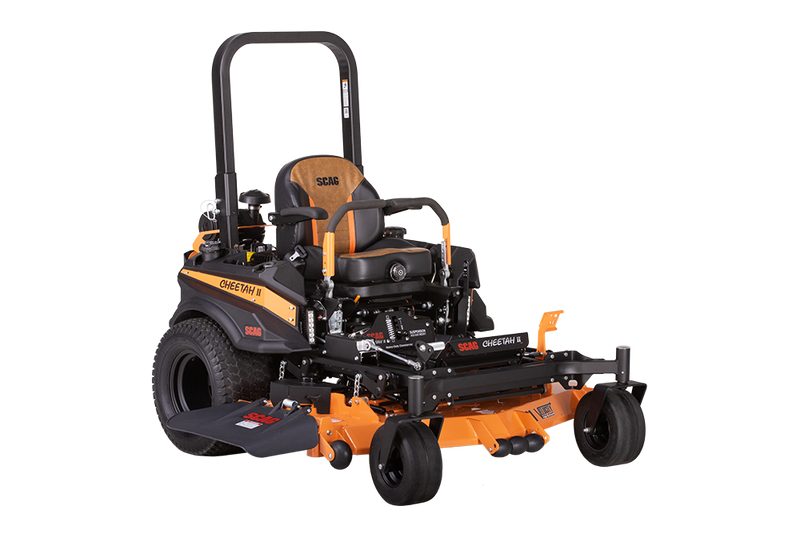

The Scag Cheetah II SCZII-61V-38CV-EFI is a zero-turn mower built for those who demand both exceptional performance and unmatched comfort. Here's a breakdown of its key features:

• Powerful Engine: Choose between a 38 HP Kawasaki® or 37 HP Briggs & Stratton™ air-cooled, electronic fuel injection (EFI) engine for tackling even the toughest mowing jobs.
• Unmatched Cut Quality: The Velocity Plus™ deck with a nearly half-inch thick Tri-Plate top ensures a clean, professional-looking cut, even at high speeds.
• Smooth Ride: Hydro-Gear ZT-5400 transaxles provide speeds up to 16 mph and a comfortable ride, while the anti-scalp rollers prevent damage to your turf.
• Effortless Maneuvering: The zero-turn design allows for sharp turns and easy navigation around obstacles.
• Operator Comfort: The operator suspension system with adjustable settings provides a smooth ride, even on uneven terrain.

Additional Highlights:

• Durable Construction: The heavy-duty, double-tube steel main frame ensures long-lasting performance.
• Easy Maintenance: Features like flip-up components and easy-to-reach grease zerks simplify maintenance.

In essence, the Scag Cheetah II SCZII-61V-38CV-EFI is a premium zero-turn mower that delivers outstanding cutting power, superior maneuverability, and a comfortable operator experience. It's ideal for homeowners with large lawns or those who value professional-grade results.

DESCRIPTION

52" Hero Cutter Deck, 27 HP Scag SR Series - 803 cc displacement

FEATURES

• Command perfection - Deep, Fabricated, and Welded Cutter Decks: Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
• Ogura PTO Clutch Brake - Strong, Adjustable Clutch for Long Life: The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.
• Easy Foot-Pedal Deck Lift - Easy Up, Easy Down: Foot-pedal cutter-deck lift is spring-assisted and makes raising the cutter deck smooth and easy.
• Contoured, Bolstered, High-Back Seat - Ride in Comfort: This ultra-comfortable and adjustable (with tools) and contoured for improved comfort, and features armrests.
• Hydro-Gear ZT-2800 Transaxles - Speeds Up To 8 MPH: The ZT drive system's dual hydro transaxles with all-metal gears and spin-on oil filters to deliver smooth, solid power to the drive wheels. Large cooling fans keep temperatures low and extend component life.
• Low-Maintenance Mower Design - More Uptime: Fewer grease points increase operator convenience and ease-of-ownership.
• High-Strength Steel Frame - Solid Design for Years of Dependable Service: Tubular-steel main frame delivers unmatched strength and longevity.
• Powerful and Efficient Engine Options - Reliable Power, Up To 24 HP: The 22 hp and 24 hp Kohler® 7000 Series engines with PRO Performance filtration provide smooth, reliable power.

SPECIFICATIONS

• Description: 52" Hero Cutter Deck, 27 HP Scag SR Series - 803 cc displacement
• Total Fuel Capacity: 6.5 gallons
• Drive Tires: 20" x 10"-10"
• Caster Tires: 11" x 6"-5"
• Seat: Padded with arm rests, adjustment forward and back (tools required)
• Drive System Type: Hydro-Gear ZT2800 Transaxle
• Pumps: Internal Pump: 10 cc
• Motors: Internal Motor: 16 cc
• Forward Ground Speed: 8 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand-activated lever
• Cutting Widths: 48" and 52"
• Type: Hero Cutter Deck
• Cutting Height: 1.5" to 4.5" in .25" increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT1 (74 ft lb); Adjustable air-gap for extended life.

DIMENSIONS

• Length: 73"
• Width (chute down): 64.5"
• Width (chute in transport position): 53"
• Height: 60"
• Weight: 765 lb

ACCESSORIES

• 2-Bag Grass Catcher
• Fabric Bag Grass Catcher
• Hurricane Mulch System
• Mulch Plate
• Tiger Stripe Kit
• Light Kit
• Trailer Hitch
• Chrome Wheel Covers
• Blade Buddy

DESCRIPTION

36" Hero Cutter Deck, 14.5 HP Kawasaki® FS481V - recoil-start engine

FEATURES

• Command perfection - DEEP, FABRICATED, AND WELDED CUTTER DECKS: Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
• Ergonomic Control System - Easy Operation, Hour After Hour: Ultra-comfortable, ergonomic controls not only contour to the natural angles of your extended arms, but are placed to keep your hands out of harm's way when mowing next to trees and bushes.
• Easy-Adjust Cutter-Deck Height System - No Tools Needed: Innovative, rider-style height-of-cut adjustment is quick and convenient.
• Heavy-Duty Drive System - Speeds Up To 7 MPH: Dual ZT-2800 transaxles utilize all-metal internal gears for long life and deliver smooth, infinitely variable speed and bi-directional control. Power comes from a 10 cc variable-displacement, seven-piston pump and a 16 cc fixed-displacement, seven-piston motor in each transaxle. Cooling fans help keep operating temperatures lower.
• Heavy-Duty Construction - Solid Design for Years of Dependable Service: Full commercial-grade construction ensures years of productive use.
• Ogura PTO Clutch Brake - Strong, Adjustable Clutch for Long Life: Provides excellent starting and stopping power for the cutter deck and an adjustable air gap for long life.
• Ease of Maintenance - More Uptime: Easy-access mower design, an unrestricted engine area and easy-to-reach grease Zerks make servicing the SWZT simple, so you can be in the shop less and on the job more.
• Powerful and Efficient Engine Options - Reliable Power, Up To 22 HP: Proven and dependable Kawasaki® FS V-twin engine delivers efficient power.

SPECIFICATIONS

• Description: 36" Hero Cutter Deck, 14.5 HP Kawasaki® FS481V - recoil-start engine
• Total Fuel Capacity: 5.5 gallons
• Drive Tires: 18" x 6.5"-8" (36"); 18" x 8.5"-8" (48", 52" and 61")
• Caster Tires: 9" x 6.5"-4"
• Seat: n/a
• Drive System Type: Hydro-Gear ZT2800 Transaxle
• Pumps: Internal Pump: 10 cc
• Motors: Internal Motor: 16 cc
• Forward Ground Speed: Up to 7 mph
• Reverse Ground Speed: 3 mph
• Parking Brake: Hand lever
• Cutting Widths: 36", 48", 52" and 61"
• Type: Hero Cutter Deck
• Cutting Height: 1.5" to 4.5" in .25" increments
• Deck Lift: Hand lever
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT1-BS03 (110 ft lb); Adjustable air-gap for extended life.

DIMENSIONS

• Length: 75.5"
• Height: 44"
• Tracking Width: 36.25"
• Width (chute down): 48.5"
• Width (chute in transport position): 37"
• Weight: 550 lb

ACCESSORIES

• Fabric Bag Grass Catcher
• Hurricane Mulch System
• Mulch Plate
• Chrome Wheel Covers
• Blade Buddy

PRODUCT SPECS

ENGINE

Engine ManufacturerKawasaki®Horse Power14.5 hpEngine TypeFS481V - recoil-start

GENERAL

TransmissionHydro-Gear ZT2800 TransaxleWheel Size18 in. x 6.5 in.-8 in.Fuel Capacity5.5 gal.

DECK

Deck Size36 in

Description:

The Scag® SFC-21 Finish-Cut Walk-Behind mower is the compact solution you've been searching for, offering impressive productivity and versatility within its 21" wide platform. Whether you're on the job or tending to your own lawn, the SFC-21 ensures professional-quality results with each pass, leaving behind a beautifully manicured lawn.

Equipped with 3-in-1 versatility, including mulching, bagging, and optional side discharge capabilities, this mower empowers you to handle various challenges with ease while achieving exceptional results.

Features:

Fine-Tuned and Simple:

• Easy height-of-cut adjustment: Allows for cutting heights ranging from 1.5" to 4.5" in 0.5" increments, providing flexibility to adapt to different grass lengths and preferences.

The Scag® Patriot Z 52 is a true commercial‑grade zero‑turn mower designed for professional landscapers and demanding property owners who need durability, power, and consistent cut quality. Built with Scag’s heavy‑duty Velocity Plus™ cutter deck and powered by a Kawasaki FX‑Series engine, it delivers exceptional airflow, clean striping, and reliable performance in tough mowing conditions. This mower—identified as SPZ‑52H‑22FX—is engineered to handle daily workloads while maintaining the precision Scag is known for.

Key Features

• Kawasaki® FX‑Series 22HP commercial V‑twin engine delivers strong torque and long‑term reliability
• 52in Velocity Plus™ fabricated cutter deck engineered for superior airflow and even discharge
• Tri‑plate deck construction increases rigidity and resists flex under heavy use
• Commercial hydrostatic drive system provides smooth, responsive zero‑turn control
• Foot‑operated deck lift with precise height adjustment for fast setup changes
• Cast‑iron spindle housings with tapered roller bearings for extended service life
• Wide stance and large drive tires enhance traction and hillside stability
• Ergonomic operator seat designed for long mowing sessions
• Built and assembled in the USA with commercial‑grade components
• Model number SPZ‑52H‑22FX included for accurate identification

Why It’s a Smart Pick

The Scag® Patriot Z 52 is ideal for professionals who want commercial durability without moving into a full flagship platform. Its Kawasaki FX engine, heavy‑duty Velocity Plus™ deck, and robust drivetrain make it well‑suited for daily mowing, larger properties, and demanding conditions. For crews and owners who prioritize cut quality, reliability, and long service life, the Patriot Z delivers proven Scag performance.

Description:

The Scag® SFC-21 Finish-Cut Walk-Behind mower is the compact machine you’ve always wanted—packing big productivity and versatility into a 21” wide platform. On the job or at home, the SFC-21 delivers a professional quality-of-cut that leaves behind a beautiful lawn, each and every time. Capable of 3-in-1 versatility (mulching, bagging and optional side discharging), it helps you tackle whatever challenges come your way with top-notch results.

Specifications:

• Engine: 7HP @ 3300 RPM, 4 cycle gas, OHV, air-cooled, single-cylinder, vertical shaft
• Transmission: GT MG 512 transmission, 3-speed
• Wheels/Tires: Drive: 10.5 x 3 / Front: 9 x 2.25
• Handle Bars: 1″ diameter, thick wall tubing, 3-position adjustable
• Safety Group: Handle actuated operator presence system
• Forward Speed: Up to 4.25 mph
• Cutting Width: 21 inches (53.34 cm)
• Cutting Height Adjustment: 1.5″ to 4.5″ in 0.5″ increments
• Cutter Blade: 0.1345 in. thick, milled edge, wear resistant

COMMERCIAL-GRADE FABRIC BAGS Scag’s 2-Bag Grass Catcher allows you to collect grass clippings and leaves, delivering a picture-perfect, groomed lawn quickly and conveniently on all Scag Liberty® Z, Freedom Z® and Patriot™ mowers. With a 7-bushel capacity and an 8″ discharge tube, this is a serious debris-catching system.

Features:

CONTOURED DISCHARGE BOOT ALLOWS SMOOTH FLOW OF CLIPPINGS The 2-Bag Grass Catcher boot is specially designed and contoured to provide excellent debris flow from the cutter deck into the 8" debris-handling tube. This design also helps to retain the speed of the clippings which enhances the bagging ability of the catcher system. DUAL, REAR-FACING EXHAUST PORTS AND METAL DEBRIS SCREEN The 2-Bag Grass Catcher hood features a durable, all-metal debris screen that resists damage from flying debris. The extra-large screen (25 1/2" x 15") filters out larger debris particles, keeping them in the bags while letting air escape. This airflow is essential to proper debris flow from the cutter deck into the bags. The screen is flat and is easily scraped clean. SPRING-ASSISTED HOOD-LIFT MECHANISM When it is time to remove the bags and dump the grass, the grass-catcher hood is conveniently held open by two heavy-duty springs. They keep the hood securely open for easy removal and reinstallation of the debris bags. A simple, center-mounted, single latch secures the hood closed while operating.

Description:

The Scag Tiger Cat II is a zero-turn mower designed for professional landscapers who demand a machine that's both powerful and maneuverable. It combines the strength of a tiger with the nimbleness of a cat, allowing you to tackle tough jobs in tight spaces with unmatched efficiency.

Built for Endurance:

• Tri-Plate Deck Tops: The nearly half-inch thick steel deck construction (almost half an inch!) ensures exceptional durability, built to withstand heavy-duty use.
• Superior Cut Quality: The Velocity Plus™ deck with a special front baffle chamber and anti-scalp rollers delivers a clean, professional cut while preventing damage to your turf.
• Easy Maintenance: Features like replaceable wear pads and easy access points simplify keeping your mower in top condition.

Power and Control at Your Fingertips:

• Engine Options: Choose from a variety of engine options to match your power needs.
• Hydro-Gear Dual Pump and Motor Drive System: Delivers smooth operation and precise control for effortless maneuvering.
• Foot-operated Parking Brake: Provides convenient control when stopping or dismounting the mower.

Additional Highlights:

• Zero-Turn Design: Enables sharp turns around obstacles, maximizing your productivity.
• Adjustable Cutting Height: Allows you to customize the cut for different grass types and conditions. (1" to 5" in 0.25-inch increments)
• Comfortable Operator Platform: The mid-back seat mounted on an operator-suspension platform reduces fatigue during long working hours.
• The Scag Tiger Cat II is ideal for professional landscapers who need a powerful and agile zero-turn mower to handle demanding workloads. Its combination of durability, cutting performance, maneuverability, and operator comfort makes it a top choice for getting the job done efficiently.

The Scag® Patriot Z 61 is a commercial‑grade zero‑turn mower built for high productivity, durability, and exceptional cut quality on large properties. Equipped with a powerful Kawasaki FX‑Series engine and Scag’s Velocity Plus™ cutter deck, it delivers superior airflow, clean discharge, and professional striping even in demanding mowing conditions. Designed for daily commercial use, this mower—identified as SPZ‑61H‑23FX—combines rugged construction with smooth, responsive handling to keep crews productive all day long.

Key Features

• Kawasaki® FX‑Series 23HP commercial V‑twin engine delivers strong torque and long‑term reliability
• 61in Velocity Plus™ fabricated cutter deck engineered for superior airflow and consistent cut quality
• Tri‑plate deck construction increases rigidity and resists flex under heavy workloads
• Commercial hydrostatic drive system provides smooth, responsive zero‑turn control
• Foot‑operated deck lift with precise cutting‑height adjustment for fast setup changes
• Cast‑iron spindle housings with tapered roller bearings for extended service life
• Wide stance and large drive tires improve traction, hillside stability, and control
• Ergonomic operator seat designed for comfort during extended mowing sessions
• Built and assembled in the USA with commercial‑grade components
• Model number SPZ‑61H‑23FX included for accurate identification

Why It’s a Smart Pick

The Scag® Patriot Z 61 is ideal for professional landscapers and property managers who need maximum productivity without stepping into Scag’s flagship platforms. Its wide 61in deck, commercial Kawasaki® FX engine, and heavy‑duty Velocity Plus™ construction make it well‑suited for large properties, municipal use, and daily mowing operations. For operators who demand durability, speed, and top‑tier cut quality, the Patriot Z 61 delivers proven Scag performance.

Description:

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.

Features:

Ogura PTO Clutch Brake

• Strong, Adjustable Clutch for Long Life: The Ogura GT1 PTO Clutch Brake delivers 74 ft. lb. of holding strength, ensuring excellent starting and stopping power for the cutter deck. It features an adjustable air gap for extended durability.

Deep, Fabricated, and Welded Cutter Decks

• Heavy-duty Hero Cutter Deck Design: The Liberty Z mower incorporates a deep, fabricated cutter deck that excels at handling high volumes of grass at increased speeds. The deck is designed for optimal quality-of-cut and is built to withstand rigorous use.
• Heavy-duty, Aluminum, Sealed Ball Bearing, Blade-Drive Spindles: Ensures reliable performance season after season.

High-Strength Steel Frame

• Solid Design for Years of Dependable Service: The main frame is constructed from tubular steel, providing unmatched strength and durability.

Low-Maintenance Mower Design

• More Uptime: The Liberty Z is designed with fewer grease points, enhancing operator convenience and ease-of-ownership.

Proven Transaxles

• Speeds Up to 7 MPH: Equipped with proven dual hydro transaxles (Tuff Torq TZ450, or Hydro-Gear ZT-2800 or ZT-3100 depending on the model), ensuring smooth and solid power delivery to the drive wheels.

Contoured, Bolstered, High-Back Seat

• Ride in Comfort: The ultra-comfortable seat is adjustable with tools, contoured for improved comfort, and features armrests. Armrests are standard on 48″, 52″, and 61″ models, with an optional kit available for 36″ and 42″ models.

Easy Foot-Pedal Deck Lift

• Easy Up, Easy Down: The foot-pedal cutter-deck lift is spring-assisted, making raising and lowering the cutter deck smooth and effortless.

Powerful and Efficient Engine Options

• Reliable Power, Up to 27 HP: Choose from a variety of proven air-cooled V-twin engine options, providing ample power to tackle a wide range of mowing tasks effectively.

Specification:

GENERAL

• Total Fuel Capacity: 5.5 gallons
• Drive Tires: 20″ x 10″-8″
• Caster Tires: 11″ x 6″-5″
• Seat: Padded with armrests, adjustment forward and back (tools required)
• DRIVE SYSTEM
• Drive System Type: Tuff Torq TZ450 Transaxle
• Pumps: Internal Pump: 10 cc
• Motors: Internal Motor: 10 cc (Tuff Torq)
• Forward Ground Speed: 7 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• DECK
• Cutting Width: 52″
• Type: Heavy-Duty Hero Cutter Deck
• Cutting Height: 1.5″ to 4.5″ in .25″ increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings
• Blade Engagement: Ogura GT1 (74 ft lb) – for 52″ Liberty Z
• Adjustable air-gap for extended life.

Description:

Heavy-duty hydraulic drive system includes dual 12cc Hydro-Gear hydraulic pumps and large capacity Parker wheel motors for reliable, zero turn maneuverability. Up to 12 MPH forward and 5 MPH reverse speeds keep productivity at a maximum. Ogura GT3.5 PTO clutch brake has 250 ft. lbs. of torque for easy blade engagements and solid holding power in heavy cutting conditions. Adjustable air gap ensures long component life. Compact mower size enables you to take the Tiger Cat II into tight places. The Tiger Cat II occupies less space on your trailer without sacrificing performance. Choose a 48″, 52″ or 61″ Velocity Plus™ cutter deck. Match that with a Kawasaki FX series , Kohler Command Pro, or Kohler EFI. Tri-Plate cutter deck top is incredibly strong. .485″ deck top thickness from three separate layers of steel (7ga., 10ga, and 11ga.) Heavy-duty, fully-welded tubular steel frame provides a solid foundation for years of reliable service; replaceable front caster wheel weldment. Torsion spring suspension seat adjusts to operator’s weight to provide superior comfort. Seat features full padding, forward/rearward adjustment, high back, adjustable armrests and adjustable back angle.

Description:

Re-Engineered and Better Than Ever Sure, it’s still easy to operate, still ready to conquer any terrain, and still built to last. But the new V-Ride™ II’s exceptional results, even greater stability and unmatched comfort leave no doubt: It’s a whole new ballgame. The V-Ride II is an ultra compact, agile, comfortable and stable stand-on mowing machine. It combines the speed and comfort of a rider with the space-saving convenience of a walk-behind mower.

Description:

Hydraulic power and simple design combine to make the SWZ the most efficient and easy-to-handle walk-behind you can buy. The SWZ has all the features Scag® mowers are famous for: tough, durable components for long life and heavy-duty cutter decks that deliver an unmatched cut.

Description:

The power of a tiger with the swiftness of a cat, the nimble Tiger Cat® II combines the best of both worlds. Making full use of its compact footprint and robust engine, this easily adjustable and extremely durable machine gets into, around and out of tight spaces quickly—putting you on the path toward increased profitability.

Description:

All business—even at home—the Freedom Z® is perfect for landscapers needing a machine that can go the distance or for the pro-at-home who owns a large-acreage lot. Commercial-quality through and through, this machine is comfortable anywhere the job needs to be done.

STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE

The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.

Specifications:

GENERAL

• Total Fuel Capacity: 6.5 gallons
• Drive Tires: 20″ x 10″-10″
• Caster Tires: 11″ x 6″-5″
• Seat: Padded with arm rests, adjustment forward and back (tools required)

DRIVE SYSTEM

• Drive System Type: Hydro-Gear ZT2800 Transaxle
• Pumps: Internal Pump - 10 cc
• Motors: Internal Motor - 16 cc
• Forward Ground Speed: 8 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand-activated lever

DECK

• Cutting Widths: Available in 48″ and 52″
• Type: Hero Cutter Deck
• Cutting Height: Adjustable from 1.5″ to 4.5″ in .25″ increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT1 (74 ft lb) Adjustable air-gap for extended life.

Product Dimensions

• 48″ Freedom Z
• Length: 73″
• Width (chute down): 60.5″
• Width (chute in transport position): 49″
• Height: 60″
• Weight: 745 lbs
• 52″ Freedom Z
• Length: 73″
• Width (chute down): 64.5″
• Width (chute in transport position): 53″
• Height: 60″
• Weight: 765 lbs

Description:

Sure, it's still easy to operate, still ready to conquer any terrain, and still built to last. But the new V-Ride™ II's exceptional results, even greater stability and unmatched comfort leave no doubt: It's a whole new ballgame. The V-Ride II is an ultra compact, agile, comfortable and stable stand-on mowing machine. It combines the speed and comfort of a rider with the space-saving convenience of a walk-behind mower. Despite its compact size, the V-Ride II boasts many full-sized features like dual hydraulic pump dual wheel motor drive system, coil-suspension platform, and a heavy-duty steel main frame. Pair a powerful Kawasaki FX, Kawasaki FS or Kohler EFI commercial-grade engine with a 36" Advantage™ or a 48", 52" or 61" Velocity Plus™ deck and you have an ideal combination of agility, power and performance.

Description:

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.

Features:

SOLID, FORGED ROTOR:

A one-piece, solid, forged rotor means no chance of internal parts separating. The rotors also have an even wall thickness around the coil which gives optimum flux distribution, maximizing torque.

HIGH-TEMPERATURE, LONG-LIFE GREASE:

All models include our special long-life grease which has shown a significant improvement in life over other standard high-temperature greases.

ADJUSTABLE AIR GAP:

When the rotor and armature have worn away, a simple adjustment can be made to bring the clutch back into specification.

Specifications:

Total Fuel Capacity

• 36" and 42" Models: 3.5 gallons
• 48", 52", and 61" Models: 5.5 gallons

Drive Tires

• 36" Model: 20" x 8"-10"
• 42", 48", and 52" Models: 20" x 10"-8"
• 61" Model: 20" x 10"-10"

Caster Tires

• 36" and 42" Models: 11" x 4"-5"
• 48", 52", and 61" Models: 11" x 6"-5"

Seat

• 48", 52", and 61" Models: Padded with arm rests, adjustment forward and back (tools required)
• 36" and 42" Models: Optional armrest kit is available

Drive System

Drive System Type

• 36" and 42" Models: Hydro-Gear ZT-2800 Transaxle
• 48" and 52" Models: Tuff Torq TZ450 Transaxle
• 61" Models: Hydro-Gear ZT3100 Transaxle

Pumps

• Internal Pump: 10 cc

Motors

• Internal Motor: 10cc (Tuff Torq)
• Internal Motor: 16 cc (Hydro-Gear)

Forward Ground Speed

• 7 mph

Reverse Ground Speed

• 5 mph

Parking Brake

• Hand lever

Deck

Cutting Widths

• 36", 42", 48", 52", and 61"

Type

• Heavy-Duty Hero Cutter Deck

Cutting Height

• 1.5" to 4.5" in .25" increments

Deck Lift

• Foot-operated pedal

Construction

• Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.

Spindles

• Aluminum housing with sealed ball bearings

Blade Engagement

• Ogura GT1 (74 ft lb) – (36", 42", 48", and 52" Models)
• Ogura GT2 (108 ft lb) – (61" Model)
• Adjustable air-gap for extended life

Description:

The all-new 48" Liberty Z with a 21 HP Kawasaki engine stands heads and tails above the crowd in power, durability and performance. This industry benchmark has been re-engineered to be as easy on the operator as it is efficient on tough jobs in the field. No matter how challenging the terrain and cutting conditions, the Turf Tiger II makes mowing a snap. From the heavy-duty,Tri-Plate Velocity Plus™ cutter decks to its extra strength double-tube steel frame to the dual 16cc hydraulic pumps and high-torque wheel motors, this cat is ready for action. The Turf Tiger II features the exclusive Command-Comfort Operator Station with adjustable 4-point iso-mounted suspension seat and Quick-Fit adjustable steering control levers to make your time spent in the driver’s seat more comfortable and more productive.

Description:

The power of a tiger with the swiftness of a cat, the nimble Tiger Cat® II combines the best of both worlds. Making full use of its compact footprint and robust engine, this easily adjustable and extremely durable machine gets into, around and out of tight spaces quickly—putting you on the path toward increased profitability. Features may include: 48", 52" OR 61" CUTTING WIDTH The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag’s ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing.

Description:

In your world, it pays to become more swift, agile and powerful. Make it a reality with the quick and precise Cheetah II™, a machine that devours jobs at a pace you’ve only dreamed of while delivering an unmatched quality-of-cut and incredibly smooth ride. With the Cheetah II, you’ll never be caught from behind.

Description:

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.

Description:

Scag Mower Parts are some of the toughest, long lasting in the industry. Looking for Scag SZL52-24KT Liberty Z Parts? Louisville Tractor has one of the largest inventories of Liberty Z Parts in the country. You will find blades, pulleys, clutches, tires, spindles, and many more parts to fit your SZL52-24KT Liberty Z. Need help finding the right parts, try using our free Scag SZL52-24KT Liberty Z Part Diagrams. You can count on Louisville Tractor to deliver high quality OEM and replacement parts.

Description:

The power of a tiger with the swiftness of a cat, the nimble Tiger Cat® II combines the best of both worlds. Making full use of its compact footprint and robust engine, this easily adjustable and extremely durable machine gets into, around and out of tight spaces quickly—putting you on the path toward increased profitability.

Features:

• TRI-PLATE DECK TOPS:
• Super-rigid Tri-Plate deck construction results in a nearly 1/2" thick (0.485") steel cutter deck top (most zero-turn rider models).
• FRONT BAFFLE CHAMBER:
• Special front baffle chamber allows the grass to be lifted up before the blade cuts it. No stragglers.
• WEAR PAD:
• Replaceable trim-side wear pad protects the deck and landscaping from scraping and impact damage.

Specifications:

Fuel Capacity

• Total Fuel Capacity: 9.5 gallons

Tires

• Drive Tires:
• 24" x 9.5"-12" (for 48" and 52" cutting widths)
• 24" x 12"-12" (for 61" cutting width)
• Caster Tires: 13" x 6.5"-6", flat-free

Seat

• Type: 4-point iso-mounted mid-back
• Mounting: Mounted on operator-suspension platform

Drive System

• Drive System Type: Dual Pump and Motor
• Pumps: Hydro-Gear 12 cc
• Motors: Parker 14.5 ci
• Forward Ground Speed: 12 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Foot-operated pedal

Deck

• Cutting Widths: 48", 52", and 61"
• Type: Velocity Plus™
• Cutting Height: 1" to 5" in 0.25" increments
• Deck Lift: Adjustable foot-operated pedal
• Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel, with reinforcement plates at cutter deck spindles.
• Spindles: Cast-iron housing with tapered roller bearings
• Blade Engagement: Ogura GT3.5 (250 ft lb), adjustable air-gap for extended life

Description:

Louisville Tractor offers a comprehensive selection of Scag mower parts, renowned for their durability and longevity in the industry. If you're in need of parts for the Scag SWZT48-15FS model, Louisville Tractor has you covered with one of the largest inventories of Hydro Walkbehind Parts in the country.

Their inventory includes a wide range of parts such as blades, pulleys, clutches, tires, spindles, and more, specifically tailored to fit the SWZT48-15FS model. If you're unsure about which parts you need, Louisville Tractor provides free Scag SWZT48-15FS Part Diagrams to assist you in finding the right components for your mower.

Rest assured, Louisville Tractor is committed to delivering high-quality OEM and replacement parts, ensuring that your Scag mower continues to operate at its best.

Description:

Sure, it's still easy to operate, still ready to conquer any terrain, and still built to last. But the new V-Ride II's exceptional results, even greater stability and unmatched comfort leave no doubt: It's a whole new ballgame.The V-Ride II is an ultra compact, agile, comfortable and stable stand-on mowing machine. It combines the speed and comfort of a rider with the space-saving convenience of a walk-behind mower. Despite its compact size, the V-Ride II boasts many full-sized features like dual hydraulic pump dual wheel motor drive system, coil-suspension platform, and a heavy-duty steel main frame. Pair a powerful Briggs Vanguard 37 HP commercial-grade engine with a 61" Velocity Plus deck and you have an ideal combination of agility, power and performance.This is truly the ultimate stand-on mower with excellent handling, stability and quality. No cut corners, no compromise, nothing but top quality construction and unmatched performance.

Description:

The SWZ walk-behind mower offers a winning combination of hydraulic power and a simple design, making it exceptionally efficient and easy to handle. It incorporates all the hallmark features that Scag® mowers are renowned for, including:

1. Tough and Durable Components: Built to last, the SWZ features tough and durable components that ensure long life and reliability, even in demanding conditions.
2. Heavy-Duty Cutter Decks: Equipped with heavy-duty cutter decks, the SWZ delivers an unmatched cut quality. These decks are designed to withstand rigorous use and provide consistently excellent cutting performance.

Overall, the SWZ walk-behind mower is a top choice for those seeking efficiency, ease of handling, durability, and superior cutting performance.

Description:

True Commercial-Grade. Incredible Value. This impressive zero-turn rider is designed with the needs of lawn care pros in mind. Delivering commercial-grade results at an incredible value, the Patriot will exceed your expectations and have your “competition” talking. The Patriot is equipped with a productive 52” or 61” cutter deck to leave behind a beautiful quality-of-cut. Its strong hydro drive system brings the power and keeps you moving at ground speeds of up to 10 mph (SPZ61), while large front caster tires and extra-large drive tires provide dependable traction, stability and a smooth ride. A new ultra-plush bolstered seat, large diameter steering handles, and rubber iso-mounted foot plate give the operator a comfortable ride. The Hydro-Gear ZT-3400 (61”) or ZT-3100 (52”) hydro transaxles deliver smooth drive power and have spin-on oil filters for easy maintenance. Two independent hydraulic transaxle units with charge pumps and all metal gears. A dual purpose foot pedal brake is standard equipment and makes parking easier than ever before. The Patriot 52" and 61" will handle your toughest commercial jobs and large estate properties with ease and comfort. All of that and it leaves behind a beautiful quality-of-cut your competition and neighbors will be jealous of. We invite you to learn more about the outstanding features of the Patriot and how it can save you time while delivering professional results. Contact your local Scag dealer today and see for yourself how the Scag Patriot stands in a class by itself, above the competition. Check out our social media page and our testimonials page to see what real Scag customers are saying about their Scag mowers.

Description:

Featuring a comfortable operator platform with first-class suspension that minimizes fatigue, the V-Ride II™ delivers a natural, intuitive and smooth riding position the entire day. With unrivaled performance, stability and durability, this machine helps keep you in tip-top condition to get the job done day after day, year after year.

Description:

True Commercial-Grade. Incredible Value. This impressive zero-turn rider is designed with the needs of lawn care pros in mind. Delivering commercial-grade results at an incredible value, the Patriot will exceed your expectations and have your “competition” talking. The Patriot is equipped with a productive 52” or 61” cutter deck to leave behind a beautiful quality-of-cut. Its strong hydro drive system brings the power and keeps you moving at ground speeds of up to 10 mph (SPZ61), while large front caster tires and extra-large drive tires provide dependable traction, stability and a smooth ride. A new ultra-plush bolstered seat, large diameter steering handles, and rubber iso-mounted foot plate give the operator a comfortable ride. The Hydro-Gear ZT-3400 (61”) or ZT-3100 (52”) hydro transaxles deliver smooth drive power and have spin-on oil filters for easy maintenance. Two independent hydraulic transaxle units with charge pumps and all metal gears. A dual purpose foot pedal brake is standard equipment and makes parking easier than ever before. The Patriot 52" and 61" will handle your toughest commercial jobs and large estate properties with ease and comfort. All of that and it leaves behind a beautiful quality-of-cut your competition and neighbors will be jealous of. We invite you to learn more about the outstanding features of the Patriot and how it can save you time while delivering professional results. Contact your local Scag dealer today and see for yourself how the Scag Patriot stands in a class by itself, above the competition. Check out our social media page and our testimonials page to see what real Scag customers are saying about their Scag mowers.

Description:

The Scag Turf Tiger II isn't just a mower, it's a statement of dominance. This zero-turn mower is designed for professional landscapers who need a machine that can handle anything nature throws at them.

Engineered to Conquer:

• Unmatched Durability: The Tri-Plate deck construction with a nearly half-inch thick steel top ensures the Turf Tiger II can withstand years of heavy use.
• Superior Productivity: Powerful Hydro-Gear drive systems and large cutting widths (52", 61", or 72") allow you to cover more ground in less time.
• Operator Comfort: The 4-point iso-mounted torsion-spring suspension seat keeps you comfortable throughout the workday.

Built to Last and Built to Perform:

• Engine Options: Choose from a variety of engine options, including gas, diesel, and LP, to find the perfect fit for your needs.
• Unmatched Cut Quality: The Velocity Plus™ Deck with a special front baffle chamber delivers a clean, professional cut, even at high mowing speeds.
• Easy Maintenance: Features like replaceable wear pads and easy-to-access grease points simplify maintenance.

Power and Control at Your Fingertips:

• Dual Pump and Motor Drive System: Delivers smooth operation and precise control for effortless maneuvering around obstacles.
• Adjustable Foot-operated Pedal Parking Brake with AUSCO Disc Brakes: Provides confident stopping power on any terrain.

The Scag Turf Tiger II is the ultimate zero-turn mower for professional landscapers who demand the best. It's a powerful, durable, and comfortable machine that will help you conquer even the toughest jobs and leave your competition in the dust.

Description:

Featuring a comfortable operator platform with first-class suspension that minimizes fatigue, the V-Ride II™ delivers a natural, intuitive and smooth riding position the entire day. With unrivaled performance, stability and durability, this machine helps keep you in tip-top condition to get the job done day after day, year after year.

Features:

TRI-PLATE DECK TOPS:

Super-rigid Tri-Plate deck construction results in a nearly 1/2" thick (0.485") steel cutter deck top (most zero-turn rider models).

FRONT BAFFLE CHAMBER:

Special front baffle chamber allows the grass to be lifted up before the blade cuts it. No stragglers.

WEAR PAD:

Replaceable trim-side wear pad protects the deck and landscaping from scraping and impact damage.

Specifications:

Fuel Capacity

• 32" Model: 5 gallons
• 36" Model: 6.75 gallons
• 48", 52", and 61" Models: 8 gallons

Tires

• Drive Tires:
• 32" Model: 20" x 6.5"-10"
• 36" Model: 20" x 8"-10"
• 48" and 52" Models: 24" x 9.5"-12"
• 61" Model: 24" x 12"-12"
• Caster Tires:
• 32" and 36" Models: 11" x 4"-5"
• 48" and 52" Models: 13" x 5"-6"
• 61" Model: 13" x 6.5"-6"

Seat

• Extra-large comfort cushion

Drive System

• Drive System Type: Dual Pump and Motor
• Pumps:
• 32" and 36" Models: Hydro-Gear 10 cc
• 48", 52", and 61" Models: Hydro-Gear 12 cc
• Motors:
• 32" and 36" Models: Parker 12 ci
• 48", 52", and 61" Models: Parker 14 ci
• Forward Ground Speed:
• 32" and 36" Models: 8.5 mph
• 48", 52", and 61" Models: 10.5 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever

Deck

• Cutting Widths: 32", 36", 48", 52", and 61"
• Type:
• 32" and 36" Models: Advantage
• 48", 52", and 61" Models: Velocity Plus™
• Cutting Height: 1.5" to 4.5" in 0.25" increments
• Deck Lift: Hand lever
• Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel, with reinforcement plates at cutter deck spindles.
• 32" Model: Dual-plate construction
• Spindles: Cast-iron housing with tapered roller bearings
• Blade Engagement:
• 32", 36", 48", and 52" Models: Ogura GT2.5 (150 ft lb)
• 61" Model: Ogura GT3.5 (250 ft lb) with adjustable air-gap for extended life

Description:

It’s time for you to rise to the top of the food chain and tame turf with the Turf Tiger II™, a machine that’s tougher than any job you can throw at it. Engineered for superior durability, productivity and comfort, the Turf Tiger II gives you the edge over whatever nature throws at you while leaving you ready to take on the next challenge.61" Velocity Plus' Cutter Deck, 40 HP Briggs Vanguard' BIG BLOCK' EFI – electronic fuel injection Features may include: Velocity Plus Cutter Decks 52", 61" OR 72" CUTTING WIDTH The envy of the industry, Velocity Plus' decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag’s ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing. Driveshaft-Driven Cutter Decks ANOTHER REASON THE TURF TIGER IS KING OF THE JUNGLE. A driveshaft connects the engine to the deck, eliminating the long belt drive and increasing cutting-height range. Heavy-Duty, Double-Tube Steel Main Frame SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE The Turf Tiger' is ultra-strong and built for long life. It has a wide mower stance and extra-low center of gravity for ultimate stability and a replaceable front caster-wheel weldment.

Description:

52" Velocity Plus Stand-On Lawn Mower w/ 37 hp Briggs Vanguard EFI EngineFeaturing a comfortable operator platform with first-class suspension that minimizes fatigue, the V-Ride II™ delivers a natural, intuitive and smooth riding position the entire day. With unrivaled performance, stability and durability, this machine helps keep you in tip-top condition to get the job done day after day, year after year.

Description:

The power of a tiger with the swiftness of a cat, the nimble Tiger Cat® II combines the best of both worlds. Making full use of its compact footprint and robust engine, this easily adjustable and extremely durable machine gets into, around and out of tight spaces quickly—putting you on the path toward increased profitability.

Description:

All business—even at home—the Freedom Z® is perfect for landscapers needing a machine that can go the distance or for the pro-at-home who owns a large-acreage lot. Commercial-quality through and through, this machine is comfortable anywhere the job needs to be done.

Features:

SOLID, FORGED ROTOR:

A one-piece, solid, forged rotor means no chance of internal parts separating. The rotors also have an even wall thickness around the coil which gives optimum flux distribution, maximizing torque.

HIGH-TEMPERATURE, LONG-LIFE GREASE:

All models include our special long-life grease which has shown a significant improvement in life over other standard high-temperature greases.

ADJUSTABLE AIR GAP:

When the rotor and armature have worn away, a simple adjustment can be made to bring the clutch back into specification.

Specifications:

General

• Total Fuel Capacity: 6.5 gallons
• Drive Tires: 20" x 10"-10"
• Caster Tires: 11" x 6"-5"
• Seat: Padded with arm rests, adjustment forward and back (tools required)
