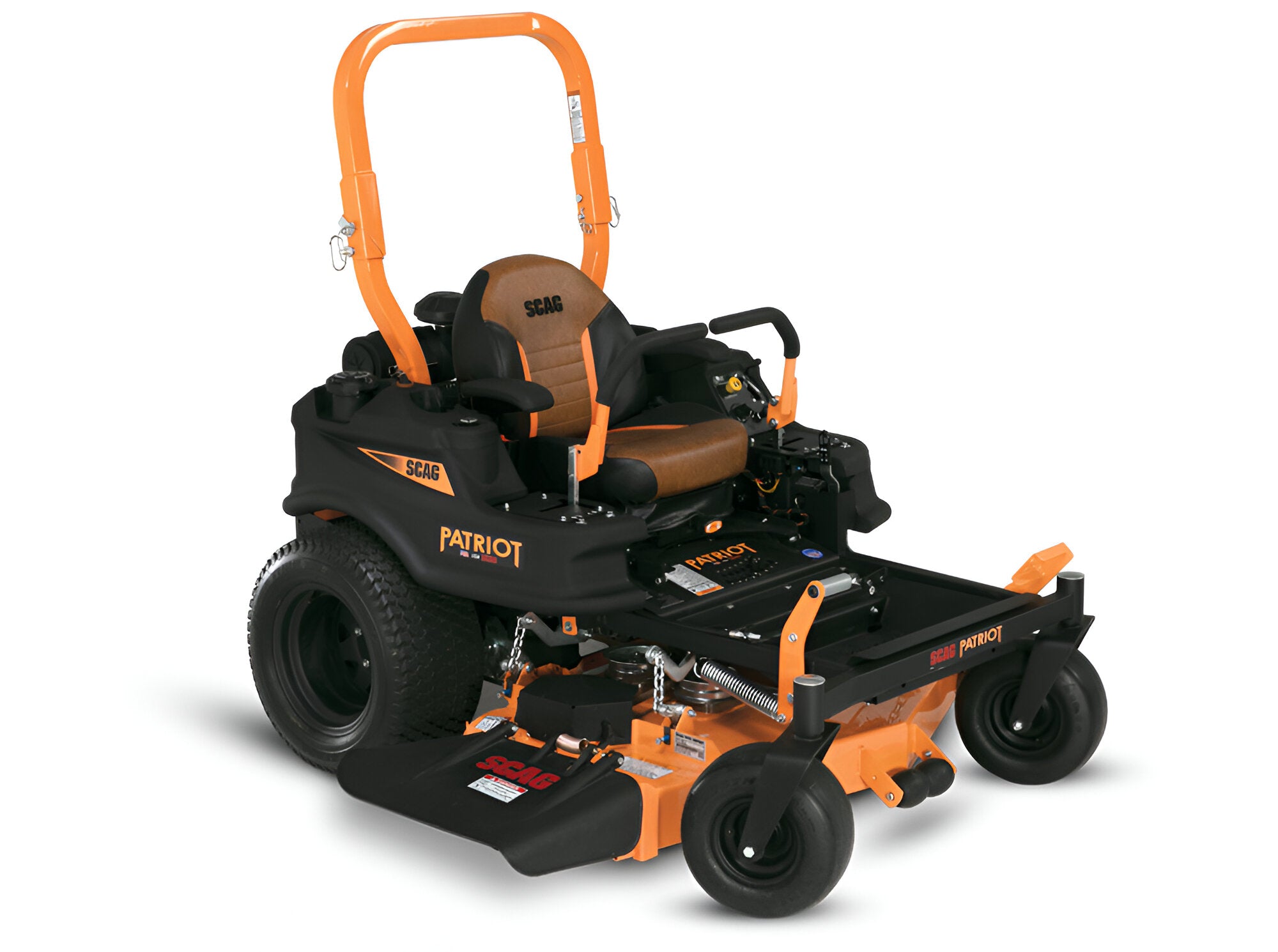

Scag Zero-Turn Riding Mowers SPZ52H-22FX

Scag Zero-Turn Riding Mowers SPZ52H-22FX

SKU: Scag Zero-Turn Riding Mowers SPZ52H-22FX
Categories : Lawn Mower
Out of Stock

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

Description:

Built to deliver low-maintenance and high-performance operation, the Patriot™ makes a statement; it says you’re a hardworking lawn care professional that believes in getting a job done right. In other words, this machine is built to make money and leave your customers—and their neighbors—saluting your handiwork.

Features:

  • SOLID, FORGED ROTOR: A one-piece, solid, forged rotor means no chance of internal parts separating. The rotors also have an even wall thickness around the coil which gives optimum flux distribution, maximizing torque.
  • HIGH-TEMPERATURE, LONG-LIFE GREASE: All models include our special long-life grease which has shown a significant improvement in life over other standard high-temperature greases.
  • ADJUSTABLE AIR GAP: When the rotor and armature have worn away, a simple adjustment can be made to bring the clutch back into specification.

Specifications:

General:

  • Total Fuel Capacity: 6.5 gallons
  • Drive Tires: 22" x 10.5"-12" (52") and 24" x 12"-12" (61")
  • Caster Tires: 13" x 6.5"-6"

Seat and Suspension:

  • Seat: Torsion-spring suspension seat

Drive System:

  • Drive System Type: Hydro-Gear ZT3100 Transaxle (52") and Hydro-Gear ZT3400 Transaxle (61")
  • Pumps: ZT3100 Internal Pump: 10 cc (52") and ZT3400 Internal Pump: 12 cc (61")
  • Motors: Internal Motor: 16 cc

Performance:

  • Forward Ground Speed: 8.5 mph (52") and 10 mph (61")
  • Reverse Ground Speed: 5 mph

Braking:

  • Parking Brake: Foot-operated pedal

Deck:

  • Cutting Widths: 52" and 61"
  • Type: Hero Cutter Deck
  • Cutting Height: 1.5" to 5" in .25" increments
  • Deck Lift: Foot-operated pedal

Construction:

  • Deck Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
  • Spindles: Aluminum housing with sealed ball bearings.

Blade Engagement:

  • Blade Engagement: Ogura GT2 (108 ft lb) Adjustable air-gap for extended life.
