Description:

The Wright ZXT features. With a ton of new innovative things like the hydro oil system, oil guard system and suspension platform.

Specification:

• Suspension seat
• Suspension platform
• 1,000 hour Hydro Oil System
• 500 hour oil guard system
• 40 HP Vanguard Engine
• Foot parking break
• Foot deck adjustment (raise and lower)
• Large tires

Description

The all-new Stander gives the operator the performance that Wright Standers are known for, in a much higher value package! Designed with the entry-level landscaper or part-time professional in mind, the Stander B is compact, maneuverable, easy to use, and low maintenance.

KEY FEATURES

• Ideal for the entry-level landscaper or part-time professional
• Basic & Productive.
• The all new Stander® B gives the operator the performance that Wright Standers are known for, in a much higher value package! Designed with the entry-level landscaper or part-time professional in mind, the Stander B is compact, maneuverable, easy to use, and low maintenance.

SPECIFICATIONS

• Operator Controls: Quad Lever
• Hour Meter: Digital
• Engine Model: FX600
• Engine HP: 19 hp
• Engine Start Type: Electric
• Max Acres Per Hour: 2.4 Acre/hr.
• Fuel Capacity: 5 gal.
• Forward Speed: 7 mph
• Reverse Speed: 3 mph
• Drive System Type: Hydro
• Drive System Transaxle: Hydro-Gear ZT3100
• Blade Length: 16.5 in.
• Deck Discharge: Side Discharge
• Deck Lift System: Quick-Cut
• Deck Size: 32 in.
• Deck Steel Gauge: 7 Gauge
• Deck Spindle: Aluminum
• Deck Style: Floating
• Deck Type: Floating-side discharge
• Deck Cut Height Max: 5 in.
• Deck Cut Height Min: 2 in.
• Length: 66.50 in.
• Width Deflector Down: 46.00 in.
• Width Deflector Up: 34.00 in.
• Weight: 703 lb.
• Caster Tire Type: Flat Free
• Caster Tire Diameter: 11.00 in.
• Caster Tire Width: 4.00 in.
• Caster Wheel Rim Diameter: 5.00 in.
• Rear Tire Ply: 4 ply
• Rear Rim Diameter: 10.00 in.
• Rear Tire Diameter: 20.00 in.
• Rear Tire Width: 6.50 in.

ENGINE

Horse Power 18.5 hp Engine TypeFS600E

GENERAL

Transmission Hydro-Gear ZT3100 Wheel Size 20.00 in. Fuel Capacity 5 gal.

DECK

Deck Size 32 in. Discharge Type Side Discharge

Description:

The STANDER LG is part of our new generation of fully optimized Standers. Built in the spirit of our original large-frame fixed deck Stander known for its ruggedness. Profoundly simple and solid, offering you the best combination of performance, versatility, compact footprint, and low operating cost. Ideal for fleet operations.

Features:

• New platform
• Trash bucket
• Upholstered pad
• The ZT-4400 transmission is the sweet spot in terms of size, cost, and heat stabilization.
• 360 degree viewing angles without sacrificing performance.
• “C” mounting makes it easier to swap out transmissions, much like the ZXL.
• Deck and belts
• Heavier front guard protects engine and muffler.
• Larger frame
• Large single gas tank allows for lots of run time at a better price.
• Sealed caster bearings and height adjustable caster yoke.
• New flat back Aero Core deck

Specifications:

• Model: Stander LG 52 FX850E
• SKU: WSLG52SFX8501B
• Category: Stand-On
• Family: Stander LG
• Class: Heavy-duty
• Generation: Gen 1

Controls

• Operator Control Type: Quad Lever Ball Bearing
• Hour Meter: Digital

Engine

• Vendor: Kawasaki
• Model: FX850E
• Start Type: Electric
• Horsepower: 27 hp

Productivity

• Forward Speed: 12.5 mph
• Reverse Speed: 8 mph
• Fuel Capacity: 11 gal
• Max Acres Per Hour: 6.57

Drive System

• Type: Hydro
• Transaxle: Hydro-Gear ZT4400

Deck

• Deck Size: 52 in
• Deck Type: Floating-side discharge
• Configuration: Aero Core
• Lift System: Quick-Cut
• Blade Quantity: 3
• Blade Length: 18 in
• Deck Min. Cut Height: 1.75 in
• Deck Max. Cut Height: 5.75 in
• Steel Gauge: 7 gauge
• Spindle Type: Ductile Iron

Dimensions

• Weight: 1080 lbs
• Length: 71.00 in
• Width w/ Deflector Down: 65.50 in
• Width w/ Deflector Up: 53.00 in

Caster Wheels

• Rim Diameter: 6.00 in
• Tire Diameter: 13.00 in
• Tire Width: 5.00 in

Rear Wheels

• Rim Diameter: 12.00 in
• Tire Diameter: 24.00 in
• Tire Width: 9.50 in

Description:

• Model: WSTX52SFX730E2B
• Shipping Weight: 1000lbs
• Manufactured by: Wright

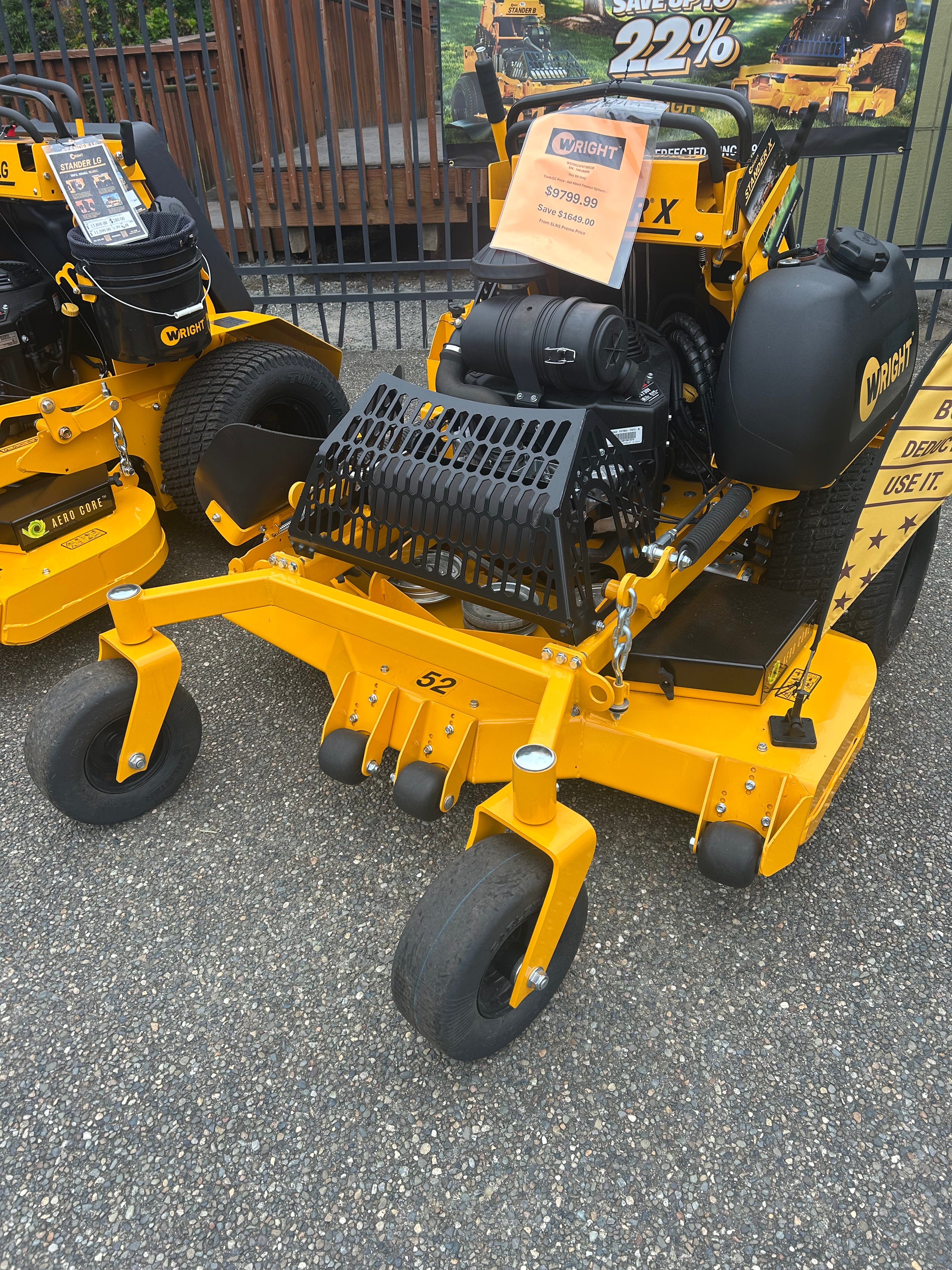

Specification:

• SKU WSTX52SFX730E2B
• NAME STANDER X 52 FX730
• CATEGORY STAND-ON
• FAMILY STANDER X
• CLASS HEAVY-DUTY
• GENERATION GEN 2
• OPERATOR CONTROL TYPE QUAD LEVER BALL BEARING
• HOUR METER DIGITAL
• VENDOR KAWASAKI
• MODEL FX730
• START TYPE ELECTRIC
• HORSEPOWER 23.5 HP
• FORWARD SPEED 9.5 MPH
• REVERSE SPEED 5.5 MPH
• FUEL CAPACITY 8 GAL
• ACRES PER HOUR 5.09
• TYPE HYDRO
• MOTOR DANFOSS 15 CU IN
• PUMP HYDRO-GEAR 12 CC WITH FANS
• TRANSAXLE NA
• TRANSMISSION NA
• DECK SIZE 52 IN
• DECK TYPE FLOATING-SIDE DISCHARGE
• CONFIGURATION AERO CORE
• LIFT SYSTEM QUICK-CUT
• BLADE QUANTITY 3
• BLADE LENGTH 18 IN
• DECK MIN CUT HEIGHT 1.5 IN
• DECK MAX CUT HEIGHT 5.5 IN
• STEEL GAUGE 7 GAUGE
• SPINDLE TYPE DUCTILE IRON
• WEIGHT 920 LB
• LENGTH 66.00 IN
• WIDTH DEFLECTOR DOWN 65.00 IN
• WIDTH DEFLECTOR UP 53.00 IN
• CASTER TIRE TYPE FLAT FREE
• CASTER TIRE DIAMETER 13.00 IN
• CASTER TIRE WIDTH 5.00 IN
• CASTER RIM DIAMETER 6.00 IN
• TIRE PLY 4 PLY
• RIM DIAMETER 8.00 IN
• TIRE DIAMETER 20.00 IN
• TIRE WIDTH 10.00 IN
