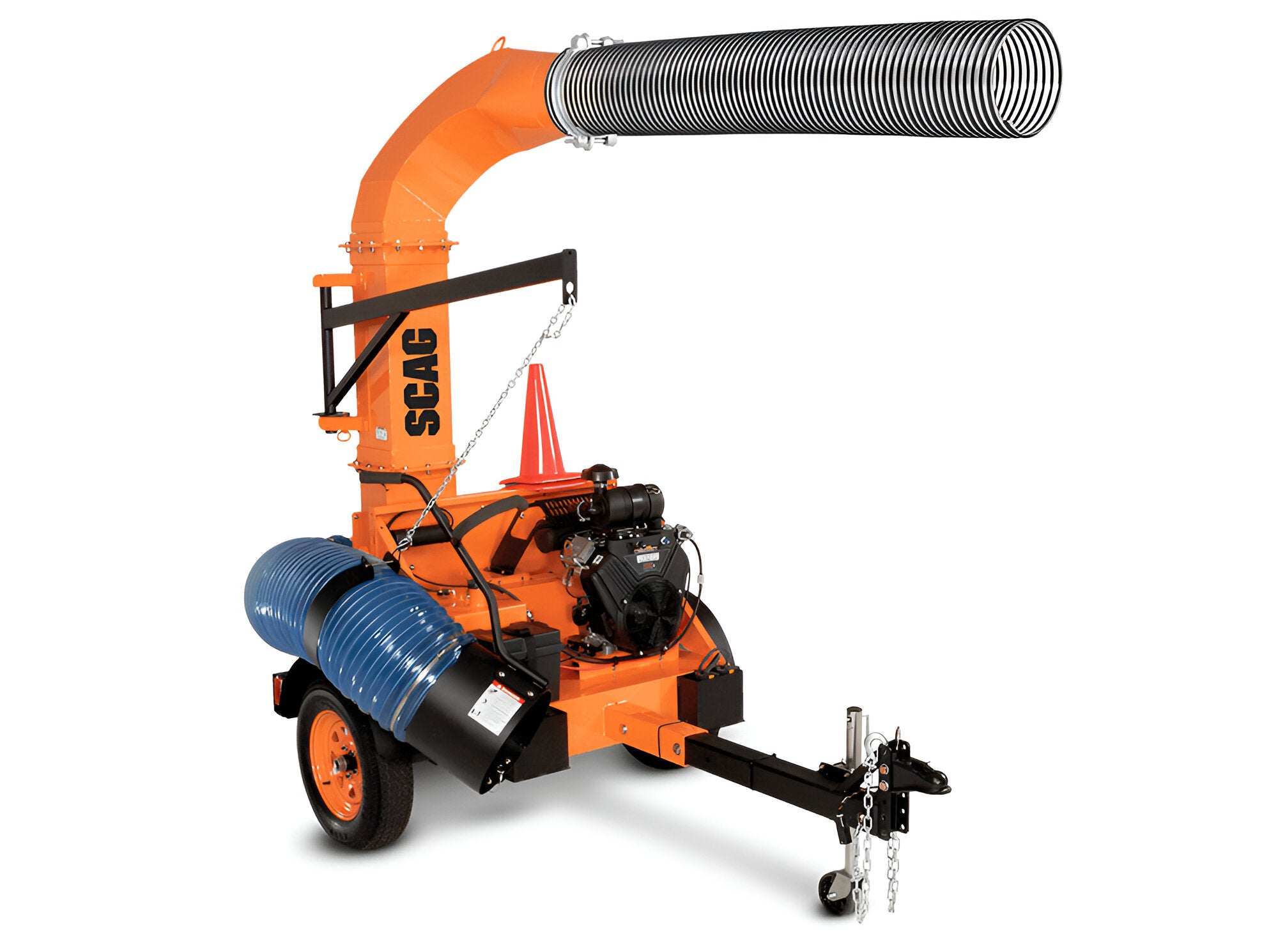

Scag TLB25-35BV Industrial Tow-Behind

Scag TLB25-35BV Industrial Tow-Behind

SKU: Scag TLB25-35BV Industrial Tow-Behind
Categories : Scag
Out of Stock

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

Description:

When the best demand the best, it’s time for the toughest and most powerful: the Scag® Industrial Tow-Behind Truck Loader. No matter the job—from landscaping and municipal operations to golf courses—this machine features the commercial-grade size and performance needed to get the job done. Leave the rest behind and work with the best.

Fabricated and Balanced, 25-Inch, 4-Blade Impeller

Within the unit’s 10.5″-wide housing is a welded-steel impeller with 1/2″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (35BV = up to 6,781 CFM; 37CH = up to 6,909 CFM; 49KBD = up to 7,318 CFM), debris-reducing design.

Specification:

TLB25-35BV

  • Engine: Briggs & Stratton® Vanguard™ BIG BLOCK™, V-Twin, electric start
  • HP: 35
  • Fuel Capacity / Tank: 8.5 gallons – plastic tank with built-in fuel gauge
  • CFM Output: 6,781
  • Frame Construction: All-steel, welded
  • Impeller Construction: 4-blade, 1/2″-thick blades, all-steel, welded
  • Impeller Mounting: Straight bore
  • Impeller Diameter / Width: 25″ / 9″
  • Blower Housing Construction: Removable back panel for easy impeller and wear plate access
  • Blower Housing Width: 10.5″
  • Blower Housing Wear Plates: Standard: 1/4″-steel, replaceable
  • Intake Hose Specifications: 84″ length, 16″-diameter intake hose, 0.045 blue polyurethane rubber, wire helix with wearstrip
  • Unit Mounting: Hitch: at least 10,000 lb rating
  • Discharge Tube: Clear thermoplastic, 12″ diameter, 84″ length
  • Throttle Control: Commercial-grade, all-steel mechanicals
  • Highway Ready: Yes – standard roadside package, including wheel chocks and cones
  • Axle: Heavy-duty Dexter Torflex® axle (3,500 lb)
  • Tires: 205 / 75 D15 highway tires with steel wheels
  • Trailer Width: 66.75″
  • Accessories: Light Kit, Brake Kit
  • Height: 121.25″
  • Weight: 1,700 lb
  • Warranty: 2-Year Commercial; 90-Day Rental
  • MSRP: $16,249
