Description:

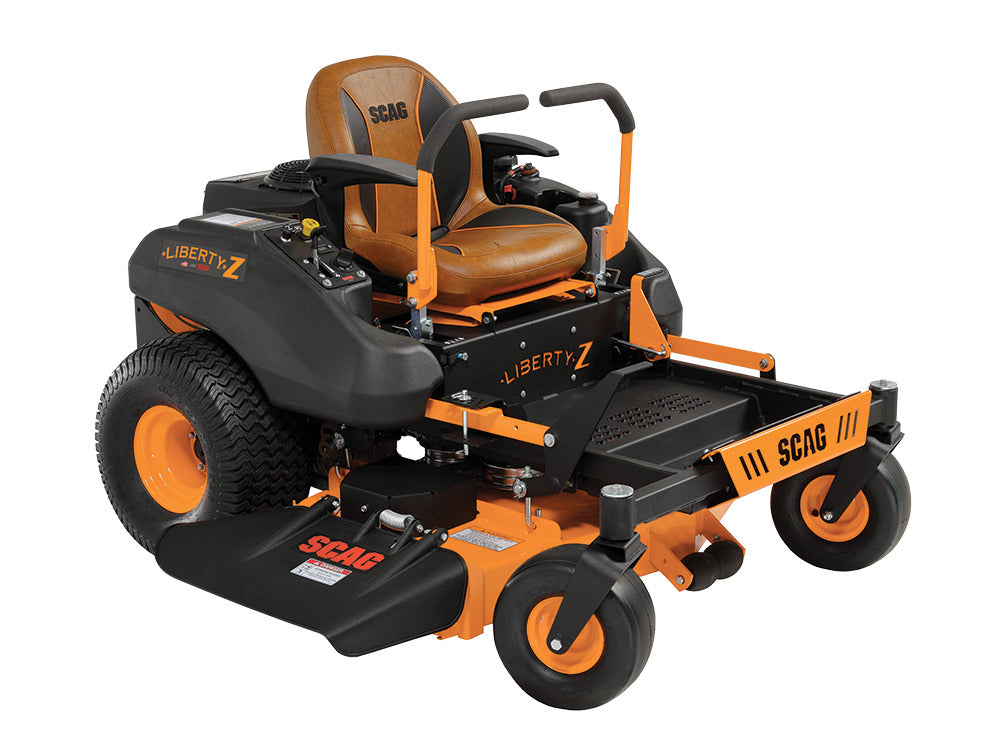

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.

STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE

The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.

Liberty Z Model Specifications

Product Dimensions:

• 36″ Liberty Z:
• Length: 68.5″
• Width (Chute Down): 48.5″
• Width (Chute in Transport Position): 37″
• Height: 40″
• Weight: 555 lbs
• 42″ Liberty Z:
• Length: 68.5″
• Width (Chute Down): 54.5″
• Width (Chute in Transport Position): 43″
• Height: 41″
• Weight: 595 lbs
• 48″ Liberty Z:
• Length: 67.5″
• Width (Chute Down): 60.5″
• Width (Chute in Transport Position): 49″
• Height: 41″
• Weight: 612 lbs
• 52″ Liberty Z:
• Length: 67.5″
• Width (Chute Down): 64.5″
• Width (Chute in Transport Position): 53″
• Height: 41″
• Weight: 646 lbs
• 61″ Liberty Z:
• Length: 73.5″
• Width (Chute Down): 73.5″
• Width (Chute in Transport Position): 62″
• Height: 41″
• Weight: 695 lbs

General:

• Total Fuel Capacity:
• 3.5 gallons: (36″ and 42″ models)
• 5.5 gallons: (48″, 52″, and 61″ models)
• Drive Tires:
• 20″ x 8″-10″: (36″ model)
• 20″ x 10″-8″: (42″, 48″, and 52″ models)
• 20″ x 10″-10″: (61″ model)
• Caster Tires:
• 11″ x 4″-5″: (36″ and 42″ models)
• 11″ x 6″-5″: (48″, 52″, and 61″ models)
• Seat:
• 48″, 52″, and 61″ models: Padded with arm rests, adjustment forward and back (tools required)
• 36″ and 42″ models: Optional armrest kit available

Drive System:

• Drive System Type:
• 36″ and 42″ models: Hydro-Gear ZT-2800 Transaxle
• 48″ and 52″ models: Tuff Torq TZ450 Transaxle
• 61″ model: Hydro-Gear ZT3100 Transaxle or Tuff Torq TZ450 Transaxle
• Pumps: Internal Pump: 10 cc
• Motors: Internal Motor: 10 cc (Tuff Torq), 16 cc (Hydro-Gear)
• Forward Ground Speed: 7 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever

Deck:

• Cutting Widths: 36″, 42″, 48″, 52″, and 61″
• Type: Heavy-Duty Hero Cutter Deck
• Cutting Height: 1.5″ to 4.5″ in 0.25″ increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings
• Blade Engagement:
• Ogura GT1 (74 ft lb): (36″, 42″, 48″, and 52″ models)
• Ogura GT2 (108 ft lb): (61″ model)
• Adjustable Air-Gap: For extended life
