Description:

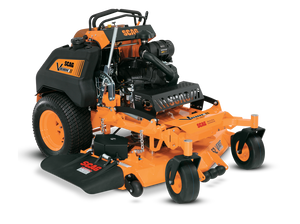

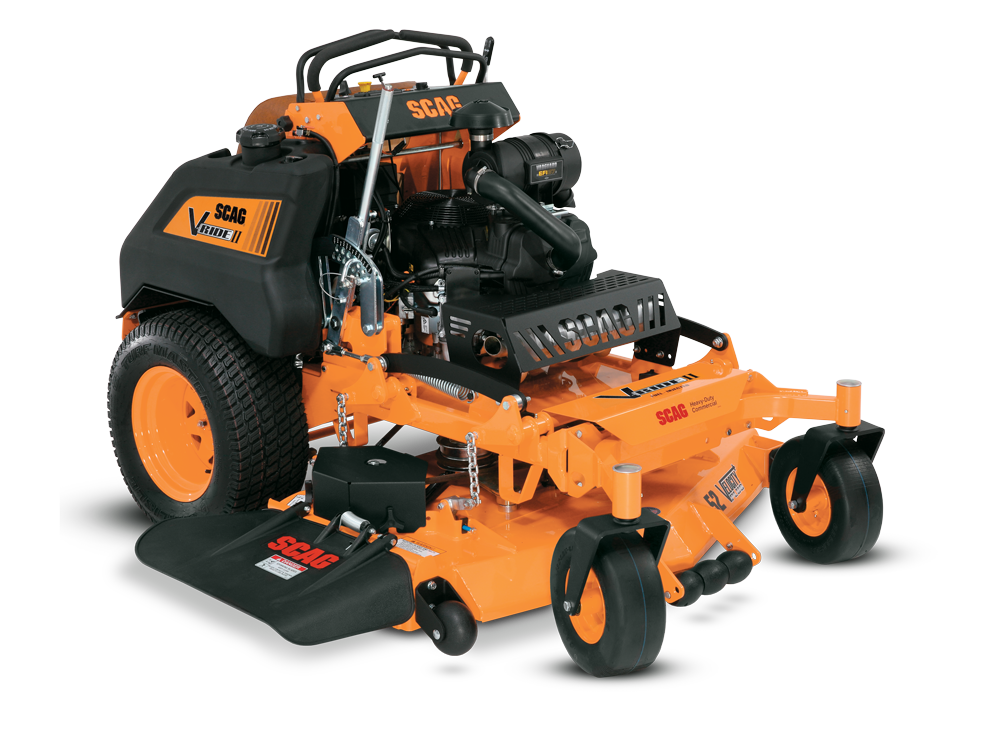

Featuring a comfortable operator platform with first-class suspension that minimizes fatigue, the V-Ride II™ delivers a natural, intuitive and smooth riding position the entire day. With unrivaled performance, stability and durability, this machine helps keep you in tip-top condition to get the job done day after day, year after year.

48", 52" OR 61" CUTTING WIDTH

The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge on 48″, 52″ and 61″ widths

Specification:

Model Description:

• Model: SVRII-61V-26CV-EFI
• Deck: 61" Velocity Plus™ Cutter Deck
• Engine: 26 HP Kohler® Command PRO® EFI (electronic fuel injection)

Product Dimensions:

• Length: 72.75 inches
• Tracking Width: 48 inches
• Width (Chute Down): 73.5 inches
• Width (Chute in Transport Position): 62.75 inches
• Height: 47.25 inches
• Weight: 1,127 - 1,173 lbs

General:

• Total Fuel Capacity:
• 5 gallons (32" model)
• 6.75 gallons (36" model)
• 8 gallons (48", 52", and 61" models)
• Drive Tires:
• 20" x 6.5"-10" (32" model)
• 20" x 8"-10" (36" model)
• 24" x 9.5"-12" (48" and 52" models)
• 24" x 12"-12" (61" model)
• Caster Tires:
• 11" x 4"-5" (32" and 36" models)
• 13" x 5"-6" (48" and 52" models)
• 13" x 6.5"-6" (61" model)
• Seat: Extra-large comfort cushion

Drive System:

• Drive System Type: Dual Pump and Motor
• Pumps:
• Hydro-Gear 10 cc (32" and 36" models)
• Hydro-Gear 12 cc (48", 52", and 61" models)
• Motors:
• Parker 12 ci (32" and 36" models)
• Parker 14 ci (48", 52", and 61" models)
• Forward Ground Speed:
• 8.5 mph (32" and 36" models)
• 10.5 mph (48", 52", and 61" models)
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever

Deck:

• Cutting Widths: 32", 36", 48", 52", and 61"
• Type:
• Advantage (32" and 36" models)
• Velocity Plus™ (48", 52", and 61" models)
• Cutting Height: 1.5" to 4.5" in 0.25" increments
• Deck Lift: Hand lever
• Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles. 32" model features dual-plate.
• Spindles: Cast-iron housing with tapered roller bearings
• Blade Engagement:
• Ogura GT2.5 (150 ft lb) for 32", 36", 48", and 52" models
• Ogura GT3.5 (250 ft lb) for 61" model
• Adjustable Air-Gap: For extended life
