Description:

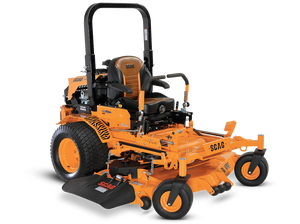

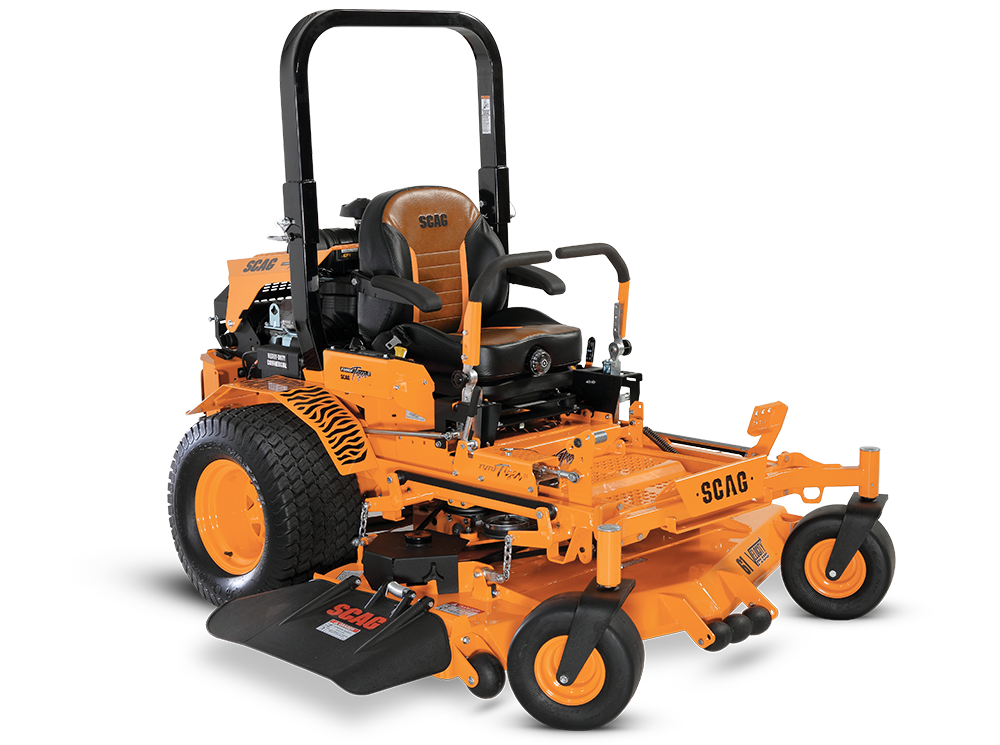

It’s time for you to rise to the top of the food chain and tame turf with the Turf Tiger II™, a machine that’s tougher than any job you can throw at it. Engineered for superior durability, productivity and comfort, the Turf Tiger II gives you the edge over whatever nature throws at you while leaving you ready to take on the next challenge.

52", 61" OR 72" CUTTING WIDTH

The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag’s ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing.

Product Dimensions:

• 52″ Turf Tiger Gas / Propane
• Length: 80.5″
• Width (chute down): 64.5″
• Width (chute in transport position): 53.75″
• Height (ROPS down): 46.5″
• Height (ROPS up): 68″
• Weight: 1,418 lbs (Gas) / 1,486 lbs (Propane)
• 61″ Turf Tiger Gas / Propane / Diesel
• Length: 85.5″ (Gas / Propane) / 88″ (Diesel)
• Width (chute down): 73.5″
• Width (chute in transport position): 62.75″
• Height (ROPS down): 46.5″ / 52.5″
• Height (ROPS up): 68″
• Weight: 1,496-1,538 lbs (Gas / Propane) / 1,606 lbs (Diesel) / 1,709 lbs (Diesel)
• 72″ Turf Tiger Gas / Diesel
• Length: 89.5″ (Gas) / 92″ (Diesel)
• Width (chute down): 83″
• Width (chute in transport position): 73.75″
• Height (ROPS down): 46.5″
• Height (ROPS up): 68″
• Weight: 1,556 lbs (Gas) / 1,739 lbs (Diesel)

GENERAL

• Total Fuel Capacity:
• 12 gallons (Gas/Diesel)
• 33.5 lb (LP)
• Drive Tires:
• 26″ x 12″-12″ (61″ and 72″)
• 26″ x 9.5″-12″ (52″)
• Caster Tires: 13″ x 6.5″-6″
• Seat: 4-point iso-mounted torsion-spring suspension seat

DRIVE SYSTEM

• Drive System Type: Dual Pump and Motor
• Pumps: Hydro-Gear: 16 cc
• Motors: Parker: 18 ci
• Forward Ground Speed:
• 12 mph (Gas/LP)
• 10 mph (Diesel)
• Reverse Ground Speed: 6 mph
• Parking Brake: Adjustable foot-operated pedal. AUSCO disc brakes.

DECK

• Cutting Widths: Available in 52″, 61″, and 72″
• Type: Velocity Plus™
• Cutting Height: Adjustable from 1.5″ to 6″ in .25″ increments
• Deck Lift: Adjustable foot-operated pedal
• Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles.
• Spindles: Cast-iron housing with tapered roller bearings.
