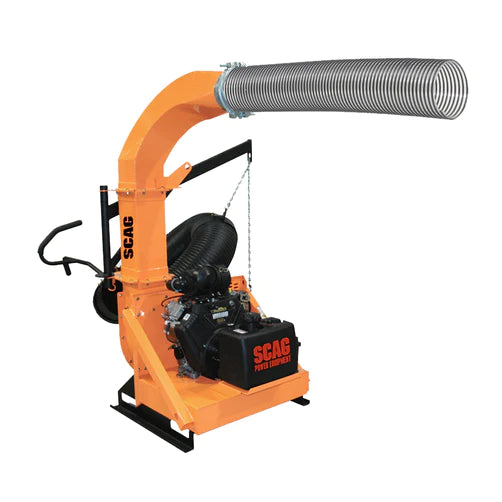

SCAG Skid-Mount Truck Loader TLS20W-29BV

SCAG Skid-Mount Truck Loader TLS20W-29BV

SKU: SCAG Skid-Mount Truck Loader TLS20W-29BV
Categories : Scag
Out of Stock

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

Scag’s Industrial Skid-Mount Truck Loader features four-inch skid risers with fork pockets have multiple install points to fit a wider variety of applications, or they can be completely removed. High-capacity, 5.5-gallon, plastic fuel tank with large filler neck for easy filling keeps you on the job. Built-in fuel gauge adds convenience and eliminates guesswork. 7.5″-wide housing is a welded-steel impeller with 3/8″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (up to 4,680 CFM), debris-reducing design. Powered by a 29 hp Vanguard® BIG BLOCK gasoline, V-twin engine with electric start. 1/4″-thick, bolt-in, replaceable wear liner extends service life. Removable rear-housing cover allows easy access to impeller and wear plates. Transport lock safely secures the boom arm and hose when not in use; nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation. Quick-detach hose also allows for quick and easy transport, storage and cleaning. 12" Steel Intake Nozzle is beveled to make debris pickup easy. Padded, large-diameter handle is designed for increased leverage and easy maneuverability.


Features

  • Powerful 29 hp Vanguard commercial-grade engine with heavy-duty air filtration system for extended engine life
  • Heavy-duty welded steel engine platform / skid mount for long, reliable unit life
  • 3/8" thick , 4-blade, welded steel impeller, dynamically balanced, high-CFM, debris reducing design
  • Tapered impeller hub standard
  • 10 gauge welded steel blower housing
  • 1/4", serviceable, steel blower housing wear plates are standard equipment
  • 12" diameter intake hose, .045 black thermoplastic rubber, wire helix with wearstrip. Length 120".
  • Quick-detach feature allows the intake hose to be removed from the blower housing for storage, transport or cleaning. No tools required.
  • 16 gauge, angle-cut intake nozzle with 7-gauge reinforcement plate at handle mount
  • Ergonomic, ambidextrous, one or two-handed intake handle with thick, comfort foam grip
  • Easy rear access to the impeller and the wear plates for cleaning and servicing
  • All steel, welded boom arm features Igis bearing for smooth movement
  • Boom features a transport position with spring-loaded locking pin that keeps the boom secure during transport
  • Hose support chain is easily height adjustable, without tools, for quick hose height changes
  • Intake nozzle can easily be secured to the trailer for transport with an innovative transport pin system
  • 5.5 gallon fuel tank with built-in fuel gauge
  • 8" discharge tube for better debris dispersal; heavy-duty clamp secures the flexible discharge pipe to the loader
  • Remote engine oil drain for easy and clean maintenance
  • Optional Truck Loader Halogen light kit available (part number: 9602)
  • 50 state emissions compliant


Specifications

Fuel Capacity / Tank5.5 gallons – plastic tank with built-in fuel gauge CFM Output4,680Frame Construction All-steel, welded Impeller Construction4-blade, 3/8"-thick blades, all-steel, welded Impeller Mounting Tapered locking hub Impeller Diameter / Width20" / 6.5"Blower Housing Construction Removable back panel for easy impeller and wear plate access Blower Housing Width7.5"Blower Housing Wear Plates Standard: 1/4"-steel, replaceable Hose Specifications120" length, 12"-diameter intake hose, 0.045 black thermoplastic rubber, wire helix with wearstrip Unit Mounting4" steel skid risers Discharge Tube Clear thermoplastic, 8" diameter Throttle Control Commercial-grade, all-steel mechanicals, plastic debris coverHeight75" (without skid mount attached)Weight675 lb
